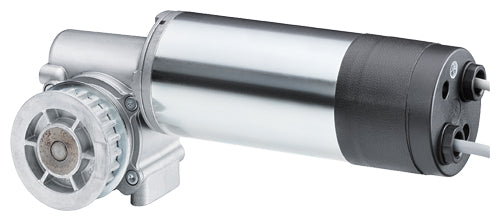

SIDOOR M3 R geared motor, Pinion, right max. 180kg door weight, Cable length 1.5 m, 30VDC, -20°C to +50°C
Product Type: Industrial Automation Component
General
| Article number |
6FB1103-0AT11-4MB0 |
General information
| Product type designation |
M3 R |
Supply voltage
Input current
| Operational current (rated value) |
4 A |
Power
Mechanical data
| Torque of the rotary operating mechanism (rated value) |
3 N·m |
| Speed, max. |
0.65 m/s |
| Gear ratio |
15 |
| Weight of door, max. |
180 kg |
IP degree of protection
| ● of the motor |
IP54 |
| ● of the gear unit |
IP40 |
Standards, approvals, certificates
| CE mark |
Yes |
| UL approval |
Yes |
| EAC (formerly Gost-R) |
Yes |
| TÜV Inspectorate approval |
Yes |
| China RoHS compliance |
Yes |
Ambient temperature during operation
| ● min. |
-20 °C |
| ● max. |
50 °C |
Ambient temperature during storage/transportation
| ● Storage, min. |
-40 °C |
| ● Storage, max. |
85 °C |
Dimensions
| Height of motor |
98 mm |
| Length of motor |
236 mm |
| Diameter of motor |
63 mm |
| Width of gear unit, including drive pinion |
85 mm |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| Declaration of Conformity |
Yes |
| Miscellaneous |
Yes |
| UK Declaration of Conformity |
Yes |
| TUEV |
Yes |
| China RoHS |
Yes |
| KC |
Yes |
| RCM |
Yes |
other
| Confirmation |
Yes |
| last modified: |
5/7/2025 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
