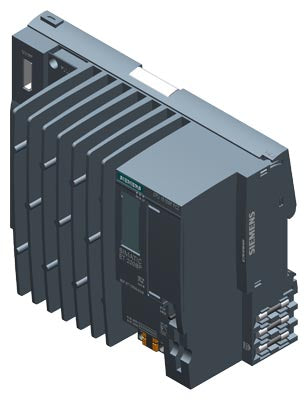

SIMATIC ET 200SP Open Controller, CPU 1515SP PC2, spare part, 8 GB RAM, without CFast Interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET, 1x 10/100/1000 Mbit/s Ethernet, 2x USB 3.0; 2x USB 2.0, 1x display port,
Product Type: Industrial Automation Component
General
| Article number |
6ES7677-2DB40-0AA0 |
General information
| Product type designation |
CPU 1515SP PC2 |
| HW functional status |
FS01 |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V15 with HSP 269 |
Installed software
| ● Visualization |
No |
| ● Control |
No |
Configuration control
Control elements
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Mains buffering
| ● Mains/voltage failure stored energy time |
5 ms |
Input current
| Current consumption (rated value) |
1.8 A; Full processor load, incl. ET 200SP modules and using USB |
| Current consumption (in no-load operation), typ. |
0.5 A |
| Current consumption, max. |
2.9 A |
| I²t |
0.426 A²·s; with starting current inrush |
Power
| Active power input, max. |
43 W; incl. ET 200SP modules and using USB |
| Infeed power to the backplane bus |
8.75 W |
Power loss
Storage
| Type of memory |
DDR3L |
| Main memory |
8 GB RAM |
| CFast memory card |
No |
| SIMATIC memory card required |
No |
Hardware configuration
| Integrated power supply |
Yes |
Number of DP masters
Rack
| ● Modules per rack, max. |
64; CPU + 64 modules + server module (mounting width max. 1 m) |
Clock
| ● Type |
Hardware clock |
| ● Backup time |
6 wk; At 40 °C ambient temperature, typically |
| ● Deviation per day, max. |
10 s; Typ.: 2 s |
Interfaces
| Number of industrial Ethernet interfaces |
2 |
| Number of PROFINET interfaces |
1; X1 via BusAdapter BA 2x RJ45 |
| Number of PROFIBUS interfaces |
1; Via CM DP module |
| Number of RS 485 interfaces |
1; Via CM DP module |
| Number of USB interfaces |
4; 2x USB 2.0, 2x USB 3.0 on front side |
Video interfaces
| ● Graphics interface |
1x DisplayPort |
Interface types
| ● RJ 45 (Ethernet) |
Yes; Via BusAdapter BA 2x RJ45 |
| — Transmission rate, max. |
100 Mbit/s |
| — Industrial Ethernet status LED |
Yes |
| ● Number of ports |
2 |
| ● integrated switch |
Yes |
| ● RJ 45 (Ethernet) |
Yes; Integrated |
| — Transmission rate, max. |
1 000 Mbit/s |
| — Industrial Ethernet status LED |
No |
| ● Number of ports |
1 |
● TCP/IP
| — Data length, max. |
64 kbyte |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
432 kg |
| — global warming potential, (during production) [CO2 eq] |
73.8 kg |
| — global warming potential, (during operation) [CO2 eq] |
365 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-6.71 kg |
Ambient temperature during operation
| ● min. |
-20 °C |
| ● max. |
Up to 60 °C with max. 32 ET 200SP modules; up to 55 °C with max. 64 ET 200SP modules |
| ● horizontal installation, min. |
-20 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-20 °C |
| ● vertical installation, max. |
50 °C; With max. 32 ET 200SP modules |
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
70 °C |
Peripherals/Options
| SD card |
Optionally for additional mass storage |
Dimensions
| Width |
160 mm |
| Height |
117 mm |
| Depth |
75 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| Miscellaneous |
Yes |
| UL |
Yes |
| Miscellaneous |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
For use in hazardous locations
| IECEx |
Yes |
| UL |
Yes |
| CCC-Ex |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| Miscellaneous |
Yes |
| IECEx |
Yes |
| Type Examination Certificate |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| last modified: |
10/9/2024 |
