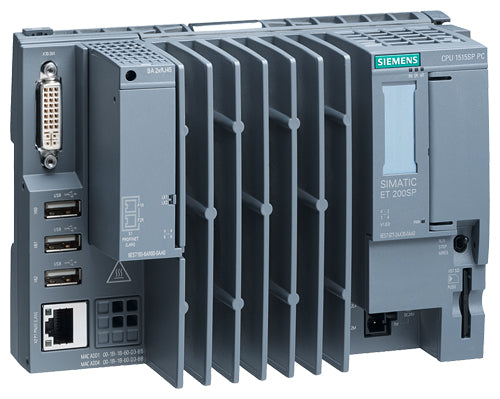

SIMATIC ET 200SP Open Controllers, CPU 1515SP PC. spare part, 4 GB RAM, without CFast, Interfaces: 1x slot CFAST, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET 1x 10/100/1000 Mbit/s Ethernet 3x USB, 1x DVI-I graphics card connection
Product Type: Industrial Automation Component
General
| Article number |
6ES7677-2AA40-0AA0 |
General information
| Product type designation |
CPU 1515SP PC |
| HW functional status |
FS03 |
Installed software
| ● Visualization |
No |
| ● Control |
No |
Control elements
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Mains buffering
| ● Mains/voltage failure stored energy time |
5 ms |
Input current
| Current consumption (rated value) |
1.5 A; Full processor load, incl. ET 200SP modules and using USB |
| Current consumption (in no-load operation), typ. |
0.6 A |
| Inrush current, max. |
4.7 A; Rated value |
Power
| Active power input, max. |
36 W; incl. ET 200SP modules and using USB |
| Infeed power to the backplane bus |
8.75 W |
Power loss
| Power loss, typ. |
15 W; without ET 200SP modules and without using USB |
Processor
| Processor type |
Dual-Core 1 GHz, AMD G Series APU T40E |
Storage
| Type of memory |
DDR3-SDRAM |
| Main memory |
4 GB RAM |
| CFast memory card |
No |
Hardware configuration
| Integrated power supply |
Yes |
Rack
| ● Modules per rack, max. |
64; CPU + 64 modules + server module (mounting width max. 1 m) |
| ● Number of lines, max. |
1 |
Clock
| ● Type |
Hardware clock |
| ● Hardware clock (real-time) |
Yes; Resolution: 1 s |
| ● Backup time |
6 wk; At 40 °C ambient temperature, typically |
| ● Deviation per day, max. |
10 s; Typ.: 2 s |
Interfaces
| Number of industrial Ethernet interfaces |
1 |
| Number of PROFINET interfaces |
1 |
| Number of RS 485 interfaces |
1; Via CM DP module |
| Number of USB interfaces |
3; 3x USB 2.0 on the front, 500 mA each - of which 2x 500 mA and 1x 100 mA simultaneously |
| Number of SD card slots |
1 |
Video interfaces
| ● Graphics interface |
1x DVI-I |
1. Interface
| Interface type |
PROFINET |
| automatic detection of transmission rate |
Yes |
| Autonegotiation |
Yes |
| Autocrossing |
Yes |
Interface types
| ● RJ 45 (Ethernet) |
Yes; Via BusAdapter BA 2x RJ45 |
| — Transmission rate, max. |
100 Mbit/s |
| — Industrial Ethernet status LED |
Yes |
| ● Number of ports |
2 |
| ● integrated switch |
Yes |
| ● RJ 45 (Ethernet) |
Yes; Integrated |
| — Transmission rate, max. |
1 000 Mbit/s |
| — Industrial Ethernet status LED |
No |
| ● Number of ports |
1 |
2. Interface
| Interface type |
Integrated Ethernet interface |
| automatic detection of transmission rate |
Yes |
| Autonegotiation |
Yes |
| Autocrossing |
Yes |
RS 485
| ● Transmission rate, max. |
12 Mbit/s |
● TCP/IP
| — Data length, max. |
64 kbyte |
Standards, approvals, certificates
| CE mark |
Yes |
| CSA approval |
Yes |
| cULus |
Yes |
| FM approval |
Yes |
| RCM (formerly C-TICK) |
Yes |
Ambient temperature during operation
| ● min. |
0 °C |
| ● max. |
Up to 60 °C with max. 32 ET 200SP modules and 3x 100 mA USB load; up to 55 °C with max. 64 ET 200SP modules and 2x max. 500 mA and 1x max. 100 mA USB load |
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
0 °C |
| ● vertical installation, max. |
50 °C; With max. 32 ET 200SP modules and 3x 100 mA USB load |
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
70 °C |
Vibrations
| ● Operation, tested according to IEC 60068-2-6 |
Yes |
| ● Transport, tested acc. to IEC 60068-2-6 |
Yes |
Shock testing
| ● tested in accordance with IEC 60068-2-6 |
Yes |
| ● tested according to IEC 60068-2-27 |
Yes |
| ● tested according to IEC 60068-2-29 |
Yes |
| ● Storage/transport, tested acc. to IEC 60068-2-27 |
Yes |
Peripherals/Options
| SD card |
Optionally for additional mass storage |
Dimensions
| Width |
160 mm |
| Height |
117 mm |
| Depth |
75 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| Miscellaneous |
Yes |
| China RoHS |
Yes |
For use in hazardous locations
| UL |
Yes |
| CCC-Ex |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| Type Examination Certificate |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| RMRS (Russian Maritime Register) |
Yes |
