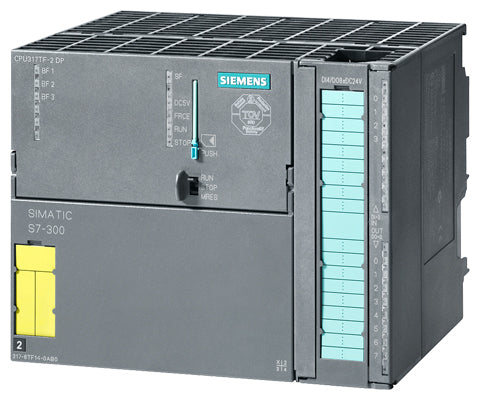

Spare part SIMATIC S7-300, CPU 317TF-2 DP, Central processing unit for PLC, Technology and safety tasks, 1.5 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface DP (drive), Integr. I/O for technology Front connector (1x 40-pole) and Micro Memory Card 8 MB required

Product Type: Industrial Automation Component

General

Article number

6ES7317-6TF14-0AB0

General information

Product type designation	CPU 317TF-2 DP
HW functional status	01
Firmware version	CPU: V2.7, integrated technology: V4.1.5

Engineering with

● Programming package

STEP 7 V5.4 SP5 or higher, S7-Technology V4.2 or higher, Distributed Safety V5.4 SP5 or higher, S7 F Configuration Pack V5.5 SP7 or higher

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
external protection for power supply lines (recommendation)	2 A min.

Load voltage L+

● Rated value (DC)	24 V
● Reverse polarity protection	Yes

Digital outputs

— Rated value (DC)	24 V; 2L+
— Reverse polarity protection	No; 2L+
Number of digital outputs	8
● of which high-speed outputs	8
Functions	for technology functions, e.g. high-speed cam switch signals
Short-circuit protection	Yes
● Response threshold, typ.	1 A
Limitation of inductive shutdown voltage to	48 V
Controlling a digital input	No

Input current

Current consumption (in no-load operation), typ.	250 mA
Inrush current, typ.	2.5 A
I²t	1 A²·s
● for signal "1", typ.	7 mA

Power loss

Power loss, typ.

6 W

Work memory

● Integrated	1 536 kbyte
● expandable	No

Load memory

● Plug-in (MMC)	Yes
● Plug-in (MMC), max.	8 Mbyte
● Data management on MMC (after last programming), min.	10 a

Backup

● present	Yes; Guaranteed by MMC (maintenance-free)
● Without battery	Yes; Program and data

CPU processing times

for bit operations, typ.	0.05 µs
for bit operations, max.	0.05 µs
for word operations, typ.	0.2 µs
for fixed point arithmetic, typ.	0.2 µs
for floating point arithmetic, typ.	1 µs

CPU-blocks

Number of blocks (total)	2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC industrial.
● Number, max.	2 047; Number band: 1 to 2047
● Size, max.	64 kbyte
● Number, max.	2 048; Number range: 0 to 2047
● Size, max.	64 kbyte
● Number, max.	2 048; Number range: 0 to 2047
● Size, max.	64 kbyte
● Number, max.	see instruction list
● Size, max.	64 kbyte
● Number of free cycle OBs	1; OB 1
● Number of time alarm OBs	1; OB 10
● Number of delay alarm OBs	2; OB 20, 21
● Number of cyclic interrupt OBs	4; OB 32, 33, 34, 35
● Number of process alarm OBs	1; OB 40
● Number of DPV1 alarm OBs	3; OB 55, 56, 57
● Number of isochronous mode OBs	1; OB 61
● Number of technology synchronous alarm OBs	1; OB 65
● Number of startup OBs	1; OB 100
● Number of asynchronous error OBs	5; OB 80, 82, 85, 86, 87
● Number of synchronous error OBs	2; OB 121, 122

Nesting depth

● per priority class	16
● additional within an error OB	4

S7 counter

● Number

512; Number range: 0 to 511

Retentivity

— adjustable	Yes
— preset	8 (from Z 0 to Z 7)
— adjustable	Yes
— preset	No retentivity

Counting range

— can be set	Yes
— lower limit	0
— upper limit	999

IEC counter

● present	Yes
● Type	SFB
● Number	Unlimited (limited only by RAM capacity)

S7 timer

● Number

512; Number range: 0 to 511

Time range

— lower limit	10 ms
— upper limit	9 990 s

IEC timer

● present	Yes
● Type	SFB
● Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.

256 kbyte

Flag

● Size, max.	4 096 byte
● Retentivity available	Yes; From MB 0 to MB 4 095
● Retentivity preset	MB 0 to MB 15
● Number of clock memories	8; 1 memory byte

Data blocks

● Retentivity adjustable	Yes; via non-retain property on DB
● Retentivity preset	Yes

Local data

● per priority class, max.

1 024 byte

I/O address area

● Inputs	8 192 byte
● Outputs	8 192 byte

of which distributed

— Inputs	8 192 byte
— Outputs	8 192 byte

Process image

● Inputs, adjustable	2 048 byte
● Outputs, adjustable	2 048 byte
● Inputs, default	1 024 byte
● Outputs, default	1 024 byte

Subprocess images

● Number of subprocess images, max.

Digital channels

● Inputs	65 536
— of which central	512
● Outputs	65 536
— of which central	512

Analog channels

● Inputs	4 096
— of which central	64
● Outputs	4 096
— of which central	64

Hardware configuration

Number of expansion units, max.

Number of DP masters

● Integrated	2; 1 DP and 1 DP (drive)
● Via CP	2; for DP

Number of operable FMs and CPs (recommended)

● FM	8
● CP, PtP	8
● CP, LAN	8

Rack

● Racks, max.	1
● Modules per rack, max.	8

Clock

● Hardware clock (real-time)	Yes
● retentive and synchronizable	Yes
● Backup time	6 wk; At 40 °C ambient temperature
● Deviation per day, max.	10 s
● Behavior of the clock following POWER-ON	Clock continues running after POWER OFF
● Behavior of the clock following expiry of backup period	the clock continues at the time of day it had when power was switched off

Operating hours counter

● Number	4
● Number/Number range	0 to 3
● Range of values	0 to 2^31 hours (when using SFC 101)
● Granularity	1 h
● retentive	Yes; Must be restarted at each restart

Clock synchronization

● supported	Yes
● to MPI, master	Yes
● on MPI, device	Yes
● to DP, master	Yes
● on DP, device	Yes; Only time-of-day slave
● in AS, master	Yes
● in AS, device	Yes

Digital inputs

Number of digital inputs	4
● of which inputs usable for technological functions	4
Input characteristic curve in accordance with IEC 61131, type 1	Yes

horizontal installation

— up to 40 °C, max.	4
— up to 60 °C, max.	4
— up to 40 °C, max.	4 A
— up to 60 °C, max.	3 A

vertical installation

— up to 40 °C, max.

Input voltage

● Rated value (DC)	24 V
● for signal "0"	-3 to +5V
● for signal "1"	+15 to +30 V

for technological functions

— at "0" to "1", max.	10 µs; Typical
— at "1" to "0", max.	10 µs; Typical

Cable length

● shielded, max.	1 000 m
● shielded, max.	1 000 m

Switching capacity of the outputs

● on lamp load, max.

5 W

Load resistance range

● lower limit	48 Ω
● upper limit	4 kΩ

Output voltage

● for signal "0", max.	3 V; 2L+
● for signal "1", min.	Rated voltage -2.5 V (2L+)

Output current

● for signal "1" rated value	0.5 A
● for signal "1" permissible range for 0 to 60 °C, min.	5 mA
● for signal "1" permissible range for 0 to 60 °C, max.	0.6 A
● for signal "0" residual current, max.	0.3 mA

Parallel switching of two outputs

● for uprating	No
● for redundant control of a load	No

Switching frequency

● with resistive load, max.	100 Hz
● with inductive load, max.	0.2 Hz; According to IEC 60947-5-1, DC-13
● on lamp load, max.	100 Hz

all other mounting positions

— up to 40 °C, max.

3 A

Analog inputs

Number of analog inputs

Connectable encoders

● 2-wire sensor

Interfaces

Number of PROFINET interfaces	0
Number of RS 485 interfaces	2
Number of RS 422 interfaces	0

1. Interface

Interface type	Integrated RS 485 interface
Isolated	Yes

Interface types

● RS 485	Yes
● Output current of the interface, max.	200 mA
● RS 485	Yes
● Output current of the interface, max.	200 mA

Protocols

● MPI	Yes
● PROFIBUS DP master	Yes
● PROFIBUS DP device	Yes
● Point-to-point connection	No
● Number of connections	32
● Transmission rate, max.	12 Mbit/s
● MPI	No
● PROFIBUS DP master	Yes; DP(DRIVE)-Master
● PROFIBUS DP device	No
● Point-to-point connection	No
PROFIsafe	Yes

Services

— PG/OP communication	Yes
— Routing	Yes
— Global data communication	Yes
— S7 basic communication	Yes
— S7 communication	Yes
— S7 communication, as client	No; but via CP and loadable FB
— S7 communication, as server	Yes
— PG/OP communication	Yes
— Routing	Yes
— Global data communication	No
— S7 basic communication	Yes; I blocks only
— S7 communication	Yes
— S7 communication, as client	No; but via CP and loadable FB
— S7 communication, as server	Yes
— Equidistance	Yes
— Isochronous mode	Yes; OB 61
— SYNC/FREEZE	Yes
— activation/deactivation of DP devices	Yes
— max. number of DP devices that can be activated/deactivated at the same time	4
— DPV1	Yes
— PG/OP communication	Yes
— Routing	Yes; Only with active interface
— Global data communication	No
— S7 basic communication	No
— S7 communication	Yes; Only server, configured on one side
— S7 communication, as client	Yes; but via CP and loadable FB
— S7 communication, as server	Yes; Connection configured on one side only
— Direct data exchange (slave-to-slave communication)	Yes
— DPV1	No
— PG/OP communication	No
— Routing	Yes
— Global data communication	No
— S7 basic communication	No
— S7 communication	No
— Equidistance	Yes
— Isochronous mode	Yes
— SYNC/FREEZE	No
— activation/deactivation of DP devices	Yes
— DPV1	No

PROFIBUS DP master

● Transmission rate, max.	12 Mbit/s
● max. number of DP devices	124
● Transmission rate, max.	12 Mbit/s
● max. number of DP devices	64

Address area

— Inputs, max.	8 192 byte
— Outputs, max.	8 192 byte
— Inputs, max.	1 024 byte
— Outputs, max.	1 024 byte

User data per DP device

— Inputs, max.	244 byte
— Outputs, max.	244 byte
— Inputs, max.	244 byte
— Outputs, max.	244 byte

PROFIBUS DP device

● GSD file	http://www.siemens.com/profibus-gsd
● Transmission rate, max.	12 Mbit/s
● automatic baud rate search	Yes; only with passive interface
● Address area, max.	32
● User data per address area, max.	32 byte
● GSD file	http://support.automation.siemens.com in Product Support area

Transfer memory

— Inputs	244 byte
— Outputs	244 byte

2. Interface

Interface type	Integrated RS 485 interface
Isolated	Yes

Communication functions

PG/OP communication

Yes

Global data communication

● supported	Yes
● Number of GD loops, max.	8
● Number of GD packets, max.	8
● Number of GD packets, transmitter, max.	8
● Number of GD packets, receiver, max.	8
● Size of GD packets, max.	22 byte
● Size of GD packet (of which consistent), max.	22 byte

S7 basic communication

● supported	Yes
● User data per job, max.	76 byte
● User data per job (of which consistent), max.	76 byte; 76 bytes (with X_SEND or X_RCV), 76 bytes (with X_PUT or X_GET as server)

S7 communication

● supported	Yes
● as server	Yes
● As client	Yes; Via CP and loadable FB
● User data per job, max.	180 byte; With PUT/GET
● User data per job (of which consistent), max.	160 byte

S5 compatible communication

● supported

Yes; via CP and loadable FC

Number of connections

● overall	32
● usable for PG communication	31
— reserved for PG communication	1
— adjustable for PG communication, min.	1
— adjustable for PG communication, max.	31
● usable for OP communication	31
— reserved for OP communication	1
— adjustable for OP communication, min.	1
— adjustable for OP communication, max.	31
● usable for S7 basic communication	30
— reserved for S7 basic communication	0
— adjustable for S7 basic communication, min.	0
— adjustable for S7 basic communication, max.	30
● usable for routing	8

S7 message functions

Number of login stations for message functions, max.	32; Depending on the configured connections for PG/OP and S7 basic communication
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	60

Test commissioning functions

Status block	Yes; Up to 2 simultaneously
Single step	Yes
Number of breakpoints	2; without continuation

Status/control

● Status/control variable	Yes
● Variables	Inputs, outputs, memory bits, DB, times, counters
● Number of variables, max.	30
— of which status variables, max.	30
— of which control variables, max.	14

Forcing

● Forcing	Yes
● Forcing, variables	Inputs, outputs
● Number of variables, max.	10

Diagnostic buffer

● present	Yes
● Number of entries, max.	100
— can be set	No
— of which powerfail-proof	100

Interrupts/diagnostics/status information

Alarms	No
Diagnostics function	No

Diagnostics indication LED

● Status indicator digital input (green)	Yes
● Status indicator digital output (green)	Yes

Potential separation digital inputs

● between the channels and backplane bus

Yes

Potential separation digital outputs
