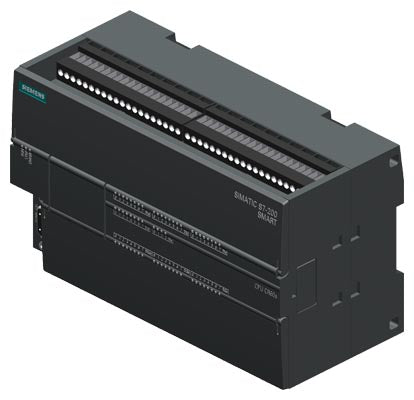

Siemens 6ES7288-1CR60-0AA1 | Industrial Automation Component

Name: Siemens 6ES7288-1CR60-0AA1 | Industrial Automation Component
Brand: Siemens
SKU: 6ES7288-1CR60-0AA1
Price: 171.05 USD
Availability: InStock
Rating: 5.0 (2 reviews)

SKU: 6ES7288-1CR60-0AA1

(2)

$171.05

-13% ~~$196.71~~ $171.05

In stock

Usually ships within 24 hours

Condition

New

Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping

100% secure payments

Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

SIMATIC S7-200 SMART CPU CR60s, COMPACT CPU, AC/DC/RELAY, ONBOARD I/O: 36 DI 24V DC; 24DO RELAY 2A; POWER SUPPLY: AC, 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 20 KB

Product Type: Industrial Automation Component

General

Article number

6ES7288-1CR60-0AA1

General information

Product type designation

CPU CR60s AC/DC/Relay

Engineering with

● Programming package

STEP 7 Micro/WIN SMART

Installation type/mounting

Rail mounting

Yes; Standard - DIN rail

Supply voltage

Rated value (AC)	230 V; 230 V AC (L1, N)
● 120 V AC	Yes; 85 to 132 V AC
● 230 V AC	Yes; 170 to 264 V AC
permissible range, lower limit (AC)	85 V
permissible range, upper limit (AC)	264 V
Reverse polarity protection	No

Line frequency

● permissible range, lower limit	47 Hz
● permissible range, upper limit	63 Hz

Load voltage L+

● Rated value (DC)	24 V
● permissible range, lower limit (DC)	5 V
● permissible range, upper limit (DC)	250 V

Input current

Current consumption (rated value)	100 mA; At 220 V AC
Current consumption, max.	150 mA; At 220 V AC
Inrush current, max.	16.3 A; at 264 V
● for signal "0", max. (permissible quiescent current)	1 mA
● for signal "1", typ.	4 mA

Power loss

Power loss, max.

10 W

Storage

Type of memory	DDR
Flash	Yes
RAM	Yes
Micro Memory Card	No

CPU processing times

for bit operations, typ.	150 ns; / instruction
for word operations, typ.	1.2 µs; / instruction
for floating point arithmetic, typ.	3.6 µs; / instruction

Hardware configuration

Integrated power supply

Clock

● Type	Software clock
● Hardware clock (real-time)	No

Digital inputs

Number of digital inputs	36; Integrated
● of which inputs usable for technological functions	4; HSC: 4 @ 100 kHz single phase, 2 @ 50 kHz A/B phase
Sourcing/sinking input	Yes

Input voltage

● Type of input voltage	DC
● Rated value (DC)	24 V
● for signal "0"	< 5 V DC
● for signal "1"	+15 to +30 V

for standard inputs

— Parameterizable	Yes; 0.2 µs, 0.4 µs, 0.8 µs, 1.6 µs, 3.2 µs, 6.4 µs and 12.8 µs, selectable in 4 groups
— at "0" to "1", min.	0.2 ms
— at "0" to "1", max.	12.8 ms

for interrupt inputs

— Parameterizable

Yes

Cable length

● shielded, max.	500 m; 50m shielded for HSC inputs
● unshielded, max.	300 m
● shielded, max.	500 m
● unshielded, max.	150 m

Digital outputs

Number of digital outputs

24; Relays

Switching capacity of the outputs

● with resistive load, max.	2 A
● on lamp load, max.	30 W; 30 W with DC, 200 W with AC

Output delay with resistive load

● "0" to "1", max.	10 ms; max.
● "1" to "0", max.	10 ms; max.

Switching frequency

● of the pulse outputs, with resistive load, max.

1 Hz

Relay outputs

● Number of relay outputs	24
● Number of operating cycles, max.	100 000; mechanically 10 million, at rated load voltage 100 000

Interfaces

Number of industrial Ethernet interfaces	0
Number of RS 485 interfaces	1
Optical interface	No

1. Interface

Interface type	RS 485 (max. 187.5 kbps)
Isolated	Yes; 500 V AC or 707 V DC

Interface types

● RS 485	Yes
● Design of the connection	9-pin sub D socket

Protocols

Supports protocol for PROFINET IO	No
PROFIBUS	No

Protocols (Ethernet)

● TCP/IP

Interference immunity against discharge of static electricity

● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2	Yes
— Test voltage at air discharge	8 kV
— Test voltage at contact discharge	4 kV

Interference immunity against high-frequency electromagnetic fields

● Interference immunity against high-frequency radiation acc. to IEC 61000-4-3	Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)
— Frequency range of the RF radiation	10 V/m for 80 MHz ~ 1 GHz, 3 V/m for 1.4 GHz ~ 2 GHz, 3 V/m for 87 MHz ~ 108 MHz, 174 MHz ~ 230 MHz, 470 MHz ~ 790 MHz, 1.4 GHz ~ 2 GHz, 1 V/m for 2 GHz ~ 2.7 GHz

Interference immunity to cable-borne interference

● Interference immunity on supply lines acc. to IEC 61000-4-4	Yes; 2 kV acc. to IEC 61000-4-4, burst
● Interference immunity on signal cables acc. to IEC 61000-4-4	Yes; ±2 kV acc. to IEC 61000-4-4, Burst

Interference immunity against voltage surge

● Interference immunity on supply lines acc. to IEC 61000-4-5

Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required

● asymmetric interference

— Test voltage on supply cables	2 kV
— Test voltage on signal cables >30m	2 kV

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high frequency current feed acc. to IEC 61000-4-6

Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6)

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas

Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas.

Emission of conducted and non-conducted interference

● Interference emission via line/AC current cables

EN 61000-6-4, interference emission: Intended for use in industrial areas.

Degree and class of protection

IP degree of protection

IP20

Standards, approvals, certificates

CE mark

Yes

Free fall

● Fall height, max.

0.5 m; five times, in product package

Ambient temperature during operation

● min.	0 °C
● max.	55 °C
● horizontal installation, min.	0 °C
● horizontal installation, max.	55 °C
● vertical installation, min.	0 °C
● vertical installation, max.	45 °C

Ambient temperature during storage/transportation

● min.	-40 °C
● max.	70 °C

Air pressure acc. to IEC 60068-2-13

● Storage/transport, min.	660 hPa
● Storage/transport, max.	1 080 hPa

Altitude during operation relating to sea level

● Installation altitude, min.	-1 000 m
● Installation altitude, max.	2 000 m

Relative humidity

● Operation at 25 ℃ without condensation, max.

95 %

Programming language

— LAD	Yes
— FBD	Yes
— STL	Yes

Dimensions

Width	175 mm
Height	100 mm
Depth	81 mm

Weights

Weight, approx.

605 g; approx.

Classifications

Version	Classification
eClass	16
eClass	14
eClass	12
eClass	9.1
eClass	9
eClass	8
eClass	7.1
eClass	6
ETIM	10
ETIM	9
ETIM	8
ETIM	7
IDEA	4
UNSPSC	15

General Product Approval

EU declaration of conformity	Yes
UK Declaration of Conformity	Yes
EAC	Yes
China RoHS	Yes
EU declaration of conformity	Yes
UK Declaration of Conformity	Yes
last modified:	8/24/2025

Applications

This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
