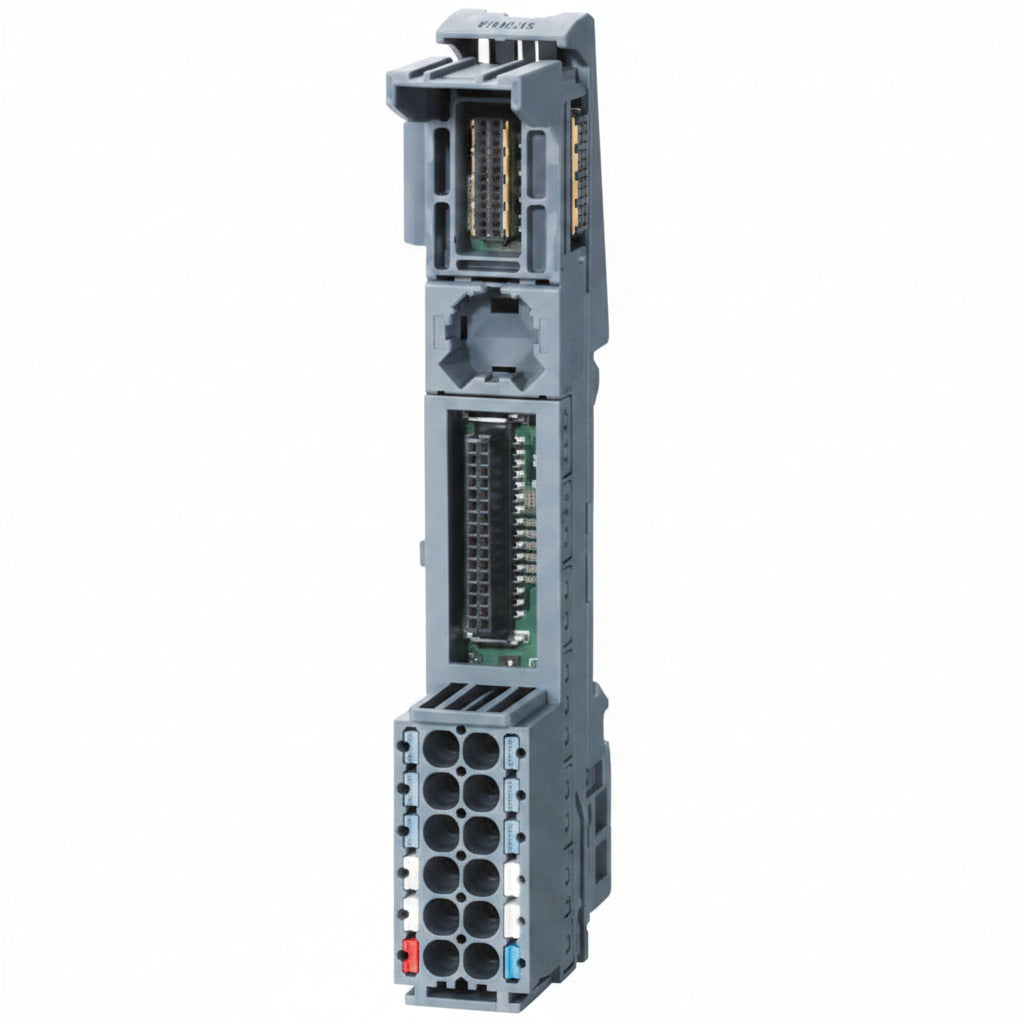

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2B, BU type A0, Push-in terminals, without AUX terminals, bridged to the left, WxH: 15x 117 mm
Product Type: Industrial Automation Component
General
| Article number |
6ES7193-6BP00-0BA0 |
General information
| Product type designation |
BU type A0 |
| HW functional status |
From FS06 |
Supply voltage
| Rated value (DC) |
24 V |
| external protection for power supply lines |
Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic |
Mains filter
Current carrying capacity
| For P1 and P2 bus, max. |
10 A |
| For process terminals, max. |
2 A |
Hardware configuration
Formation of potential groups
| ● New potential group |
No |
| ● Potential group continued from the left |
Yes |
Slots
| ● Number of slots |
1; Type A0 |
Isolation
| Isolation tested with |
707 V DC (type test) |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
0.873 kg |
| — global warming potential, (during production) [CO2 eq] |
0.866 kg |
| — global warming potential, (during operation) [CO2 eq] |
0 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.0011 kg |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Absolute humidity
| ● dew point, min. |
-60 °C; suitable for dry room applications |
Color coding labels
| ● for process terminals |
CC00 to CC09 |
| ● for AUX terminals |
does not exist |
| ● for add-on terminals |
does not exist |
Terminals
| ● Terminal type |
Push-in terminal |
| ● system-integrated shield connection |
Yes; Optional |
| ● Conductor cross-section, min. |
0.14 mm²; AWG 26 |
| ● Conductor cross-section, max. |
2.5 mm²; AWG 14 |
| ● Number of process terminals to I/O module |
16; Pro slot |
| ● Number of terminals to AUX bus |
0 |
| ● Number of add-on terminals |
0 |
| ● Number of terminals with connection to P1 and P2 bus |
2; Pro slot |
Dimensions
| Width |
15 mm |
| Height |
117 mm |
| Depth |
35 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
For use in hazardous locations
| UL |
Yes |
| FM |
Yes |
| CCC-Ex |
Yes |
| ATEX |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| Type Examination Certificate |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| last modified: |
2/1/2026 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
