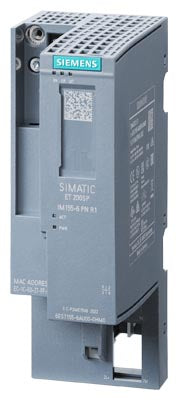

SIMATIC ET 200SP, PROFINET, 2-port interface module IM 155-6 PN R1, 1 slot for BusAdapter, max. 64 I/O modules R1 redundancy, multi hot swap, 1 ms, PN security class 1
Product Type: Industrial Automation Component
General
| Article number |
6ES7155-6AU00-0HM0 |
General information
| Product type designation |
IM 155-6 PN R1 |
| HW functional status |
From FS03 |
| Firmware version |
V6.1 |
| ● FW update possible |
Yes |
Product function
| ● I&M data |
Yes; I&M0 to I&M4 |
| ● Module swapping during operation (hot swapping) |
Yes; Multi-hot swapping |
| ● Isochronous mode |
No |
| ● IRT |
No |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V19 |
| ● STEP 7 configurable/integrated from version |
use GSD file |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.45 |
Configuration control
CiR - Configuration in RUN
| Reparameterization possible in RUN |
Yes |
| reconfiguration possible in RUN |
Yes |
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Short-circuit protection |
Yes |
Mains buffering
| ● Mains/voltage failure stored energy time |
10 ms |
Input current
| Current consumption, max. |
700 mA |
| Inrush current, max. |
5 A |
| I²t |
0.36 A²·s |
Power loss
Address space per module
| ● Address space per module, max. |
288 byte; For input and output data respectively |
Address space per station
| ● Address space per station, max. |
1 440 byte |
Rack
| ● Quantity of operable ET 200SP modules, max. |
64 |
| ● Quantity of operable ET 200AL modules, max. |
0 |
Submodules
| ● Number of submodules per station, max. |
256 |
Interfaces
| Transmission procedure |
100BASE-TX |
| Number of PROFINET interfaces |
1; 2 ports (switch) |
Interface types
| ● RJ 45 (Ethernet) |
Yes; with BusAdapter |
| ● Number of ports |
2; with BusAdapter |
| ● integrated switch |
Yes |
| ● BusAdapter (PROFINET) |
Yes; BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x LC-LD, BA LC-LD/RJ45, BA LC-LD/M12 |
Protocols
| ● PROFINET IO Device |
Yes |
| ● Open IE communication |
Yes |
| ● Media redundancy |
Yes; PROFINET MRP client |
| Supports protocol for PROFINET IO |
Yes |
| PROFIsafe |
Yes |
| PROFIBUS |
No |
| EtherNet/IP |
No |
| Modbus TCP |
No |
Services
| — IRT |
No |
| — Dynamic Frame Packing (DFP) |
No |
| — PROFIenergy |
No |
| — Prioritized startup |
No |
| — Shared device |
No |
RJ 45 (Ethernet)
| ● Transmission procedure |
PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| ● 100 Mbps |
Yes |
| ● Autonegotiation |
Yes |
| ● Autocrossing |
Yes |
Redundancy mode
| ● PROFINET system redundancy (S2) |
No |
| ● PROFINET system redundancy (R1) |
Yes |
| ● H-Sync forwarding |
Yes |
Media redundancy
Open IE communication
| ● TCP/IP |
Yes |
| ● SNMP |
Yes |
| ● LLDP |
Yes |
Interrupts/diagnostics/status information
| Status indicator |
Yes |
| Alarms |
Yes |
| Diagnostics function |
Yes |
Diagnostics indication LED
| ● RUN LED |
Yes; green LED |
| ● ERROR LED |
Yes; red LED |
| ● MAINT LED |
Yes; Yellow LED |
| ● ACT LED |
Yes; green LED |
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Connection display LINK TX/RX |
Yes; 2x green link LEDs on BusAdapter |
Potential separation
| between backplane bus and electronics |
No |
| between PROFINET and all other circuits |
Yes; 1500 V AC (type test) |
| between supply and all other circuits |
Yes |
Permissible potential difference
| between different circuits |
Safety extra low voltage SELV |
Isolation
| Isolation tested with |
707 V DC (type test) |
Standards, approvals, certificates
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
105 kg |
| — global warming potential, (during production) [CO2 eq] |
13.7 kg |
| — global warming potential, (during operation) [CO2 eq] |
91.9 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.617 kg |
Security
| PROFINET Security Class |
1 |
| signed firmware update |
Yes |
| Secure Boot |
No |
| safely removing data |
No |
| data integrity |
Yes |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C; No condensation |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; No condensation |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
2 000 m |
ET-Connection
Dimensions
| Width |
50 mm |
| Height |
138 mm |
| Depth |
89 mm |
Weights
| Weight, approx. |
192 g; without BusAdapter |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| KC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| China RoHS |
Yes |
For use in hazardous locations
| UL |
Yes |
| CCC-Ex |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| Type Examination Certificate |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| last modified: |
5/20/2026 |
