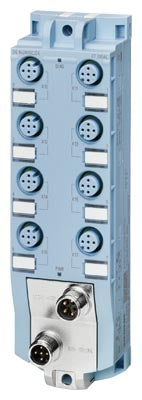

SIMATIC ET 200AL, IO-Link, DQ 8x 24 V DC/2 A, 8x M12, Degree of protection IP67
Product Type: Industrial Automation Component
General
| Article number |
6ES7142-5AF00-0BL0 |
General information
| Product type designation |
IO-Link DQ 8x24VDC/2A |
| HW functional status |
FS01 |
| Firmware version |
V1.0.x |
| Vendor identification (VendorID) |
42 |
| Device identifier (DeviceID) |
229381 |
Engineering with
Load voltage 1L+
| ● Rated value (DC) |
24 V; Supply from 1Us+ of the IO-Link master |
| ● permissible range, lower limit (DC) |
18 V |
| ● permissible range, upper limit (DC) |
30 V |
| ● Reverse polarity protection |
Yes; against destruction |
Load voltage 2L+
| ● Rated value (DC) |
24 V; Supply via M12 connector L-coded |
| ● permissible range, lower limit (DC) |
20.4 V |
| ● permissible range, upper limit (DC) |
28.8 V |
| ● Reverse polarity protection |
Yes; against destruction; load increasing |
Input current
| Current consumption (rated value) |
12 mA; without load |
| from load voltage 2L+, max. |
8 A; Maximum value |
Power loss
Digital outputs
| Number of digital outputs |
8 |
| Current-sourcing |
Yes |
| output type acc. to IEC 61131, type 2 |
Yes |
| Short-circuit protection |
Yes; per channel, electronic |
| ● Response threshold, typ. |
2.8 A |
| Limitation of inductive shutdown voltage to |
2L+ (-47 V) |
Switching capacity of the outputs
| ● on lamp load, max. |
10 W |
Load resistance range
| ● lower limit |
12 Ω |
| ● upper limit |
4 kΩ |
Output voltage
| ● for signal "1", min. |
L+ (-0.8 V) |
Output current
| ● for signal "1" rated value |
2 A (45 °C); 1 A (55 °C) |
| ● for signal "1" permissible range, max. |
2 A; with inductive load to IEC 60947-5-1, DC-13 / AC-15 |
| ● for signal "0" residual current, max. |
0.5 mA |
Switching frequency
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
0.1 Hz; 0.25 Hz at 25 °C |
| ● on lamp load, max. |
1 Hz |
Total current of the outputs
| ● Current per module, max. |
8 A |
Cable length
IO-Link
| IO-Link protocol 1.1 |
Yes |
| Transmission rate |
38.4 kBd (COM2) |
| Cycle time, min. |
2.1 ms |
| Size of process data, input per module |
0 byte |
| Size of process data, output per module |
1 byte |
| Supported IO-Link profiles |
common profile |
| Cable length unshielded, max. |
20 m |
Connection of IO-Link devices
Interrupts/diagnostics/status information
| Substitute values connectable |
Yes; channel by channel, parameterizable |
Alarms
| ● Diagnostic alarm |
Yes; Parameterizable |
Diagnoses
| ● Short-circuit |
Yes; Outputs to ground; module by module |
Diagnostics indication LED
| ● Channel status display |
Yes; green LED |
| ● for module diagnostics |
Yes; green/red LED |
| ● For load voltage monitoring |
Yes; green LED |
Potential separation
| between the load voltages |
Yes |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and the power supply of the electronics |
Yes |
Isolation
| Isolation tested with |
707 V DC (type test) |
Degree and class of protection
| IP degree of protection |
IP65/67 |
Standards, approvals, certificates
| Suitable for safety-related tripping of standard modules |
Yes; from FS01 |
Highest safety class achievable for safety-related tripping of standard modules
| ● Performance level according to ISO 13849-1 |
PL d |
| ● Category according to ISO 13849-1 |
Cat. 3 |
| ● SIL acc. to IEC 62061 |
SIL 2 |
| ● remark on safety-oriented shutdown |
https://support.industry.siemens.com/cs/de/en/view/39198632 |
Ambient temperature during operation
| ● min. |
-30 °C |
| ● max. |
55 °C |
Connection method
| Design of electrical connection for the inputs and outputs |
M12, 5-pin, A-coded |
| Type of electrical connection for IO-Link |
M12, 5-pin, A-coded |
| Design of electrical connection for supply voltage |
M12, 4-pin, L-coded |
Dimensions
| Width |
45 mm |
| Height |
159 mm |
| Depth |
45 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
Functional Saftey
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
other
| KC |
Yes |
| last modified: |
10/23/2025 |
