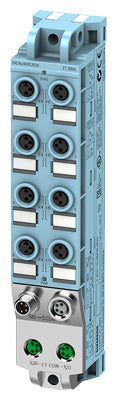

SIMATIC ET 200AL, DI 8x 24 V DC, 8XM8, Degree of protection IP67
Product Type: Industrial Automation Component
General
| Article number |
6ES7141-5BF00-0BA0 |
General information
| Product type designation |
DI 8x24VDC |
| HW functional status |
FS06 |
| Firmware version |
V2.0.x |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
STEP 7 V13 SP1 or higher |
| ● STEP 7 configurable/integrated from version |
From V5.5 SP4 Hotfix 3 |
| ● PROFIBUS from GSD version/GSD revision |
GSD as of Revision 5 |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3.1 |
Supply voltage
| power supply according to NEC Class 2 required |
No |
Load voltage 1L+
| ● Rated value (DC) |
24 V |
| ● permissible range, lower limit (DC) |
20.4 V |
| ● permissible range, upper limit (DC) |
28.8 V |
| ● Reverse polarity protection |
Yes; Against destruction; encoder power supply outputs applied with reversed polarity |
Input current
| Current consumption (rated value) |
25 mA; without load |
| from load voltage 1L+ (unswitched voltage) |
4 A; Maximum value |
| from load voltage 2L+, max. |
4 A; Maximum value |
| ● for signal "1", typ. |
3.2 mA |
Encoder supply
24 V encoder supply
| ● Short-circuit protection |
Yes; per module, electronic |
| ● Output current, max. |
0.7 A; Total current of all encoders |
Power loss
Digital inputs
| Number of digital inputs |
8 |
| Sourcing/sinking input |
P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 |
Yes |
all mounting positions
Input voltage
| ● Rated value (DC) |
24 V |
| ● for signal "0" |
-30 to +5 V |
| ● for signal "1" |
+11 to +30V |
for standard inputs
| — at "0" to "1", min. |
1.2 ms |
| — at "0" to "1", max. |
4.8 ms |
| — at "1" to "0", min. |
1.2 ms |
| — at "1" to "0", max. |
4.8 ms |
Cable length
Connectable encoders
| ● 2-wire sensor |
Yes |
| — permissible quiescent current (2-wire sensor), max. |
1.5 mA |
Alarms
| ● Diagnostic alarm |
Yes; Parameterizable |
Diagnoses
| ● Short-circuit |
Yes; Sensor supply to M; module by module |
Diagnostics indication LED
| ● Channel status display |
Yes; green LED |
| ● for module diagnostics |
Yes; green/red LED |
Potential separation
| between the load voltages |
Yes |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
Isolation
| Isolation tested with |
707 V DC (type test) |
Degree and class of protection
| IP degree of protection |
IP65/67 |
Standards, approvals, certificates
| Suitable for safety-related tripping of standard modules |
Yes; from FS01 |
Highest safety class achievable for safety-related tripping of standard modules
| ● Performance level according to ISO 13849-1 |
PL d |
| ● Category according to ISO 13849-1 |
Cat. 3 |
| ● SIL acc. to IEC 62061 |
SIL 2 |
| ● remark on safety-oriented shutdown |
https://support.industry.siemens.com/cs/de/en/view/39198632 |
Security
| signed firmware update |
Yes |
| data integrity |
Yes |
Ambient temperature during operation
| ● min. |
-30 °C |
| ● max. |
55 °C |
Altitude during operation relating to sea level
| ● Ambient air temperature-barometric pressure-altitude |
Up to max. 5 000 m, at installation height > 2 000 m additional restrictions |
Connection method
| Design of electrical connection for the inputs and outputs |
M8, 3-pole |
| Design of electrical connection for supply voltage |
M8, 4-pole |
ET-Connection
| ● ET-Connection |
M8, 4-pin, shielded |
Dimensions
| Width |
30 mm |
| Height |
159 mm |
| Depth |
40 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| KC |
Yes |
| UL |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| China RoHS |
Yes |
| KC |
Yes |
Functional Saftey
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
other
| KC |
Yes |
| last modified: |
10/23/2025 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
