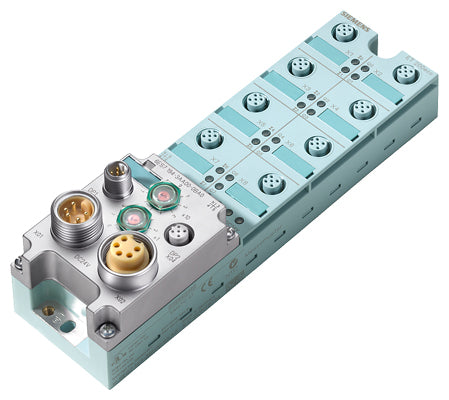

SIMATIC DP, Basic module BM 141 ET 200ECO: 16 DI 24 V DC; 8xM12, Duplicate assignment, Degree of protection IP65/67; Connection block 6ES7194-3AA00-0.A0 separately order
Product Type: Industrial Automation Component
General
| Article number |
6ES7141-3BH00-0XA0 |
General information
| Vendor identification (VendorID) |
80DAh |
Supply voltage
| Rated value (DC) |
24 V |
| Reverse polarity protection |
Yes |
Input current
| from supply voltage 1L+, max. |
70 mA; Typical |
| ● for signal "1", typ. |
7 mA |
Encoder supply
| Number of outputs |
8 |
| Type of output voltage |
24 V DC |
| Short-circuit protection |
Yes; Electronic |
Output current
| ● nominal |
1 A; Aggregate current up to 55 °C |
Power loss
Digital inputs
| Number of digital inputs |
16 |
| Input characteristic curve in accordance with IEC 61131, type 1 |
Yes |
all mounting positions
Input voltage
| ● Rated value (DC) |
24 V |
| ● for signal "0" |
-3 to +5V |
| ● for signal "1" |
13 to 30V |
for standard inputs
| — at "0" to "1", max. |
3 ms; Typical |
| — at "1" to "0", max. |
3 ms; Typical |
Cable length
Connectable encoders
| ● 2-wire sensor |
Yes |
| — permissible quiescent current (2-wire sensor), max. |
1.5 mA |
PROFIBUS DP
| ● Transmission rate, max. |
12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
Protocols
Interrupts/diagnostics/status information
Diagnoses
| ● Diagnostic information readable |
Yes |
Diagnostics indication LED
| ● Group error SF (red) |
Yes |
| ● Status indicator digital input (green) |
Yes |
| ● Channel fault indicator F (red) |
No |
Potential separation
| between PROFIBUS DP and all other circuit components |
Yes |
Potential separation digital inputs
| ● between the channels |
No |
Permissible potential difference
| between different circuits |
75 V DC/60 V AC |
Isolation
| Isolation tested with |
500 V DC |
Degree and class of protection
| IP degree of protection |
IP65/67 |
Connection method
| Design of electrical connection |
4/5-pin M12 circular connectors |
Dimensions
| Width |
60 mm |
| Height |
210 mm |
| Depth |
28 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| RCM |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
Industrial Communication
| PROFIBUS |
Yes |
| last modified: |
4/4/2025 |
