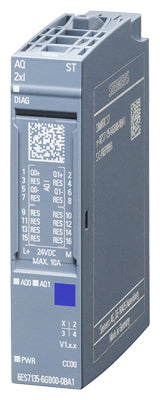

SIMATIC ET 200SP, Analog output module, AQ 2xI Standard, Pack quantity: 1 unit, suitable for BU type A0, A1, Color code CC00, Module diagnostics, 16 bit
Product Type: Industrial Automation Component
General
| Article number |
6ES7135-6GB00-0BA1 |
General information
| Product type designation |
AQ 2xI ST |
| HW functional status |
from FS21 |
| Firmware version |
V1.0.2 |
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type A0, A1 |
| Color code for module-specific color-coded label |
CC00 |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| ● Output range scalable |
No |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V13 SP1 / - |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 / - |
| ● PROFIBUS from GSD version/GSD revision |
GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
Operating mode
| ● Oversampling |
No |
| ● MSO |
No |
CiR - Configuration in RUN
| Reparameterization possible in RUN |
No |
| Calibration possible in RUN |
No |
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Input current
| Current consumption, max. |
110 mA |
Power loss
Address space per module
| ● Address space per module, max. |
4 byte; + 1 byte for QI information |
Hardware configuration
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
Analog outputs
| Number of analog outputs |
2 |
| Cycle time (all channels), min. |
1 ms |
| Analog output with oversampling |
No |
Output ranges, current
| ● 0 to 20 mA |
Yes; 15 bit |
| ● -20 mA to +20 mA |
Yes; 16 bit incl. sign |
| ● 4 mA to 20 mA |
Yes; 14 bit |
Connection of actuators
| ● for current output two-wire connection |
Yes |
Load impedance (in rated range of output)
| ● with current outputs, max. |
500 Ω |
| ● with current outputs, inductive load, max. |
1 mH |
Destruction limits against externally applied voltages and currents
| ● Voltages at the outputs |
30 V |
Cable length
Integration and conversion time/resolution per channel
| ● Resolution with overrange (bit including sign), max. |
16 bit |
Settling time
| ● for resistive load |
0.1 ms; Typical value |
| ● for inductive load |
0.5 ms |
Errors/accuracies
| Linearity error (relative to output range), (+/-) |
0.03 % |
| Temperature error (relative to output range), (+/-) |
0.005 %/K |
| Crosstalk between the outputs, min. |
-50 dB |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) |
0.05 % |
Operational error limit in overall temperature range
| ● Voltage, relative to output range, (+/-) |
0.5 % |
| ● Current, relative to output range, (+/-) |
0.5 % |
Basic error limit (operational limit at 25 °C)
| ● Voltage, relative to output range, (+/-) |
0.3 % |
| ● Current, relative to output range, (+/-) |
0.3 % |
Interrupts/diagnostics/status information
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
Alarms
Diagnoses
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
Yes |
| ● Group error |
Yes |
| ● Overflow/Underflow |
Yes; module-wise |
Diagnostics indication LED
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
No |
| ● for module diagnostics |
Yes; green/red DIAG LED |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
Yes |
Isolation
| Isolation tested with |
707 V DC (type test) |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
28.6 kg |
| — global warming potential, (during production) [CO2 eq] |
5.33 kg |
| — global warming potential, (during operation) [CO2 eq] |
23.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.343 kg |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS03 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS03 |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual |
Absolute humidity
| ● dew point, min. |
-60 °C; suitable for dry room applications |
Dimensions
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| Metrological Approval |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
For use in hazardous locations
| UL |
Yes |
| FM |
Yes |
| CCC-Ex |
Yes |
| IECEx |
Yes |
| ATEX |
Yes |
| Type Examination Certificate |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| last modified: |
3/10/2026 |
