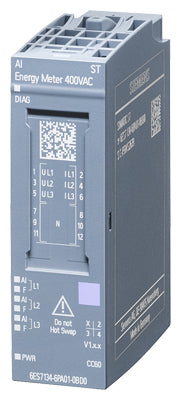

*** spare part *** SIMATIC ET 200SP, Analog input module, AI Energy Meter 400 V AC ST, suitable for BU type D0, channel diagnostics
Product Type: Industrial Automation Component
General
| Article number |
6ES7134-6PA01-0BD0 |
General information
| Product type designation |
AI energy meter 400VAC ST |
| Firmware version |
V3.0 |
| usable BaseUnits |
BU type D0 |
Product function
| ● Voltage measurement |
Yes |
| — with voltage transformer |
No |
| ● Current measurement |
Yes |
| — without current transformer |
No |
| — with current transformer |
Yes |
| ● Energy measurement |
Yes |
| ● Frequency measurement |
Yes |
| ● Power measurement |
Yes |
| ● Active power measurement |
Yes |
| ● Reactive power measurement |
Yes |
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V13 SP1 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP4 and higher |
| ● PROFIBUS from GSD version/GSD revision |
GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision |
V2.3 |
Operating mode
| ● cyclic measurement |
Yes |
| ● acyclic measurement |
Yes |
| ● Acyclic measured value access |
Yes |
| ● Fixed measured value sets |
Yes |
| ● Freely definable measured value sets |
No |
CiR - Configuration in RUN
| Reparameterization possible in RUN |
Yes |
| Calibration possible in RUN |
No |
Installation type/mounting
Supply voltage
| Design of the power supply |
Supply via voltage measurement channel L1 |
| Rated value (AC) |
100 - 240 V AC |
| permissible range, lower limit (AC) |
90 V |
| permissible range, upper limit (AC) |
264 V |
Line frequency
| ● permissible range, lower limit |
47 Hz |
| ● permissible range, upper limit |
63 Hz |
Power loss
Address space per module
| ● Address space per module, max. |
44 byte; 32 byte input / 12 byte output |
Automatic encoding
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
type C |
Operating hours counter
Analog inputs
| Cycle time (all channels), typ. |
50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data) |
Alarms
| ● Diagnostic alarm |
Yes |
| ● Limit value alarm |
No |
| ● Hardware interrupt |
No |
Diagnostics indication LED
| ● Monitoring of the supply voltage (PWR-LED) |
Yes |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red Fn LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
Measuring functions
| ● Measuring procedure for voltage measurement |
TRMS |
| ● Measuring procedure for current measurement |
TRMS |
| ● Type of measured value acquisition |
seamless |
| ● Curve shape of voltage |
Sinusoidal or distorted |
| ● Buffering of measured variables |
No |
| ● Parameter length |
38 byte |
| ● Bandwidth of measured value acquisition |
2 kHz; Harmonics: 39 / 50 Hz, 32 / 60 Hz |
Measuring range
| — Frequency measurement, min. |
45 Hz |
| — Frequency measurement, max. |
65 Hz |
Measuring inputs for voltage
| — Measurable line voltage between phase and neutral conductor |
230 V |
| — Measurable line voltage between the line conductors |
400 V |
| — Measurable line voltage between phase and neutral conductor, min. |
90 V |
| — Measurable line voltage between phase and neutral conductor, max. |
264 V |
| — Measurable line voltage between the line conductors, min. |
155 V |
| — Measurable line voltage between the line conductors, max. |
460 V |
| — Internal resistance line conductor and neutral conductor |
3.4 MΩ |
| — Power consumption per phase |
20 mW |
| — Impulse voltage resistance 1,2/50µs |
1 kV |
| — Measurement category for voltage measurement in accordance with IEC 61010-2-030 |
CAT II; CAT III in case of guaranteed protection level of 1.5 kV |
Measuring inputs for current
| — measurable relative current (AC), min. |
5 %; Relative to the secondary rated current; 1 A, 5 A |
| — measurable relative current (AC), max. |
100 %; Relative to the secondary rated current; 1 A, 5 A |
| — Continuous current with AC, maximum permissible |
5 A |
| — Apparent power consumption per phase for measuring range 5 A |
0.6 VA |
| — Rated value short-time withstand current restricted to 1 s |
100 A |
| — Input resistance measuring range 0 to 5 A |
25 mΩ; At the terminal |
| — Surge strength |
10 A; for 1 minute |
| — Zero point suppression |
Parameterizable: 20 ... 250 mA, default 50 mA |
Accuracy class according to IEC 61557-12
| — Measured variable voltage |
0.5 |
| — Measured variable current |
0.5 |
| — Measured variable apparent power |
1 |
| — Measured variable active power |
1 |
| — Measured variable reactive power |
1 |
| — Measured variable power factor |
0.5 |
| — Measured variable active energy |
1 |
| — Measured variable reactive energy |
2 |
| — Measured variable phase angle |
±1 °; not covered by IEC 61557-12 |
| — Measured variable frequency |
0.05 |
Potential separation channels
| ● between the channels and backplane bus |
Yes; 3 700V AC (type test) CAT III |
Isolation
| Isolation tested with |
2 300V AC for 1 min. (type test) |
Ambient temperature during operation
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
0 °C |
| ● vertical installation, max. |
50 °C |
Dimensions
| Width |
20 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Data for selecting a current transformer
| ● Burden power current transformer x/1A, min. |
As a function of cable length and cross section, see device manual |
| ● Burden power current transformer x/5A, min. |
As a function of cable length and cross section, see device manual |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
For use in hazardous locations
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
| last modified: |
10/23/2025 |
