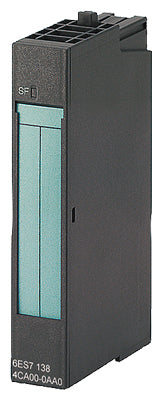

*** Spare part *** SIMATIC DP, Electronics module 2 AI U High Feature f. ET200S, 15 mm width, Cycle time per module: 0.5 ms, +/-10V; 15 bit+sign, +/-5 V; 15 bit+sign, 1..5 V; 15 bit, Operational limit +/-0.1% with SF LED (group fault)
Product Type: Industrial Automation Component
General
| Article number |
6ES7134-4LB02-0AB0 |
Product function
Load voltage L+
| ● Rated value (DC) |
24 V |
| ● Reverse polarity protection |
Yes |
Input current
| from load voltage L+ (without load), max. |
55 mA |
| from backplane bus 3.3 V DC, max. |
10 mA |
Power supply to the transmitters
Power loss
Address space per module
| ● Address space per module, max. |
4 byte |
Analog inputs
| Number of analog inputs |
2 |
| permissible input voltage for voltage input (destruction limit), max. |
35 V; 35 V continuous; 75 V for max. 1 ms |
| Cycle time (all channels) max. |
0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per channel with noise suppression |
Input ranges (rated values), voltages
| ● 1 V to 5 V |
Yes |
| — Input resistance (1 V to 5 V) |
800 kΩ |
| ● -10 V to +10 V |
Yes |
| — Input resistance (-10 V to +10 V) |
800 kΩ |
| ● -5 V to +5 V |
Yes |
| — Input resistance (-5 V to +5 V) |
800 kΩ |
Cable length
Integration and conversion time/resolution per channel
| ● Resolution with overrange (bit including sign), max. |
16 bit; 0 to 5 V: 15 bit, ±10 V: 16 bit, ±5 V: 16 bit |
| ● Integration time, parameterizable |
Yes |
| ● Interference voltage suppression for interference frequency f1 in Hz |
60 / 50 Hz / no |
| ● Conversion time (per channel) |
0.04 ms; Without noise suppression 17/20 ms per channel with error |
Smoothing of measured values
| ● Parameterizable |
Yes; In 4 stages: 1x, 4x, 16x, 32x cycle time |
| ● Step: None |
Yes; 1x |
| ● Step: low |
Yes; 4x |
| ● Step: Medium |
Yes; 16x |
| ● Step: High |
Yes; 32x |
Connection of signal encoders
| ● for voltage measurement |
Yes |
Operational error limit in overall temperature range
| ● Voltage, relative to input range, (+/-) |
0.1 %; 0.2% without interference frequency suppression |
Basic error limit (operational limit at 25 °C)
| ● Voltage, relative to input range, (+/-) |
0.05 %; 0.1% without interference frequency suppression |
Alarms
Diagnoses
| ● Wire break |
Yes; Measuring range 1 to 5 V only |
| ● Group error |
Yes |
| ● Overflow/Underflow |
Yes |
Diagnostics indication LED
| ● Group error SF (red) |
Yes |
Potential separation analog inputs
| ● between the channels |
No; however, increased permissible potential difference between the inputs. |
| ● between the channels and backplane bus |
Yes |
| ● Between the channels and load voltage L+ |
Yes |
Isolation
| Isolation tested with |
500 V DC |
Dimensions
| Width |
15 mm |
| Height |
81 mm |
| Depth |
52 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| Metrological Approval |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| China RoHS |
Yes |
| Manufacturer Declaration |
Yes |
| RCM |
Yes |
For use in hazardous locations
| ATEX |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| UL |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| ATEX |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| PRS (Polski Register of Shipping) |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
| last modified: |
8/22/2025 |
