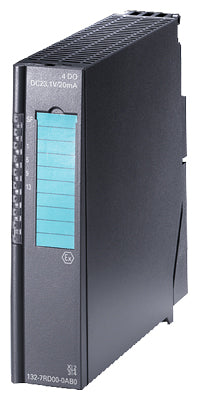

SIMATIC, electronic module for ET200iSP, 4 DO, 23.1 V DC/20 mA, "L"-shutdown, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb
Product Type: Industrial Automation Component
General
| Article number |
6ES7132-7GD00-0AB0 |
General information
| Product type designation |
4DQ 23.1 V DC/20 mA |
| HW functional status |
7 |
| Firmware version |
V3.0.0 |
| Product version |
SHUT DOWN "L" |
Installation type/mounting
| Rack mounting |
No |
| Front mounting |
Yes |
| Rail mounting |
Yes |
| Wall mounting/direct mounting |
No |
Supply voltage
| Type of supply voltage |
DC |
Input current
| Current consumption, typ. |
290 mA |
| from load voltage (power bus), max. |
340 mA; with actuator supply |
Power loss
Address space per module
| ● Address space per module, max. |
2 byte |
Hardware configuration
| Fieldbus connection via separate transceiver |
Yes |
Digital outputs
| Type of digital output |
Transistor |
| Number of digital outputs |
4; additionally 1 intrinsically-safe input for L shutdown |
| Short-circuit protection |
Yes |
| No-load voltage Uao (DC) |
23.1 V |
| Internal resistor Ri |
275 Ω |
Trend key points E
| ● Voltage Ue (DC) |
17.6 V |
| ● Current Ie |
20 mA |
Output voltage
| ● Type of output voltage |
DC |
Output current
| ● for signal "1" rated value |
0.02 A |
Output delay with resistive load
| ● "0" to "1", max. |
2 ms |
| ● "1" to "0", max. |
1.5 ms |
Parallel switching of two outputs
| ● for uprating |
No; for Ex reasons not possible; nor for predecessor |
Switching frequency
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
Cable length
| ● shielded, max. |
500 m |
| ● unshielded, max. |
500 m |
Interfaces
| Number of PROFINET interfaces |
0 |
| Number of RS 485 interfaces |
0 |
Protocols
| PROFINET IO |
No |
| PROFIsafe |
No |
| PROFIBUS |
No |
Interrupts/diagnostics/status information
Alarms
| ● Diagnostic alarm |
Yes; Parameterizable |
| ● Hardware interrupt |
No |
Diagnoses
| ● Diagnostic information readable |
Yes |
| ● Wire break |
Yes; R > 10 kohms, I < 100 µA |
| ● Short-circuit |
Yes; R< 80 Ohm (one output), R< 40 Ohm (outputs connected in parallel) |
Diagnostics indication LED
| ● Group error SF (red) |
Yes |
| ● Status indicator digital output (green) |
Yes |
Ex(i) characteristics
| Module for Ex(i) protection |
Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0011 |
maximum values for connecting terminals for gas group IIC
| ● Uo (no-load voltage), max. |
25.6 V |
| ● Io (short-circuit current), max. |
96 mA |
| ● Po (power output), max. |
0.61 W |
| ● Co (permissible external capacity), max. |
98 nF |
| ● Lo (permissible external inductivity), max. |
3 mH |
| ● Ui (intrinsically safe input voltage), max. |
28 V; switch input circuit |
| ● Pi (intrinsically safe input power), max. |
1.2 W; switch input circuit |
| ● Ci (internal capacity), max. |
3 nF; switch input circuit |
Potential separation digital outputs
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● Between the channels and load voltage L+ |
Yes |
Degree and class of protection
| IP degree of protection |
IP30 |
Standards, approvals, certificates
| CE mark |
CE 0344 |
| UKCA mark |
DEKRA 21UKEX0085 Importer UK: Siemens plc Manchester M20 2UR |
| cULus |
LISTED E334384 |
| FM approval |
CLASSIFIED 3025852 |
| Suitable for safety functions |
No |
| INMETRO certificate |
UL-BR 12.0073 |
| reference designation according to IEC 81346-2 (2009) |
K |
Highest safety class achievable in safety mode
| ● SIL acc. to IEC 61508 |
No |
Use in hazardous areas
| ● ATEX marking |
II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb |
| ● ATEX certificate |
KEMA 04 ATEX 1249 |
| ● IECEx |
IECEx KEM 05.0011 |
| ● CCC Ex |
2020322316002945 |
| ● EAC Ex |
PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| ● FM marking |
Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G |
| ● Explosion protection category for gas |
ATEX gas explosion protection, Zone 1 |
| ● Explosion protection category for dust |
ATEX dust explosion protection, Zone 21 always install in corresponding enclosure |
| ● associated equipment (Ex ia) |
Yes |
| ● associated equipment (Ex ib) |
Yes |
Marine approval
| ● Germanischer Lloyd (GL) |
Yes |
| ● American Bureau of Shipping (ABS) |
Yes |
| ● Bureau Veritas (BV) |
Yes |
| ● Det Norske Veritas (DNV) |
Yes |
Connection method
| Design of electrical connection |
Screw/spring-type terminal |
Dimensions
| Width |
30 mm |
| Height |
129 mm |
| Depth |
136.5 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Miscellaneous |
Yes |
| KC |
Yes |
| RCM |
Yes |
| China RoHS |
Yes |
| Manufacturer Declaration |
Yes |
For use in hazardous locations
| ATEX |
Yes |
| IECEx |
Yes |
| FM |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC |
Yes |
| CCC-Ex |
Yes |
| UL |
Yes |
| INMETRO |
Yes |
| Miscellaneous |
Yes |
| Miscellaneous |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| PRS (Polski Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| last modified: |
7/7/2025 |
