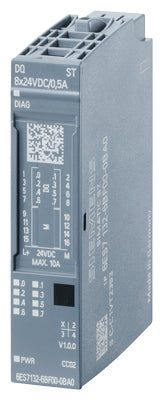

SIMATIC ET 200SP, digital output module, DQ 8x 24VDC/0.5A High Feature, source output PNP, source output, Packing unit: 1 unit, suitable for BU type A0, color code CC02, Channel diagnostics for: Short-circuit and wire break; supply voltage, channel fault LED
Product Type: Industrial Automation Component
General
| Article number |
6ES7132-6BF00-0CA0 |
General information
| Product type designation |
DQ 8x24 V DC/0.5 A HF |
| HW functional status |
From FS07 |
Firmware version
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color-coded label |
CC02 |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
Yes; 250 µs |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V13 SP1 / - |
| ● STEP 7 configurable/integrated from version |
V5.5 / - |
| ● PCS 7 configurable/integrated from version |
V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision |
One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
Operating mode
| ● DQ |
Yes |
| ● DQ with energy-saving function |
No |
| ● PWM |
No |
| ● Oversampling |
No |
| ● MSO |
Yes |
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Input current
| Current consumption (rated value) |
28 mA |
| Current consumption, max. |
28 mA |
Output voltage
Power loss
Address space per module
| ● Address space per module, max. |
8 byte; 2 channels per submodule + QI information |
Hardware configuration
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
Selection of BaseUnit for connection variants
| ● 1-wire connection |
BU type A0 |
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection |
BU type A0 + Potential distributor module |
Digital outputs
| Type of digital output |
Source output (PNP, current-sourcing) |
| Number of digital outputs |
8 |
| Current-sinking |
No |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| Short-circuit protection |
Yes |
| ● Response threshold, typ. |
0.7 to 1.3 A |
| Limitation of inductive shutdown voltage to |
Typ. L+ (-50 V) |
| Controlling a digital input |
Yes |
Switching capacity of the outputs
| ● with resistive load, max. |
0.5 A |
| ● on lamp load, max. |
5 W |
Load resistance range
| ● lower limit |
48 Ω |
| ● upper limit |
12 kΩ |
Output current
| ● for signal "1" rated value |
0.5 A |
| ● for signal "0" residual current, max. |
0.1 mA |
Output delay with resistive load
| ● "0" to "1", typ. |
50 µs |
| ● "1" to "0", typ. |
100 µs |
Parallel switching of two outputs
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
Switching frequency
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
| ● on lamp load, max. |
10 Hz |
Total current of the outputs
| ● Current per channel, max. |
0.5 A |
| ● Current per module, max. |
4 A |
horizontal installation
vertical installation
Cable length
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
Isochronous mode
| Execution and activation time (TCO), min. |
48 µs |
| Bus cycle time (TDP), min. |
500 µs |
Interrupts/diagnostics/status information
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
Alarms
Diagnoses
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
Yes; channel by channel |
| ● Short-circuit |
Yes; channel by channel |
| ● Group error |
Yes |
Diagnostics indication LED
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
Isolation
| Isolation tested with |
707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions |
No |
| Suitable for safety-related tripping of standard modules |
No; see FAQ Entry ID: 39198632 |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
20.4 kg |
| — global warming potential, (during production) [CO2 eq] |
3.16 kg |
| — global warming potential, (during operation) [CO2 eq] |
17.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.221 kg |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS07 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS07 |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Absolute humidity
| ● dew point, min. |
-60 °C; suitable for dry room applications |
Dimensions
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Confirmation |
Yes |
| Miscellaneous |
Yes |
Test Certificates
| Special Test Certificate |
Yes |
other
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| EPD Typ II/III (with life cylce assessment) |
Yes |
| last modified: |
2/1/2026 |
