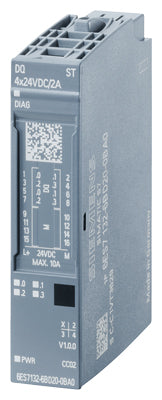

SIMATIC ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, suitable for BU type A0, Color code CC02, Module diagnostics
Product Type: Industrial Automation Component
General
| Article number |
6ES7132-6BD20-0BA0 |
General information
| Product type designation |
DQ 4x24 V DC/2 A ST |
| HW functional status |
FS20 or higher |
| Firmware version |
V1.1.5 |
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color-coded label |
CC02 |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V11 SP2 / V13 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 / - |
| ● PCS 7 configurable/integrated from version |
V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision |
GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
Operating mode
| ● DQ |
Yes |
| ● DQ with energy-saving function |
No |
| ● PWM |
No |
| ● Oversampling |
No |
| ● MSO |
No |
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Input current
| Current consumption, max. |
60 mA; without load |
Output voltage
Power loss
Address space per module
| ● Address space per module, max. |
1 byte; + 1 byte for QI information |
Hardware configuration
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
Selection of BaseUnit for connection variants
| ● 1-wire connection |
BU type A0 |
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection |
BU type A0 + Potential distributor module |
Digital outputs
| Type of digital output |
Source output (PNP, current-sourcing) |
| Number of digital outputs |
4 |
| Current-sinking |
No |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| output type acc. to IEC 61131, type 2 |
Yes |
| Short-circuit protection |
Yes; Electronic |
| ● Response threshold, typ. |
2.8 to 5.2 A |
| Open-circuit detection |
Yes |
| Limitation of inductive shutdown voltage to |
Typ. L+ (-50 V) |
| Controlling a digital input |
Yes |
Switching capacity of the outputs
| ● with resistive load, max. |
2 A |
| ● on lamp load, max. |
10 W |
Load resistance range
| ● lower limit |
12 Ω |
| ● upper limit |
3 400 Ω |
Output current
| ● for signal "1" rated value |
2 A |
| ● for signal "0" residual current, max. |
0.1 mA |
Output delay with resistive load
| ● "0" to "1", typ. |
50 µs |
| ● "0" to "1", max. |
50 µs |
| ● "1" to "0", typ. |
100 µs |
| ● "1" to "0", max. |
100 µs |
Parallel switching of two outputs
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
Switching frequency
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
| ● on lamp load, max. |
10 Hz |
Total current of the outputs
| ● Current per channel, max. |
2 A |
| ● Current per module, max. |
8 A |
horizontal installation
| — up to 40 °C, max. |
8 A |
| — up to 50 °C, max. |
6 A |
| — up to 60 °C, max. |
4 A |
vertical installation
| — up to 30 °C, max. |
8 A |
| — up to 40 °C, max. |
6 A |
| — up to 50 °C, max. |
4 A |
| — up to 60 °C, max. |
4 A |
Cable length
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
Interrupts/diagnostics/status information
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
Alarms
Diagnoses
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
Yes; module-wise |
| ● Short-circuit |
Yes; module-wise |
| ● Group error |
Yes |
Diagnostics indication LED
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
No |
| ● for module diagnostics |
Yes; green/red DIAG LED |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
Isolation
| Isolation tested with |
707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions |
No |
| Suitable for safety-related tripping of standard modules |
Yes; see FAQ Entry ID: 39198632 |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
29.3 kg |
| — global warming potential, (during production) [CO2 eq] |
3.98 kg |
| — global warming potential, (during operation) [CO2 eq] |
25.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.245 kg |
Highest safety class achievable in safety mode
| ● Performance level according to ISO 13849-1 |
PL d |
| ● SIL acc. to IEC 61508 |
SIL 2 |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS08 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS08 |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Absolute humidity
| ● dew point, min. |
-60 °C; suitable for dry room applications |
Dimensions
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| Miscellaneous |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| China RoHS |
Yes |
For use in hazardous locations
| UL |
Yes |
| CCC-Ex |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| Miscellaneous |
Yes |
| IECEx |
Yes |
| Type Examination Certificate |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| last modified: |
3/10/2026 |
