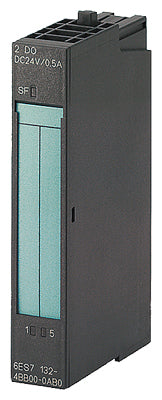

*** Spare part *** SIMATIC DP, 5 electronic modules for ET 200S, 2 DO Standard 24 V DC/0.5 A, 15 mm width, 5 units per packing unit
Product Type: Industrial Automation Component
General
| Article number |
6ES7132-4BB01-0AA0 |
Product function
Supply voltage
| Reverse voltage protection |
Yes; when using the same load voltage as on the power module |
Load voltage L+
| ● Rated value (DC) |
24 V; From power module |
| ● Reverse polarity protection |
Yes; polarity reversal can lead to the digital outputs being connected through |
Input current
| from load voltage L+ (without load), max. |
5 mA; Per channel |
| from backplane bus 3.3 V DC, max. |
10 mA |
Power loss
Address space per module
| ● Address space per module, max. |
1 byte |
| ● with packing |
2 bit |
Digital outputs
| Type of digital output |
Source output (PNP, current-sourcing) |
| Number of digital outputs |
2 |
| Short-circuit protection |
Yes |
| ● Response threshold, typ. |
0.7 to 1.8 A |
| Limitation of inductive shutdown voltage to |
-55 to -60 V, typ. L+( ) |
| Controlling a digital input |
Yes |
Switching capacity of the outputs
Load resistance range
| ● lower limit |
48 Ω |
| ● upper limit |
3 400 Ω |
Output voltage
| ● for signal "1", min. |
L+ (-1 V) |
Output current
| ● for signal "1" rated value |
0.5 A |
| ● for signal "1" permissible range, min. |
7 mA |
| ● for signal "1" permissible range, max. |
600 mA |
| ● for signal "0" residual current, max. |
0.3 mA |
Output delay with resistive load
| ● "0" to "1", max. |
200 µs |
| ● "1" to "0", max. |
1.3 ms |
Parallel switching of two outputs
| ● for uprating |
No |
| ● for redundant control of a load |
Yes; per module |
Switching frequency
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
| ● on lamp load, max. |
10 Hz |
Total current of the outputs
| ● Current per module, max. |
1 A |
Cable length
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
Interrupts/diagnostics/status information
Diagnostics indication LED
| ● Status indicator digital output (green) |
Yes |
Potential separation digital outputs
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
Isolation
| Isolation tested with |
500 V DC |
Dimensions
| Width |
15 mm |
| Height |
81 mm |
| Depth |
52 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| RCM |
Yes |
For use in hazardous locations
| ATEX |
Yes |
| FM |
Yes |
| ATEX |
Yes |
| UL |
Yes |
| ATEX |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| PRS (Polski Register of Shipping) |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
| last modified: |
7/1/2025 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
