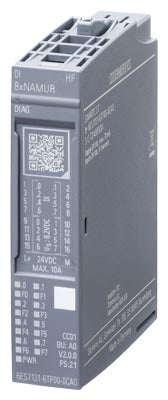

SIMATIC ET 200SP, digital input module, DI 8x NAMUR High Feature, suitable for BU type A0, Color code CC01, channel diagnostics
Product Type: Industrial Automation Component
General
| Article number |
6ES7131-6TF00-0CA0 |
General information
| Product type designation |
DI 8xNAMUR HF |
| HW functional status |
from FS21 |
| Firmware version |
V2.0 or higher |
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color-coded label |
CC01 |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| ● suitable for operation on PROFINET R1 IMs |
Yes |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V19 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 / - |
| ● PROFIBUS from GSD version/GSD revision |
GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.42 |
Operating mode
| ● DI |
Yes |
| ● Counter |
Yes |
| ● Oversampling |
No |
| ● MSI |
No |
Supply voltage
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
Input current
| Current consumption, max. |
70 mA |
Encoder supply
| Number of outputs |
8 |
| Short-circuit protection |
Yes |
24 V encoder supply
| ● 24 V |
No |
| ● Short-circuit protection |
No |
NAMUR encoder supply
| ● 8.2 V |
Yes |
| ● Short-circuit protection |
Yes |
| ● Output current per channel, max. |
8 mA |
| ● Output current per module, max. |
64 mA |
Power loss
Address space per module
| ● Address space per module, max. |
1 byte |
| ● Inputs |
42 byte; 1 byte + 1 byte for QI information in DI mode; 42 bytes in Counter mode |
| ● Outputs |
20 byte; 0 in DI mode; 20 bytes in Counter mode |
Hardware configuration
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
Submodules
| ● Number of configurable submodules, max. |
1 |
Selection of BaseUnit for connection variants
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 |
Digital inputs
| Number of digital inputs |
8; NAMUR |
| Digital inputs, parameterizable |
Yes |
| Sourcing/sinking input |
P-reading |
| Pulse extension |
Yes; 0.5 s, 1 s, 2 s |
| Edge evaluation |
Yes; rising edge, falling edge, edge change |
| Signal change flutter |
Yes; 2 to 32 signal changes |
| Flutter observation window |
Yes; 0.5 s, 1 s to 100 s in 1-s steps |
Digital input functions, parameterizable
| ● Gate start/stop |
Yes |
| ● Freely usable digital input |
Yes |
| ● Counter |
Yes |
| — Number, max. |
4; See manual for details |
| — Counting frequency, max. |
5 kHz |
| — Counting width |
32 bit |
| — Counting direction up/down |
Yes |
Input voltage
for 10 k switched contact
| — for signal "0", min. |
0.35 mA |
| — for signal "0", max. |
1.2 mA |
| — for signal "1", min. |
2.1 mA |
| — for signal "1", max. |
7 mA |
for unswitched contact
| — for signal "0", max. (permissible quiescent current) |
0.5 mA |
| — for signal "1", typ. |
8 mA |
for NAMUR encoders
| — for signal "0", min. |
0.35 mA |
| — for signal "0", max. |
1.2 mA |
| — for signal "1", min. |
2.1 mA |
| — for signal "1", max. |
7 mA |
Input delay (for rated value of input voltage)
| ● tolerated changeover time for changeover contacts |
300 ms |
for standard inputs
for NAMUR inputs
| — at "0" to "1", max. |
20 ms; See manual for details |
| — at "1" to "0", max. |
20 ms; See manual for details |
Cable length
| ● shielded, max. |
200 m; 50 m for Counter mode |
Connectable encoders
| ● NAMUR encoder/changeover contact according to EN 60947 |
Yes |
| ● Single contact / changeover contact unconnected |
Yes |
| ● Single contact / changeover contact connected with 10 kΩ |
Yes |
Interrupts/diagnostics/status information
Alarms
| ● Diagnostic alarm |
Yes; channel by channel |
| ● Hardware interrupt |
Yes; Parameterizable, channels 0 to 7 |
Diagnoses
| ● Diagnostic information readable |
Yes |
| ● Monitoring the supply voltage |
Yes |
| — parameterizable |
Yes |
| ● Monitoring of encoder power supply |
No |
| ● Wire break |
Yes; channel by channel |
| ● Short-circuit |
Yes; channel by channel |
Diagnostics indication LED
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● Between the channels and load voltage L+ |
Yes |
| ● between the channels and the power supply of the electronics |
Yes |
Isolation
| Isolation tested with |
707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions |
No |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
15.9 kg |
| — global warming potential, (during production) [CO2 eq] |
3.69 kg |
| — global warming potential, (during operation) [CO2 eq] |
12.7 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.495 kg |
Ambient temperature during operation
| ● horizontal installation, min. |
-30 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C |
| ● vertical installation, max. |
50 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Absolute humidity
| ● dew point, min. |
-60 °C; suitable for dry room applications |
Dimensions
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| KC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| China RoHS |
Yes |
For use in hazardous locations
| UL |
Yes |
| FM |
Yes |
| CCC-Ex |
Yes |
| ATEX |
Yes |
| Type Examination Certificate |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| last modified: |
2/1/2026 |
