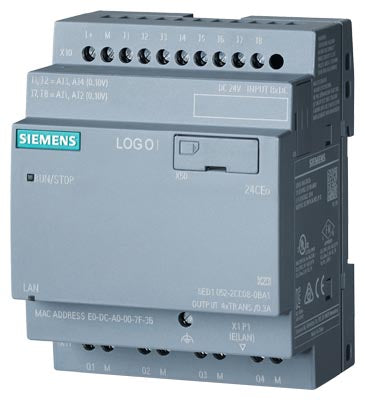

LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units
Product Type: Industrial Automation Component
General
| Article number |
6ED1052-2CC08-0BA2 |
Installation type/mounting
| Mounting |
on 35 mm DIN rail, 4 spacing units wide |
Rated value (DC)
| ● 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
Time switching clocks
| ● Number |
400; Max. 400, function-specific |
| ● Power reserve |
480 h |
Digital inputs
| Number of digital inputs |
8; Of which 4 can be industrial in analog mode (0 to 10 V) |
Digital outputs
| Number of digital outputs |
4; Transistor |
| Short-circuit protection |
Yes; electrical (1 A) |
Output current
| ● for signal "1" permissible range for 0 to 55 °C, max. |
0.3 A |
Emission of radio interference acc. to EN 55 011
| ● Limit class B, for use in residential areas |
Yes; Radio interference suppression according to EN55011, Limit Value Class B |
Standards, approvals, certificates
| Siemens Eco Profile (SEP) |
Siemens EcoTech |
| CE mark |
Yes |
| CSA approval |
Yes; covered by UL cert |
| UL approval |
Yes |
| FM approval |
Yes |
| developed in accordance with IEC 61131 |
Yes |
| according to VDE 0631 |
Yes |
| Marine approval |
Yes |
Ecological footprint
| ● environmental product declaration |
Yes |
Global warming potential
| — global warming potential, (total) [CO2 eq] |
51.5 kg |
| — global warming potential, (during production) [CO2 eq] |
9.64 kg |
| — global warming potential, (during operation) [CO2 eq] |
42.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.364 kg |
Ambient temperature during operation
| ● min. |
-20 °C; No condensation |
| ● max. |
55 °C |
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
70 °C |
Altitude during operation relating to sea level
| ● Ambient air temperature-barometric pressure-altitude |
Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
Dimensions
| Width |
71.5 mm; 4 modular widths (MW) |
| Height |
90 mm |
| Depth |
58 mm |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
General Product Approval
| UK Declaration of Conformity |
Yes |
| EU declaration of conformity |
Yes |
| UL |
Yes |
| RCM |
Yes |
| KC |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
For use in hazardous locations
| CCC-Ex |
Yes |
| UL |
Yes |
| FM |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Environment
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| last modified: |
7/3/2026 |
