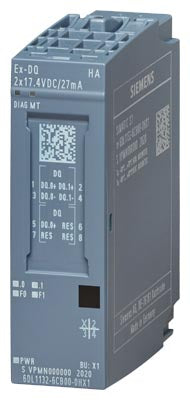

SIMATIC ET 200SP HA, ET 200SP, digital ex-i output module, Ex-DQ 2x17,4VDC/27mA suitable for BaseUnit type X1, channel diagnostics
Product Type: Industrial Automation Component
General
| Article number |
6DL1132-6CB00-0HX1 |
General information
| Product type designation |
Ex-DQ 2x17.4VDC/27mA |
| Firmware version |
V1.0 |
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type X1 |
Product function
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
Engineering with
| ● STEP 7 TIA Portal configurable/integrated from version |
V16 |
| ● STEP 7 configurable/integrated from version |
V5.6 SP2 |
| ● PCS 7 configurable/integrated from version |
V9.1 |
| ● PCS neo can be configured/integrated from version |
V3.1 |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.35 |
Operating mode
Redundancy
| ● Redundancy capability |
No |
Input current
| Current consumption (rated value) |
80 mA; at 27 mA per channel |
| Current consumption, max. |
80 mA; at 27 mA per channel |
Output voltage
| Rated value (DC) |
17.4 V; See output characteristic in manual |
Power loss
Address space per module
| ● Address space per module, max. |
1 byte; + 1 byte for QI information |
Automatic encoding
| ● Mechanical coding element |
Yes |
Selection of BaseUnit for connection variants
| ● 2-wire connection |
BU type X1 |
Digital outputs
| Number of digital outputs |
2 |
| Current-sinking |
No |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| Short-circuit protection |
Yes |
| Open-circuit detection |
Yes; capacitive loads can cause wire-break diagnostics when the channel is switched off |
| Overload protection |
Yes |
| Limitation of inductive shutdown voltage to |
DQ.n- (-1 V) |
Switching capacity of the outputs
| ● with resistive load, max. |
27 mA; See output characteristic in manual |
| ● with inductive load, max. |
27 mA; See output characteristic in manual |
Load resistance range
| ● lower limit |
480 Ω; parallel operation 240 ohm, see output characteristic in manual |
| ● upper limit |
10 kΩ; parallel operation 5 kOhm, see output characteristic in manual |
Output current
| ● for signal "1" rated value |
27 mA |
| ● for signal "0" residual current, max. |
100 µA; 250 µA test current for wire break diagnostics, parallel operation 500 µA |
Output delay with resistive load
| ● "0" to "1", typ. |
50 µs |
| ● "1" to "0", typ. |
100 µs |
Parallel switching of two outputs
Switching frequency
| ● with resistive load, max. |
500 Hz |
| ● with inductive load, max. |
500 Hz |
Total current of the outputs
| ● Current per channel, max. |
27 mA |
| ● Current per module, max. |
54 mA |
horizontal installation
| — up to 70 °C, max. |
54 mA |
vertical installation
| — up to 60 °C, max. |
54 mA |
Cable length
| ● shielded, max. |
500 m; Ex characteristic values must be observed |
| ● unshielded, max. |
500 m; Ex characteristic values must be observed |
Interrupts/diagnostics/status information
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
Alarms
| ● Diagnostic alarm |
Yes |
| ● Maintenance interrupt |
Yes |
Diagnoses
| ● Diagnostic information readable |
Yes |
| ● Monitoring the supply voltage |
Yes |
| — Parameterizable |
Yes |
| ● Wire break |
Yes; channel by channel |
| ● Short-circuit |
Yes; channel by channel |
| ● Group error |
Yes |
Diagnostics indication LED
| ● MAINT LED |
Yes; Yellow LED |
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
maximum values for connecting terminals for gas group IIC
| ● Uo (no-load voltage), max. |
19.4 V |
| ● Io (short-circuit current), max. |
133 mA; parallel operation 266 mA |
| ● Po (power output), max. |
645 mW; parallel operation 1 290 mW |
| ● Co (permissible external capacity), max. |
232 nF; parallel operation 220 nF |
| ● Lo (permissible external inductivity), max. |
1.9 mH; parallel operation 328 uH |
| ● Um (voltage at non-intrinsically safe connecting terminals), max. |
60 V |
Potential separation channels
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
Yes; Electrical isolation between the channels and input voltage PME |
Isolation
| Isolation tested with |
further information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual |
| insulation of the field circuits to local ground acc. to IEC/EN 60079-11 tested with |
707 V DC (type test) |
Ambient temperature during operation
| ● horizontal installation, min. |
-40 °C |
| ● horizontal installation, max. |
70 °C |
| ● vertical installation, min. |
-40 °C |
| ● vertical installation, max. |
60 °C |
Altitude during operation relating to sea level
| ● Installation altitude above sea level, max. |
2 000 m |
Dimensions
| Width |
20 mm |
| Height |
73 mm |
| Depth |
58 mm |
Weights
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| Manufacturer Declaration |
Yes |
For use in hazardous locations
| CCC |
Yes |
| UL |
Yes |
| Miscellaneous |
Yes |
| IECEx |
Yes |
| ATEX |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
| CCS (China Classification Society) |
Yes |
Environment
| Siemens EcoTech Profile (SEP) |
Yes |
| EPD Typ II/III (with life cylce assessment) |
Yes |
| last modified: |
10/23/2025 |
