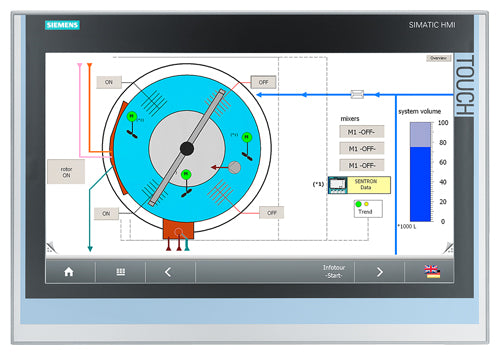

*** spare part *** SIMATIC IFP1900 Flat Panel 19" display (16: 9), touch, standard up to 5 m, 1366x 768 pixels, for 24 V DC, display port/DVI interface including DVI/USB cable 1.8 m
Product Type: Industrial Automation Component
General
| Article number |
6AV7863-3TA00-0AA0 |
General information
| Product type designation |
IFP1900 |
| Short designation |
Flat Panel 19" touch |
Display
| Design of display |
TFT widescreen display, LED backlighting |
| Screen diagonal |
18.5 in; 19" |
| Screen diagonal [cm] |
47 cm |
| Display width |
409.8 mm |
| Display height |
230.4 mm |
| On Screen Display (OSD) configuration |
No; Adjustable by means of software |
| Number of colors |
16 777 216; 24 bit |
| Viewing angle |
170° x 160° |
Resolution (pixels)
| ● Image resolution |
1 366 x 768 |
| ● Horizontal image resolution |
1 366 pixel |
| ● Vertical image resolution |
768 pixel |
| ● Pixel size, horizontal |
0.3 mm |
| ● Pixel size, vertical |
0.3 mm |
General features
| ● Brightness/contrast |
300 cd/m² / 1 000:1 |
| ● Detachable from computer unit |
5 m |
| ● Luminance |
300 cd/m² |
Backlighting
| ● Type of backlighting |
LED |
| ● MTBF backlighting (at 25 °C) |
50 000 h; At 25°C |
| ● Backlight dimmable |
Yes; 0-100 % |
Control elements
| Control elements |
single-touch screen |
Input device
| ● Integrated mouse cursor control |
No |
Touch operation
| ● Design as touch screen |
Yes; Analog-resistive |
| ● Monitor keyboard |
Yes |
Installation type/mounting
| Design |
Built-in unit |
| Front mounting |
Yes |
| Built-in unit |
Yes; Portrait mode possible |
| maximum permitted forward tilt angle from vertical |
35° |
| maximum permitted backward tilt angle from vertical |
35° |
Supply voltage
| Type of supply voltage |
DC |
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
Power loss
| Power loss, typ. |
40 W |
| Power loss, max. |
65 W |
Video interfaces
| ● DVI-D |
Yes |
| ● DisplayPort |
Yes; DisplayPort V1.1 |
Touch interfaces
Degree and class of protection
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
NEMA (front)
| ● Enclosure Type 4 at the front |
Yes |
Standards, approvals, certificates
| CE mark |
Yes |
| cULus |
Yes; Corresponds to UL 508 |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
Use in hazardous areas
| ● FM Class I Division 2 |
Yes |
Ambient temperature during operation
| ● min. |
0 °C |
| ● max. |
45 °C; Vertical installation (horizontal) |
Ambient temperature during storage/transportation
| ● min. |
-20 °C |
| ● max. |
60 °C |
Relative humidity
| ● Operation, max. |
95 %; no condensation |
Vibrations
| ● Vibration load in operation |
10 m/s² |
| ● Vibration load during transport/storage |
10 m/s² |
Shock testing
| ● Shock load during operation |
150 m/s² |
| ● shock acceleration during storage/transport |
150 m/s² |
Enclosure material (front)
Dimensions
| Width of the housing front |
483 mm |
| Height of housing front |
337 mm |
| Mounting cutout, width |
465 mm; Tolerance: +1 mm |
| Mounting cutout, height |
319 mm; Tolerance: +1 mm |
| mounting depth |
62.5 mm |
Weights
| Weight (without packaging) |
5.5 kg |
| Weight (with packaging) |
6.5 kg |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| Miscellaneous |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EU declaration of conformity |
Yes |
| China RoHS |
Yes |
| UK Declaration of Conformity |
Yes |
| RCM |
Yes |
For use in hazardous locations
| FM |
Yes |
| UL |
Yes |
| last modified: |
8/24/2025 |
