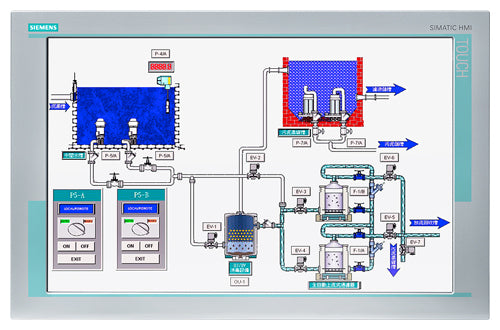

*** spare part *** SIMATIC HMI SCD1900 industrial operating unit 19-inch wide touch screen with 1440x 900 pixels resolution for 24 V DC VGA, DVI-D interface, including DVI cable 1.8 m
Product Type: Industrial Automation Component
General
| Article number |
6AV7862-2TA00-1AA0 |
General information
| Product type designation |
SCD1900 |
| Short designation |
Flat Panel 19" touch |
Display
| Design of display |
TFT widescreen display, LED backlighting |
| Screen diagonal |
18.5 in; 19" |
| Display width |
255 mm |
| Display height |
408 mm |
| On Screen Display (OSD) configuration |
Yes |
| Number of colors |
16 777 216; 24 bit |
| Viewing angle |
160° x 170° |
Resolution (pixels)
| ● Image resolution |
1 440 x 900 |
| ● Horizontal image resolution |
1 440 pixel |
| ● Vertical image resolution |
900 pixel |
General features
| ● Brightness/contrast |
300 cd/m² / 1 000:1 |
| ● Detachable from computer unit |
5 m |
| ● Luminance |
300 cd/m² |
Backlighting
| ● Type of backlighting |
LED |
| ● MTBF backlighting (at 25 °C) |
50 000 h; At 25°C |
Control elements
| Control elements |
single-touch screen |
Input device
| ● Integrated mouse cursor control |
No |
Touch operation
| ● Design as touch screen |
Yes; Analog-resistive |
| ● Monitor keyboard |
Yes |
Installation type/mounting
| Design |
Built-in unit |
| Front mounting |
Yes |
| VESA mounting |
No |
| Built-in unit |
Yes |
Supply voltage
| Type of supply voltage |
DC |
| permissible range, lower limit (DC) |
18 V |
| permissible range, upper limit (DC) |
36 V |
Video interfaces
Touch interfaces
Degree and class of protection
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
Standards, approvals, certificates
| CE mark |
Yes; Industry |
| UL approval |
Yes |
| cULus |
Yes |
Ambient temperature during operation
Ambient temperature during storage/transportation
| ● min. |
-20 °C |
| ● max. |
60 °C |
Shock testing
| ● Shock load during operation |
100 m/s² |
| ● shock acceleration during storage/transport |
100 m/s² |
Enclosure material (front)
Dimensions
| Width of the housing front |
483 mm |
| Height of housing front |
310 mm |
| mounting depth |
67 mm |
Weights
| Weight (without packaging) |
6 kg |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| CCC |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| KC |
Yes |
| last modified: |
8/24/2025 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
