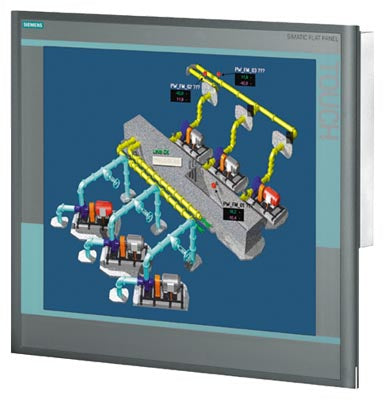

*** no longer available *** SIMATIC Flat Panel 19, 19-inch TFT screen with 1280x 1024 pixels resolution for 24 V DC, VGA, DVI-D interface, including VGA cable 1.8 m
Product Type: Industrial Automation Component
General
| Article number |
6AV7861-3AA00-2AA0 |
General information
| Product type designation |
Flat Panel |
Display
| Design of display |
TFT display, LED backlighting |
| Screen diagonal |
18.5 in; 19" |
| Display width |
376.3 mm |
| Display height |
301.1 mm |
| On Screen Display (OSD) configuration |
Yes |
| Number of colors |
16 000 000; 16.7 million |
| Viewing angle |
170° x 170° |
Resolution (pixels)
| ● Image resolution |
1 280 x 1 024 |
| ● Horizontal image resolution |
1 280 pixel |
| ● Vertical image resolution |
1 024 pixel |
General features
| ● Brightness/contrast |
> 300 cd/m² / 300:1 |
| ● Detachable from computer unit |
5 m |
Backlighting
| ● Type of backlighting |
LED, dimmable |
| ● MTBF backlighting (at 25 °C) |
50 000 h; At 25°C |
| ● Backlight dimmable |
Yes; 0-100 % |
Control elements
Input device
| ● Integrated mouse cursor control |
No |
Touch operation
| ● Design as touch screen |
No |
Installation type/mounting
| Design |
Built-in unit |
| Front mounting |
Yes |
| VESA mounting |
No |
| Built-in unit |
Yes; Portrait mode possible |
| maximum permitted forward tilt angle from vertical |
35°; max. 40°C |
| maximum permitted backward tilt angle from vertical |
70°; max. 40°C |
Supply voltage
| Type of supply voltage |
DC |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
Video interfaces
Degree and class of protection
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
Standards, approvals, certificates
| CE mark |
Yes |
| CSA approval |
Yes |
| UL approval |
Yes |
| EAC (formerly Gost-R) |
No |
Marine approval
| ● Germanischer Lloyd (GL) |
Yes; Optional |
| ● American Bureau of Shipping (ABS) |
Yes; Optional |
| ● Bureau Veritas (BV) |
Yes; Optional |
| ● Det Norske Veritas (DNV) |
Yes; Optional |
| ● Lloyds Register of Shipping (LRS) |
Yes; Optional |
Ambient temperature during operation
Ambient temperature during storage/transportation
| ● min. |
-20 °C |
| ● max. |
70 °C |
Enclosure material (front)
Dimensions
| Width of the housing front |
483 mm |
| Height of housing front |
400 mm |
| Mounting cutout, width |
450 mm |
| Mounting cutout, height |
380 mm |
| mounting depth |
57 mm |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
General Product Approval
| Miscellaneous |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
| RCM |
Yes |
| last modified: |
5/22/2024 |
