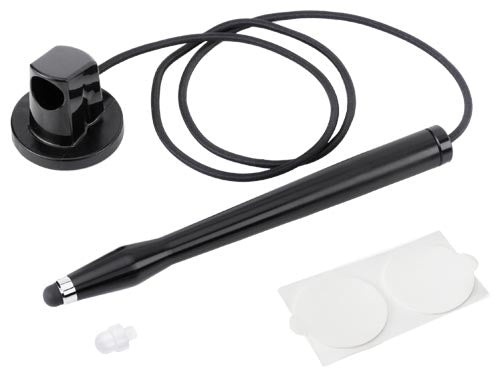

touch pen system ELO for capacitive or resistive touch screen, ELO pen, including holder, for screwing on or gluing, for capacitive and resistive touch screens, scope of supply: 1 touch pen with cap resistive/capacitive, 1 resistive cap (in touch pen), 1 holding cord, 1 wall holder
Product Type: Industrial Automation Component
General
| Article number |
6AV6881-0AV21-0AA0 |
General information
| Product type designation |
universal touch pen system (resistive/capacitive), including support |
Touch operation
| ● operator help touch operation design (resistive) |
Yes |
| ● operator help touch operation design (capacitive) |
Yes |
Frame size/design
| ● Standard |
Yes; For industrial applications |
| ● Exceptional |
Yes; Spare caps can be stowed in the pen |
| ● Ergonomic |
Yes; With holder |
Installation type/mounting
| Mounting type |
Wall-mounting bracket can be mounted with mounting disk, 2x M3 screw or adhesive pads |
| Mounting position |
Horizontal |
| Front mounting |
Yes; also optimized for PRO Extension Unit 22.5 mm opening (from HS01) |
| Wall mounting/direct mounting |
Yes; using approx. 60 cm retaining cord |
Degree and class of protection
| IP (at the front) |
IP65 (depending on mounting) |
Standards, approvals, certificates
| CE mark |
No; No CE marking obligation |
| REACH |
Yes; Threaded insert screw tip - according to Article 33 of the REACH Regulation, we hereby inform you that the threaded insert supplied by us contains a substance included on the REACH Candidate List (SVHC). The substance in question is lead. CAS number: 7439-92-1 / EC number: 231-100-4 |
| RoHS conformity |
Yes |
Ambient conditions
| Suited for indoor use |
Yes |
| Suited for outdoor use |
Yes; only suitable under certain conditions due to different environmental conditions; replacement cycle can be increased |
Ambient temperature during operation
| ● min. |
-40 °C; at temperatures below 10 °C and above 30 °C, the use of suitable gloves is recommended |
| ● max. |
80 °C; at temperatures below 10 °C and above 30 °C, the use of suitable gloves is recommended |
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
80 °C |
Relative humidity
Material
| ● plastic |
Yes; Attachment cord |
| ● Aluminum |
Yes; pen, anodized |
Enclosure material (front)
| ● Plastic |
Yes; pen holder |
| Color |
black, anodized |
| Enclosure color (front) |
Black |
Dimensions
| Length |
150 mm |
| Diameter |
14 mm |
| Enclosure diameter |
37 mm; Diameter wall-mounting bracket |
| Mounting cutout, height |
39 mm; Height wall-mounting bracket |
Weights
| Weight (without packaging) |
0.13 kg |
| Weight (with packaging) |
0.14 kg |
Scope of supply
| Delivery quantity in pieces |
1; 1x touch pen, 1x attachment cord, 1x resistive/capacitive cap, 1x resistive cap (in the touch pen), 1x complete wall bracket |
Other
| Merchandise |
Yes; ELO touch pen, small |
| Manufacturer name |
QUERUM products UG |
| Manufacturer's address |
Wirtsstr. 23, 85110 Kipfenberg-Böhming, Germany |
| contacting the manufacturer |
email: querumproducts@web.de |
| Target devices |
For common capacitive and resistive touch systems |
| Note: |
length of the interconnecting lead approx. 55 cm ... 62 cm |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
| IDEA |
4 |
| UNSPSC |
15 |
other
Usable in the following products: Detailed information can be found in the cross-list, which is available for download in the following SIOS note: 40466415
https://support.industry.siemens.com/cs/document/40466415/status-of-the-simatic-hmi-accessories-and-cross-list-update?dti=0&lc=en-WW
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
