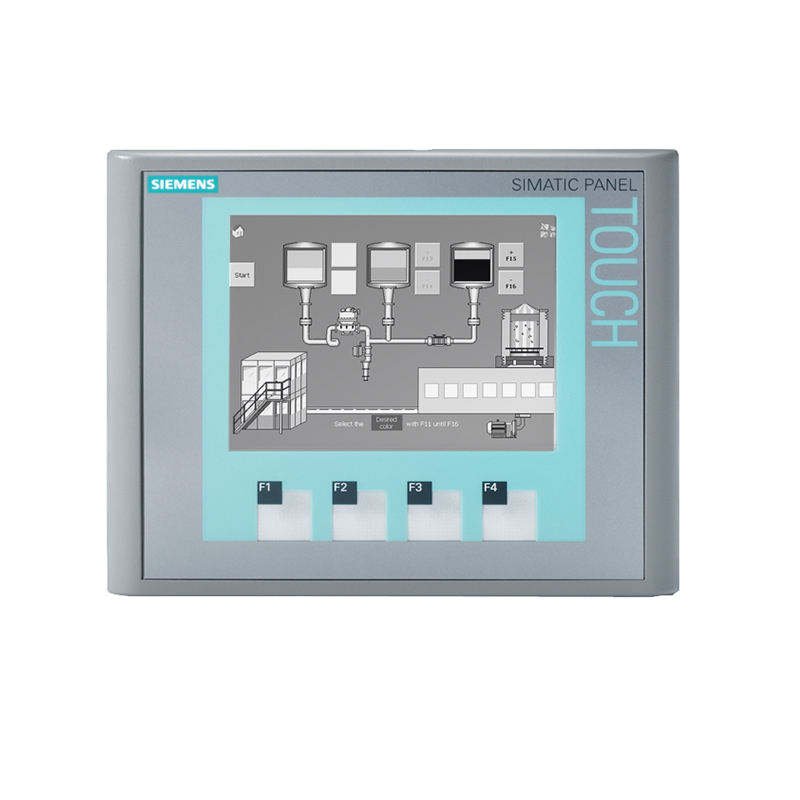

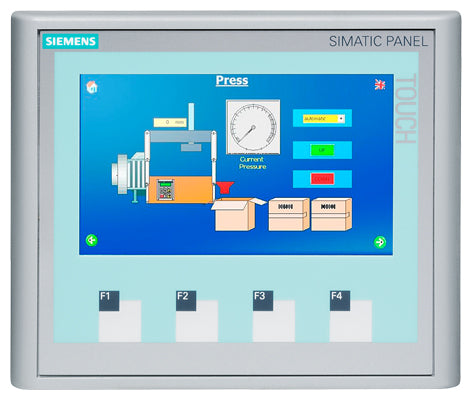

SIMATIC HMI KTP400 Basic Color PN, Basic Panel, key/touch operation, 4" widescreen TFT display, 256 colors, PROFINET interface, configurable from WinCC Basic V11 SP2/ STEP 7 Basic V11 SP2, contains open-source software, which is provided free of charge see enclosed CD

Product Type: Industrial Automation Component

General

Article number 6AV6647-0AK11-3AX1

General information

Product type designation KTP400 Basic color PN

Display

Design of display TFT
Screen diagonal 4.3 in
Display width 95 mm
Display height 53.8 mm
Number of colors 256

Resolution (pixels)

● Horizontal image resolution 480 pixel
● Vertical image resolution 272 pixel

Backlighting

● MTBF backlighting (at 25 °C) 50 000 h
● Backlight dimmable No

● Function keys

— Number of function keys 4
— Number of function keys with LEDs 0
● Keys with LED No
● System keys No
● Numeric keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes; Analog-resistive

Installation type/mounting

Mounting position vertical
Wall mounting/direct mounting No
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
maximum permissible angle of inclination without external ventilation 35°

Supply voltage

Type of supply voltage DC
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 0.1 A
Starting current inrush I²t 0.5 A²·s

Power

Active power input, typ. 2 W

Processor

Processor type RISC 32 bit

Storage

Flash Yes
RAM Yes
Memory available for user data 1 Mbyte

Acoustics

● Buzzer Yes
● Speaker No

Clock

● Hardware clock (real-time) No
● Software clock Yes
● retentive No
● synchronizable Yes

Interfaces

Number of industrial Ethernet interfaces 1
Number of RS 485 interfaces 0
Number of RS 422 interfaces 0
Number of RS 232 interfaces 0
Number of USB interfaces 0
Number of 20 mA interfaces (TTY) 0
Number of parallel interfaces 0
Number of other interfaces 0
Number of SD card slots 0
With software interfaces No

Industrial Ethernet

● Industrial Ethernet status LED 2

Protocols

PROFINET Yes
PROFINET IO No
IRT No
PROFIBUS No
EtherNet/IP Yes
MPI No

Protocols (Ethernet)

● TCP/IP Yes
● DHCP Yes
● SNMP Yes
● DCP Yes
● LLDP Yes

WEB characteristics

● HTTP No
● HTML No

Further protocols

● CAN No
● MODBUS Yes; Modicon (MODBUS TCP/IP)

Diagnoses

● Diagnostic information readable No

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes
● Limit class B, for use in residential areas No

Degree and class of protection

IP (at the front) IP65
IP (rear) IP20

NEMA (front)

● Enclosure Type 4 at the front Yes
● Enclosure Type 4x at the front Yes

Standards, approvals, certificates

CE mark Yes
cULus Yes
RCM (formerly C-TICK) Yes
KC approval Yes

Use in hazardous areas

● ATEX Zone 2 No
● ATEX Zone 22 No
● cULus Class I Zone 1 No
● cULus Class I Zone 2, Division 2 No
● FM Class I Division 2 No

Marine approval

● Germanischer Lloyd (GL) No
● American Bureau of Shipping (ABS) No
● Bureau Veritas (BV) No
● Det Norske Veritas (DNV) No
● Lloyds Register of Shipping (LRS) No
● Nippon Kaiji Kyokai (Class NK) No
● Polski Rejestr Statkow (PRS) No

Operation (vertical installation)

— For vertical installation, min. 0 °C
— For vertical installation, max. 50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min. 0 °C
— At maximum tilt angle, max. 40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min. 0 °C
— For vertical installation, max. 40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min. 0 °C
— At maximum tilt angle, max. 35 °C

Ambient temperature during storage/transportation

● min. -20 °C
● max. 60 °C

Relative humidity

● Operation, max. 90 %; no condensation

Operating systems

proprietary Yes

pre-installed operating system

● Windows CE No

Configuration

Message indicator Yes
Alarm system (incl. buffer and acknowledgment) Yes
Process value display (output) Yes
Process value default (input) possible Yes
Recipe management Yes

Configuration software

● STEP 7 Basic (TIA Portal) Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal) Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible Compact No
● WinCC flexible Standard No
● WinCC flexible Advanced No
● WinCC Basic (TIA Portal) Yes
● WinCC Comfort (TIA Portal) Yes
● WinCC Advanced (TIA Portal) Yes
● WinCC Professional (TIA Portal) Yes

Online languages

● Number of online/runtime languages 5

Project languages

● Languages per project 32

Functionality under WinCC (TIA Portal)

Libraries Yes

Task planner

● time-controlled No
● task-controlled Yes
Help system Yes
● Number of characters per info text 320

Message system

● Number of alarm classes 32

● Bit messages

— Number of bit messages 200

● Analog messages

— Number of analog messages 15
● System messages HMI Yes
● Number of characters per message 80
● Number of process values per message 8
● Message indicator Yes

● Message buffer

— Number of entries 256
— Circulating buffer Yes
— retentive Yes
— maintenance-free Yes

Recipe management

● Number of recipes 5
● Data records per recipe 20
● Entries per data record 20
● Size of internal recipe memory 40 kbyte
● Recipe memory expandable No

Variables

● Number of variables per device 500
● Number of variables per screen 30
● Limit values Yes
● Multiplexing Yes
● Structures No
● Arrays Yes

Images

● Number of configurable images 50
● Permanent window/default Yes; No permanent window can be configured
● Global image Yes
● Image selection by PLC Yes
● Image number in the PLC Yes

Image objects

● Number of objects per image 30
● Text fields Yes
● I/O fields Yes
● Graphic I/O fields (graphics list) Yes
● Symbolic I/O fields (text list) Yes
● Date/time fields Yes
● Switches Yes
● Buttons Yes
● Graphic display Yes
● Icons Yes; Predefined screen objects
● Geometric objects Yes

Complex image objects

● Number of complex objects per screen 5
● Alarm view Yes
● Trend view Yes
● User view Yes
● Status/control No
● Sm@rtClient view No
● Recipe view Yes
● f(x) trend view No
● System diagnostics view No
● Media Player No
● Bar graphs Yes
● Sliders No
● Pointer instruments No
● Analog/digital clock No

Lists

● Number of text lists per project 150
● Number of entries per text list 30
● Number of graphics lists per project 100
● Number of entries per graphics list 30

Archiving

● Number of archives per device 0

Security

● Number of user groups 50
● Number of user rights 32
● Number of users 50
● Password export/import No
● SIMATIC Logon No

● Keyboard fonts

— US English Yes

Transfer (upload/download)

● MPI/PROFIBUS DP No
● USB No
● Ethernet Yes
● using external storage medium No

Process coupling

● S7-1200 Yes
● S7-1500 Yes
● S7-200 Yes
● S7-300/400 Yes
● LOGO! Yes
● WinAC No
● SINUMERIK No
● SIMOTION No
● Allen Bradley (EtherNet/IP) Yes
● Allen Bradley (DF1) No
● Mitsubishi (MC TCP/IP) Yes
● Mitsubishi (FX) No
● OMRON (FINS TCP) No
● OMRON (Host Link) No
● Modicon (Modbus TCP/IP) Yes
● Modicon (Modbus RTU) No

Service tools/configuration aids

● Backup/Restore manually Yes
● Backup/Restore automatically No
● Simulation Yes
● Device switchover Yes

Peripherals/Options

Printer No
SIMATIC HMI MM memory card: Multi Media Card No
SIMATIC HMI SD memory card: Secure Digital memory card No
USB memory No

Enclosure material (front)

● Plastic Yes
● Aluminum No
● Stainless steel No

Dimensions

Width of the housing front 140 mm
Height of housing front 116 mm
Mounting cutout, width 123 mm
Mounting cutout, height 99 mm
mounting depth 33 mm

Weights

Weight (without packaging) 0.34 kg
Weight (with packaging) 0.45 kg

Classifications

Version Classification
eClass 16
eClass 14
eClass 12
eClass 9.1
eClass 9
eClass 8
eClass 7.1
eClass 6
ETIM 10
ETIM 9
ETIM 8
ETIM 7

General Product Approval

EU declaration of conformity Yes
UK Declaration of Conformity Yes
Manufacturer Declaration Yes
Miscellaneous Yes
UL Yes
RCM Yes
EAC Yes
China RoHS Yes

Maritime application

ABS (American Bureau of Shipping) Yes
CCS (China Classification Society) Yes

Environment

China RoHS Yes
last modified: 3/12/2024

Applications

This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
