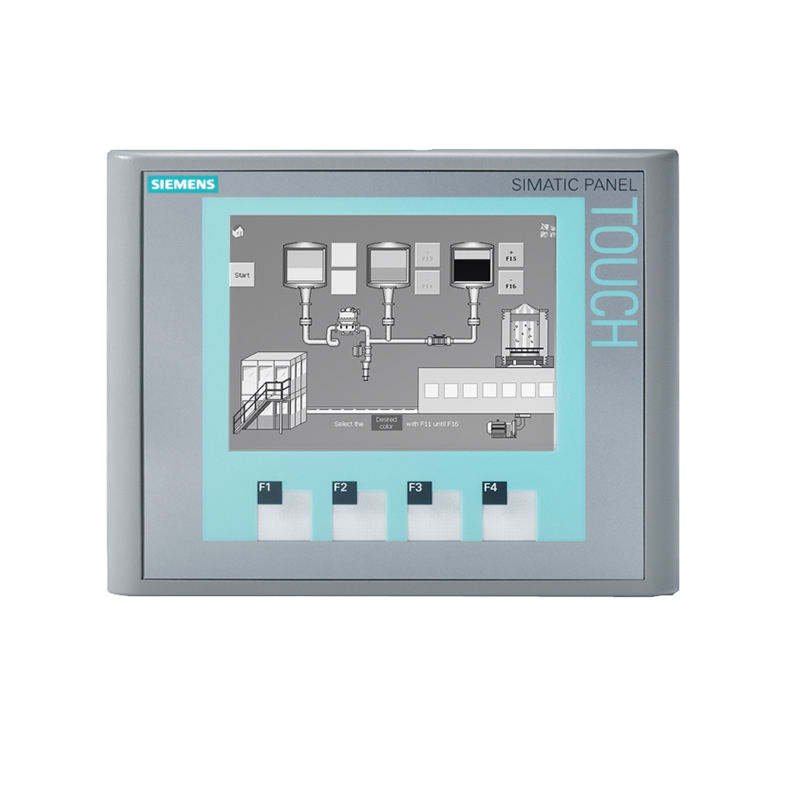

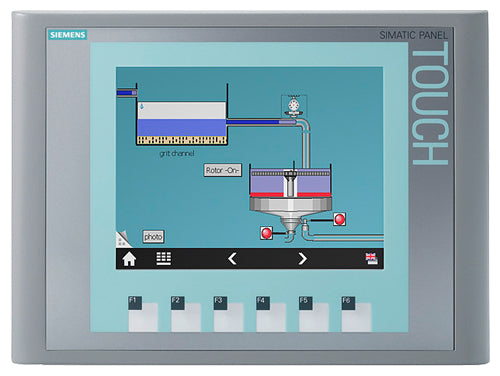

SIMATIC HMI KTP600 Basic Color PN, Basic Panel, key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD
Product Type: Industrial Automation Component
General
| Article number |
6AV6647-0AD11-3AX1 |
General information
| Product type designation |
KTP600 Basic color PN |
Display
| Design of display |
TFT |
| Screen diagonal |
5.7 in |
| Display width |
115.2 mm |
| Display height |
86.4 mm |
| Number of colors |
256 |
Resolution (pixels)
| ● Horizontal image resolution |
320 pixel |
| ● Vertical image resolution |
240 pixel |
Backlighting
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| ● Backlight dimmable |
No |
● Function keys
| — Number of function keys |
6 |
| — Number of function keys with LEDs |
0 |
| ● Keys with LED |
No |
| ● System keys |
No |
| ● Numeric keyboard |
Yes; Onscreen keyboard |
| ● alphanumeric keyboard |
Yes; Onscreen keyboard |
Touch operation
| ● Design as touch screen |
Yes; Analog-resistive |
Installation type/mounting
| Mounting position |
vertical |
| Rack mounting |
No |
| Wall mounting/direct mounting |
No |
| Mounting in portrait format possible |
Yes |
| Mounting in landscape format possible |
Yes |
| maximum permissible angle of inclination without external ventilation |
35° |
Supply voltage
| Type of supply voltage |
DC |
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
Input current
| Current consumption (rated value) |
0.35 A |
| Starting current inrush I²t |
0.5 A²·s |
Power
| Active power input, typ. |
9 W |
Processor
| Processor type |
RISC 32 bit |
Storage
| Flash |
Yes |
| RAM |
Yes |
| Memory available for user data |
1 Mbyte |
Acoustics
| ● Buzzer |
Yes |
| ● Speaker |
No |
Clock
| ● Hardware clock (real-time) |
No |
| ● Software clock |
Yes |
| ● retentive |
No |
| ● synchronizable |
Yes |
Interfaces
| Number of industrial Ethernet interfaces |
1 |
| Number of RS 485 interfaces |
0 |
| Number of RS 422 interfaces |
0 |
| Number of RS 232 interfaces |
0 |
| Number of USB interfaces |
0 |
| Number of 20 mA interfaces (TTY) |
0 |
| Number of parallel interfaces |
0 |
| Number of other interfaces |
0 |
| Number of SD card slots |
0 |
| With software interfaces |
No |
Industrial Ethernet
| ● Industrial Ethernet status LED |
2 |
Protocols
| PROFINET |
Yes |
| PROFINET IO |
No |
| IRT |
No |
| PROFIBUS |
No |
| EtherNet/IP |
Yes |
| MPI |
No |
Protocols (Ethernet)
| ● TCP/IP |
Yes |
| ● DHCP |
Yes |
| ● SNMP |
Yes |
| ● DCP |
Yes |
| ● LLDP |
Yes |
WEB characteristics
Further protocols
| ● CAN |
No |
| ● MODBUS |
Yes; Modicon (MODBUS TCP/IP) |
Diagnoses
| ● Diagnostic information readable |
No |
Degree and class of protection
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
NEMA (front)
| ● Enclosure Type 4 at the front |
Yes |
| ● Enclosure Type 4x at the front |
Yes |
Standards, approvals, certificates
| CE mark |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
Use in hazardous areas
| ● ATEX Zone 2 |
No; valid only when stated on the device nameplate! |
| ● ATEX Zone 22 |
No; valid only when stated on the device nameplate! |
| ● IECEx Zone 2 |
No; valid only when stated on the device nameplate! |
| ● IECEx Zone 22 |
No; valid only when stated on the device nameplate! |
| ● cULus Class I Zone 1 |
No; valid only when stated on the device nameplate! |
| ● cULus Class I Zone 2, Division 2 |
No; valid only when stated on the device nameplate! |
| ● cULus Class II Division 2 |
No; valid only when stated on the device nameplate! |
| ● FM Class I Division 2 |
No; valid only when stated on the device nameplate! |
| ● FM Class II Division 2 |
No; valid only when stated on the device nameplate! |
Marine approval
| ● Germanischer Lloyd (GL) |
No |
| ● American Bureau of Shipping (ABS) |
No |
| ● Bureau Veritas (BV) |
No |
| ● Det Norske Veritas (DNV) |
No |
| ● Korean Register of Shipping (KRS) |
No |
| ● Lloyds Register of Shipping (LRS) |
No |
| ● Nippon Kaiji Kyokai (Class NK) |
No |
| ● Polski Rejestr Statkow (PRS) |
No |
| ● Chinese Classification Society (CCS) |
No |
Ambient conditions
| Suited for indoor use |
Yes |
| Suited for outdoor use |
No |
Operation (vertical installation)
| — For vertical installation, min. |
0 °C |
| — For vertical installation, max. |
50 °C |
Operation (max. tilt angle)
| — At maximum tilt angle, min. |
0 °C |
| — At maximum tilt angle, max. |
40 °C |
Operation (vertical installation, portrait format)
| — For vertical installation, min. |
0 °C |
| — For vertical installation, max. |
50 °C |
Operation (max. tilt angle, portrait format)
| — At maximum tilt angle, min. |
0 °C |
| — At maximum tilt angle, max. |
40 °C |
Ambient temperature during storage/transportation
| ● min. |
-20 °C |
| ● max. |
60 °C |
Relative humidity
| ● Operation, max. |
90 %; no condensation |
Operating systems
pre-installed operating system
Configuration
| Message indicator |
Yes |
| Alarm system (incl. buffer and acknowledgment) |
Yes |
| Process value display (output) |
Yes |
| Process value default (input) possible |
Yes |
| Recipe management |
Yes |
Configuration software
| ● STEP 7 Basic (TIA Portal) |
Yes; via integrated WinCC Basic (TIA Portal) |
| ● STEP 7 Professional (TIA Portal) |
Yes; via integrated WinCC Basic (TIA Portal) |
| ● WinCC flexible Compact |
Yes |
| ● WinCC flexible Standard |
Yes |
| ● WinCC flexible Advanced |
Yes |
| ● WinCC Basic (TIA Portal) |
Yes |
| ● WinCC Comfort (TIA Portal) |
Yes |
| ● WinCC Advanced (TIA Portal) |
Yes |
| ● WinCC Professional (TIA Portal) |
Yes |
Online languages
| ● Number of online/runtime languages |
5 |
Project languages
| ● Languages per project |
32 |
Functionality under WinCC (TIA Portal)
| Libraries |
Yes |
| Applications/options |
none |
| ● Web browser |
No |
| ● SIMATIC WinCC Sm@rtServer |
No |
Task planner
| ● time-controlled |
No |
| ● task-controlled |
Yes |
Help system
| ● Number of characters per info text |
320 |
Message system
| ● Number of alarm classes |
32 |
| ● Bit messages |
Yes |
| — Number of bit messages |
200 |
| ● Analog messages |
Yes |
| — Number of analog messages |
15 |
| ● System messages HMI |
Yes |
| ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) |
No |
| ● Number of characters per message |
80 |
| ● Number of process values per message |
8 |
| ● Message indicator |
Yes |
● Message buffer
| — Number of entries |
256 |
| — Circulating buffer |
Yes |
| — retentive |
Yes |
| — maintenance-free |
Yes |
Recipe management
| ● Number of recipes |
5 |
| ● Data records per recipe |
20 |
| ● Entries per data record |
20 |
| ● Size of internal recipe memory |
40 kbyte |
| ● Recipe memory expandable |
No |
Variables
| ● Number of variables per device |
500 |
| ● Number of variables per screen |
30 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structures |
No |
| ● Arrays |
Yes |
Images
| ● Number of configurable images |
50 |
| ● Permanent window/default |
Yes |
| ● Global image |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
Image objects
| ● Number of objects per image |
30 |
| ● Text fields |
Yes |
| ● I/O fields |
Yes |
| ● Graphic I/O fields (graphics list) |
Yes |
| ● Symbolic I/O fields (text list) |
Yes |
| ● Date/time fields |
Yes |
| ● Switches |
Yes |
| ● Buttons |
Yes |
| ● Graphic display |
Yes |
| ● Icons |
Yes |
| ● Geometric objects |
Yes |
Complex image objects
| ● Number of complex objects per screen |
5 |
| ● Alarm view |
Yes |
| ● Trend view |
Yes |
| ● User view |
Yes |
| ● Status/control |
No |
| ● Sm@rtClient view |
No |
| ● Recipe view |
Yes |
| ● f(x) trend view |
No |
| ● System diagnostics view |
No |
| ● Media Player |
No |
| ● Bar graphs |
Yes |
| ● Sliders |
No |
| ● Pointer instruments |
No |
| ● Analog/digital clock |
No |
Lists
| ● Number of text lists per project |
150 |
| ● Number of entries per text list |
30 |
| ● Number of graphics lists per project |
100 |
| ● Number of entries per graphics list |
30 |
Archiving
| ● Number of archives per device |
0 |
Security
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Number of users |
50 |
| ● Password export/import |
No |
| ● SIMATIC Logon |
No |
● Keyboard fonts
Transfer (upload/download)
| ● MPI/PROFIBUS DP |
No |
| ● USB |
No |
| ● Ethernet |
Yes |
| ● using external storage medium |
No |
Process coupling
| ● S7-1200 |
Yes |
| ● S7-1500 |
Yes |
| ● S7-200 |
Yes |
| ● S7-300/400 |
Yes |
| ● LOGO! |
Yes |
| ● WinAC |
Yes |
| ● SINUMERIK |
No |
| ● SIMOTION |
No |
| ● Allen Bradley (EtherNet/IP) |
Yes |
| ● Allen Bradley (DF1) |
No |
| ● Mitsubishi (MC TCP/IP) |
Yes |
| ● Mitsubishi (FX) |
No |
| ● OMRON (FINS TCP) |
No |
| ● OMRON (Host Link) |
No |
| ● Modicon (Modbus TCP/IP) |
Yes |
| ● Modicon (Modbus RTU) |
No |
Service tools/configuration aids
| ● Backup/Restore manually |
Yes |
| ● Backup/Restore automatically |
No |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
Peripherals/Options
| Printer |
No |
| SIMATIC HMI MM memory card: Multi Media Card |
No |
| SIMATIC HMI SD memory card: Secure Digital memory card |
No |
| USB memory |
No |
Enclosure material (front)
| ● Plastic |
Yes |
| ● Aluminum |
No |
| ● Stainless steel |
No |
Dimensions
| Width of the housing front |
214 mm |
| Height of housing front |
158 mm |
| Mounting cutout, width |
197 mm |
| Mounting cutout, height |
141 mm |
| mounting depth |
44 mm |
Weights
| Weight (without packaging) |
1.07 kg |
| Weight (with packaging) |
1.32 kg |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
General Product Approval
| Miscellaneous |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| China RoHS |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| CCS (China Classification Society) |
Yes |
| last modified: |
3/12/2024 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
