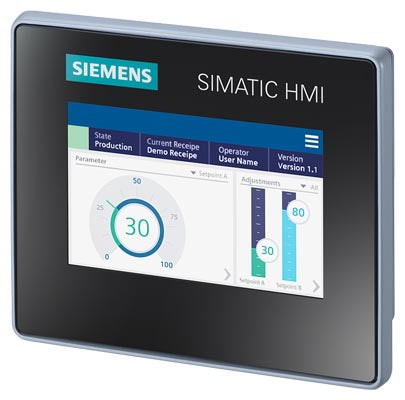

Siemens 6AV2123-3DB32-0AW0 | Industrial Automation Component

SKU: 6AV2123-3DB32-0AW0
(1)
$288.54
-13% $331.82 $288.54
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

SIMATIC HMI MTP400, Unified Basic Panel, touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray

Product Type: Industrial Automation Component

General

Article number 6AV2123-3DB32-0AW0

General information

Product type designation MTP400 Unified Basic

Display

Design of display TFT
Screen diagonal 4.3 in
Display width 93.6 mm
Display height 56.2 mm
Number of colors 16 777 216

Resolution (pixels)

● Horizontal image resolution 800 pixel
● Vertical image resolution 480 pixel

Backlighting

● MTBF backlighting (at 25 °C) 20 000 h; At 25°C
● Backlight dimmable Yes; 10 ... 100%

Keyboard

● Numeric keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes
● Design as multi-touch screen Yes
● Monitor keyboard Yes

Installation type/mounting

Mounting position vertical
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
maximum permissible angle of inclination without external ventilation 35°

Supply voltage

Type of supply voltage DC
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 0.16 A
current consumption (for rated value of supply voltage), min. 0.14 A
current consumption (for rated value of supply voltage), max. 0.47 A
Current consumption, max. 0.63 A; at 19.2 V
Starting current inrush I²t 0.45 A²·s

Power

Active power input, typ. 3.8 W

Processor

Processor type ARM

Storage

Flash Yes
RAM Yes

Acoustics

● Buzzer No
● Speaker No

Clock

● Hardware clock (real-time) Yes
● Software clock Yes
● retentive Yes; Back-up duration typically 6 weeks
● synchronizable Yes

Interfaces

Number of industrial Ethernet interfaces 1; Gigabit Ethernet (IE/PN), RJ45
Number of RS 485 interfaces 0
Number of RS 422 interfaces 0
Number of USB interfaces 2; USB 2.0
Number of SD card slots 0

Industrial Ethernet

● Industrial Ethernet status LED 2
● Number of ports of the integrated switch 1

Protocols

PROFINET Yes
PROFINET IO No
MPI No

Protocols (Ethernet)

● TCP/IP Yes
● DHCP Yes
● SNMP Yes
● DCP Yes
● LLDP Yes

Media redundancy

— MRP No

Further protocols

● CAN No

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes
● Limit class B, for use in residential areas No

Degree and class of protection

IP (at the front) IP65
IP (rear) IP20
NEMA (front) NEMA 4, NEMA 4x (when installed)
● Enclosure Type 4 at the front Yes
● Enclosure Type 4x at the front Yes
● Enclosure Type 12 at the front No

Standards, approvals, certificates

CE mark Yes
UKCA mark Yes
cULus Yes
FM approval No
RCM (formerly C-TICK) Yes
KC approval Yes
EAC (formerly Gost-R) No
CCC No

Ecological footprint

● environmental product declaration Yes

Global warming potential

— global warming potential, (total) [CO2 eq] 89.7 kg
— global warming potential, (during production) [CO2 eq] 16.2 kg
— global warming potential, (during operation) [CO2 eq] 74.4 kg
— global warming potential, (after end of life cycle) [CO2 eq] -1.09 kg

Use in hazardous areas

● ATEX Zone 2 No
● ATEX Zone 22 No
● IECEx Zone 2 No
● IECEx Zone 22 No
● cULus Class I Zone 2, Division 2 No
● cULus Class II Division 2 No
● FM Class I Division 2 No
● FM Class II Division 2 No

Marine approval

● Germanischer Lloyd (GL) No; included in DNV
● American Bureau of Shipping (ABS) Yes; in preparation
● Bureau Veritas (BV) Yes; in preparation
● Det Norske Veritas (DNV) Yes
● Korean Register of Shipping (KRS) Yes
● Lloyds Register of Shipping (LRS) Yes
● Nippon Kaiji Kyokai (Class NK) Yes
● Chinese Classification Society (CCS) Yes

Ambient conditions

Suited for indoor use Yes
Suited for outdoor use No

Operation (vertical installation)

— For vertical installation, min. 0 °C
— For vertical installation, max. 50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min. 0 °C
— At maximum tilt angle, max. 40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min. 0 °C
— For vertical installation, max. 40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min. 0 °C
— At maximum tilt angle, max. 35 °C

Ambient temperature during storage/transportation

● min. -20 °C
● max. 60 °C

Relative humidity

● Operation, max. 90 %; no condensation

Operating systems

proprietary Yes

Configuration

Message indicator Yes
Alarm system (incl. buffer and acknowledgment) Yes
Recipe management Yes

Configuration software

● WinCC Advanced (TIA Portal) Yes
● WinCC Professional (TIA Portal) Yes
● WinCC Unified Basic Engineering (TIA Portal) Yes
● WinCC Unified Comfort Engineering (TIA Portal) Yes
● WinCC Unified PC Engineering (TIA Portal) Yes

Online languages

● Number of online/runtime languages 32

Project languages

● Languages per project 32

Functionality under WinCC Unified

Libraries Yes
Applications/options No
Number of Visual Basic Scripts No
JavaScript Yes

Task planner

● time-controlled Yes
● task-controlled Yes

Help system

● Number of characters per info text 70
● Number of message texts per message 10

Message system

● Number of alarm classes 32

● Bit messages

— Number of bit messages 2 000

● Analog messages

— Number of analog messages 100
● S7 alarm number procedure Yes
● System messages HMI Yes
● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) Yes
● Number of characters per message 512
● Number of process values per message 10
● Acknowledgment groups Yes
● Message indicator No
● Message buffer Yes; Configured as alarm archive
— Circulating buffer Yes
— retentive Yes
— maintenance-free Yes

Parameter set management (recipes)

● Number of parameter set types 250
● Parameter sets per parameter set type 250
● Entries per parameter set 250
● Size of internal parameter set memory 5 Mbyte
● Parameter set memory expandable Yes

Variables

● Number of variables per device 1 000
● Number of variables per screen 300
● Limit values Yes
● Structures Yes
● Arrays Yes

Images

● Number of configurable images 300
● Faceplate Yes

Image objects

● Number of objects per image 600
● Picture window Yes
● Text fields Yes
● I/O fields Yes
● Graphic I/O fields (graphics list) Yes
● Symbolic I/O fields (text list) Yes
● Scalable Vector Graphics (SVG) Yes
● Date/time fields Yes
● Checkbox Yes
● Option button Yes
● Switches Yes
● Buttons Yes
● Graphic display Yes
● Icons Yes
● Custom web display No
● Geometric objects Yes

Complex image objects

● Number of complex objects per screen 5
● Alarm view Yes
● Trend view Yes
● User view Yes
● Status/control Yes
● Parameter set display Yes
● HTML browser Yes
● Bar graphs Yes
● Sliders Yes
● Pointer instruments Yes
● Analog/digital clock Yes

Lists

● Number of text lists per project 300
● Number of entries per text list 250
● Number of graphics lists per project 100
● Number of entries per graphics list 250

Archiving

● Number of archives per device 10
● Number of entries per archive 50 000
● Message archive Yes
● Process value archive Yes

● Archiving methods

— Sequential archive Yes
— Short-term archive Yes

● Memory location

— Memory card No
— USB memory Yes
— Ethernet No

Security

● Number of roles 50
● Number of function rights 20; V18
● Number of users 200
● Password export/import Yes
● Central user administration Yes

Transfer (upload/download)

● USB Yes
● Ethernet Yes
● using external storage medium Yes

Process coupling

● S7-1200 Yes
● S7-1500 Yes
● S7-200 No
● S7-300/400 Yes
● Number of S7 connections 8
● LOGO! Yes; as of WinCC Unified V20
● SIMOTION No
● OPC UA Client Yes
● OPC UA Server No
● Software Controller/Open Controller No

Service tools/configuration aids

● Backup/Restore manually Yes
● Backup/Restore automatically No
● Simulation Yes
● Device switchover Yes

Peripherals/Options

Peripherals Barcode reader
Printer No
SIMATIC HMI MM memory card: Multi Media Card No
SIMATIC HMI SD memory card: Secure Digital memory card No
SIMATIC HMI CF memory card Compact Flash Card No
USB memory Yes
SIMATIC IPC USB Flashdrive (USB stick) Yes
SIMATIC HMI USB stick Yes
Network camera No

Enclosure material (front)

● Plastic Yes

Dimensions

Width of the housing front 140 mm
Height of housing front 116 mm
Mounting cutout, width 123 mm
Mounting cutout, height 99 mm
mounting depth 36 mm

Weights

Weight (without packaging) 0.45 kg
Weight (with packaging) 0.53 kg

Classifications

Version Classification
eClass 16
eClass 14
eClass 12
eClass 9.1
eClass 9
eClass 8
eClass 7.1
eClass 6
ETIM 10
ETIM 9
ETIM 8
ETIM 7

General Product Approval

EU declaration of conformity Yes
UK Declaration of Conformity Yes
UL Yes
KC Yes
RCM Yes

Maritime application

ABS (American Bureau of Shipping) Yes
BV (Bureau Veritas) Yes
DNV (Det Norske Veritas) Yes
LR (Lloyds Register) Yes
NK / Nippon Kaiji Kyokai Yes
RINA (Registro Italiano Navale) Yes
CCS (China Classification Society) Yes
KR (Korean Register of Shipping) Yes

Environment

EPD Typ II/III (with life cylce assessment) Yes
last modified: 6/18/2026

Applications

This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
