Siemens 6AU1445-0AA00-0AA0 | Industrial Automation Component
Product Type: Industrial Automation Component

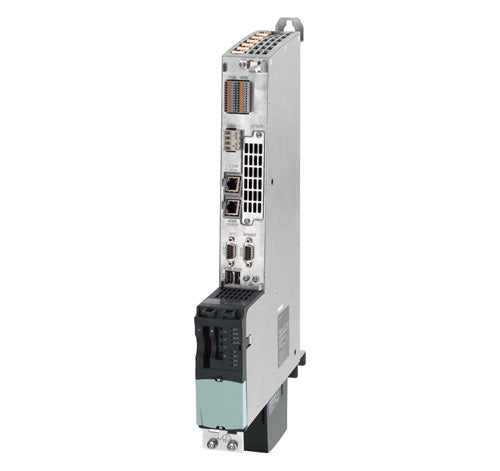

***SPARE PART*** SIMOTION DRIVE-BASED CONTROL UNIT D445; PROGRAMMABLE MOTION CONTROLLER; HIGH PERFORMANCE; INTERFACES: 8 DI, 8 DI/DO, 6 DRIVE-CLIQ, 2 PROFIBUS, 2 ETHERNET, 2 USB, 1 OPTION SLOT; INCL. FAN / BATTERY MODULE AND BATTERY
| Article number |
6AU1445-0AA00-0AA0 |
| product brand name |
SIMOTION |
| product type designation |
D445 |
| Performance class for motion control system |
HIGH Performance |
| Version of the motion control system |
Multiple-axis system |
PLC and motion control performance
| number of axes / maximum |
64 |
| Minimum PROFIBUS cycle clock |
1 ms |
| Minimum PROFINET send cycle clock |
0.5 ms |
| Minimum interpolator cycle clock |
0.5 ms |
| Minimum servo cycle clock |
0.5 ms |
Maximum number of axes for integrated drive control
| ● servo |
6 |
| ● vector |
4 |
| ● V/f |
8 |
| ● note |
Alternative control modes; drive control based on SINAMICS S120 CU320, firmware version V2.x |
Memory
| RAM (work memory) |
96 Mbyte |
| Additional RAM work memory for Java applications |
20 Mbyte |
| RAM disk (load memory) |
47 Mbyte |
| Retentive memory |
364 kbyte |
| Persistent memory (user data on CF) |
300 Mbyte |
Interfaces
| ● DRIVE-CLiQ |
6 |
| ● USB |
2 |
| ● Industrial Ethernet |
2 |
| ● PROFIBUS |
2 |
| — note |
Equidistant and isochronous; Can be configured as master or slave |
| ● PROFINET |
0 |
| — note |
Optional via CBE30; 1 interface with 4 ports; supports PROFINET IO with IRT and RT; configurable as a PROFINET IO controller and/or device |
General technical data
| Fan |
Fan/battery module (single fan) included in scope of delivery |
DC supply voltage
| ● rated value |
24 V |
| ● minimum |
20.4 V |
| ● maximum |
28.8 V |
| consumed current / typical |
2 000 mA |
| ● note |
with no load on inputs/outputs, no 24 V supply via DRIVE-CLiQ and PROFIBUS interface |
| Making current, typ. |
6 A |
| Power loss, typ. |
48 W |
Ambient temperature, during
| ● storage |
-40 ... +70 °C |
| ● transport |
-40 ... +70 °C |
| ● operation |
0 ... 55 °C |
| — note |
Maximum 5000 m (16405 ft) above sea level. Above an altitude of 2000 m (6562 ft), the max. ambient temperature decreases by 7 °C (12.6 °F) every 1000 m (3281 ft). |
Relative humidity
| ● during operation |
5 ... 95 % |
| ● without condensation, tested acc. to IEC 60068-2-38 |
Wert fehlt |
| Air pressure |
700 ... 1 060 hPa |
| Degree of protection |
IP20 / UL open type |
| height |
380 mm |
| width |
50 mm |
| ● depth |
270 mm |
| net weight |
4 300 g |
Digital inputs / header
| number of digital inputs |
8 |
DC input voltage
| ● rated value |
24 V |
| ● for signal "1" |
15 ... 30 V |
| ● for signal "0" |
-3 ... +5 V |
| Electrical isolation |
Yes |
| ● note |
Yes, in groups of 4 |
| Current consumption for "1" signal level, typ. |
10 mA |
| ● rated value |
24 V |
| ● for signal "1" |
15 ... 30 V |
| ● for signal "0" |
-3 ... +5 V |
| Electrical isolation |
No |
| Current consumption for "1" signal level, typ. |
10 mA |
Input delay time for
| ● signal "0" → "1", typ. |
50 µs |
| ● signal "1" → "0", typ. |
150 µs |
| ● signal "0" → "1", typ. |
5 µs |
| ● signal "1" → "0", typ. |
50 µs |
| Measuring input / reproducibility |
5 µs |
Digital inputs/outputs / header
| Number of digital I/Os |
8 |
| Parameterization possibility of the digital I/Os |
parameterizable as DI, as DO, as measuring input input (max. 6), as output of output cam (max. 8) |
Load voltage
| ● rated value |
24 V |
| ● minimum |
20.4 V |
| ● maximum |
28.8 V |
| Electrical isolation |
No |
| Current carrying capacity for each output, max. |
500 mA |
| Leakage current, max. |
2 mA |
Output delay for
| ● signal "0" → "1", typ. |
150 µs |
| ● signal "0" → "1", max. |
400 µs |
| ● signal "1" → "0", typ. |
75 µs |
| ● signal "1" → "0", max. |
100 µs |
| — note |
Data for Vcc = 24 V; load 48 Ohm; "1" = 90 % VOut, "0" = 10 % VOut |
Cam output
Switching frequency of the outputs for
| ● resistive load, max. |
100 Hz |
| ● inductive load, max. |
2 Hz |
| ● lamp load, max. |
11 Hz |
| Short-circuit protection |
Yes |
Back-up of non-volatile data
| ● of retentive data |
at least 5 days |
| ● of real-time clock, min. |
5 d |
| ● note |
longer buffer duration of the retentive data and the real-time clock using a battery inserted in the fan/battery module |
Approvals
| ● USA |
cULus |
| ● Canada |
cULus |
| ● Australia |
RCM (formerly C-Tick) |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
