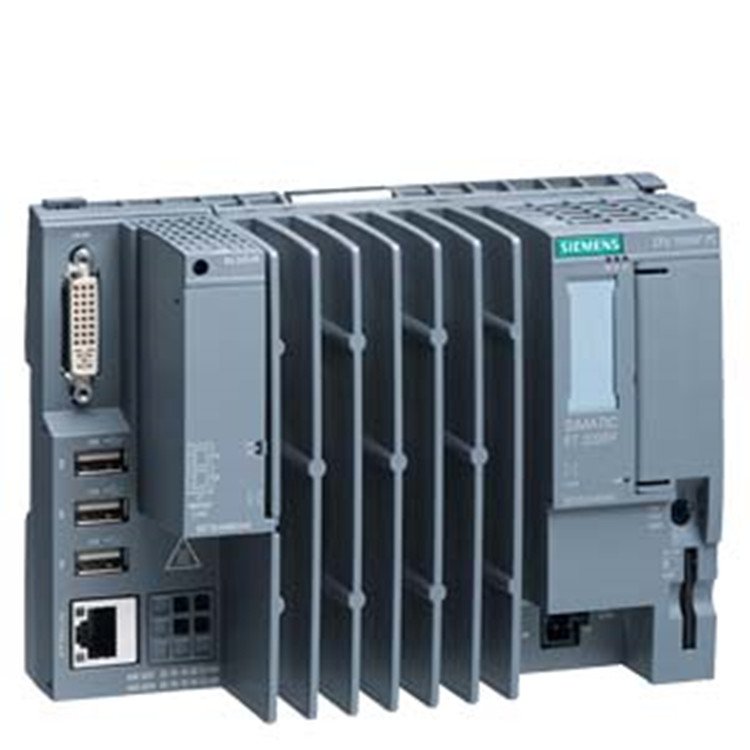

SIMATIC IPC427E (Microbox PC), HD graphic onboard, 4x USB V3.0 (high current), PCIE (optional), Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); Mounting onto standard rail; 8 GB and NVRAM; 2x RS232/485; 1x PCIe (x4); WIN Embedded Standard 7 SP1, English, 32-bit, Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply
Product Type: Industrial Automation Component
General
| Article number |
6AG4141-5BG41-0FA0 |
General information
| Product type designation |
IPC427E |
Installation type/mounting
| Mounting |
DIN rail, wall mounting, portrait mounting |
| Design |
Box PC, built-in unit |
Supply voltage
| Type of supply voltage |
24 V DC |
| Rated value (DC) |
24 V; PELV / SELV floating |
Mains buffering
| ● Mains/voltage failure stored energy time |
20 ms |
Processor
| Processor type |
Celeron G3902 (2C/2T, 1.6 GHz, 2 MB Cache); Core i3-6102E (2C/4T, 1.9 GHz, 3 MB Cache); Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB Cache, iAMT); Xeon E3-1505L v5 (4C/8T, 2.0 (2.8) GHz, 8 MB Cache, iAMT) |
| Chipset |
Intel C236 / Intel H110 |
Graphic
| Graphics controller |
Intel HD graphics controller |
Drives
| Hard disk |
2.5" SATA ≥ 320 GB |
| SSD |
Yes; 128 / 240 / 480 GB |
Storage
| Type of memory |
DDR4-2400 SO-DIMM |
| Main memory |
4 / 8 / 16 GB, ECC optional |
| Capacity of main memory, max. |
16 Gbyte |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. |
512 kbyte; 128 KB can be stored in the buffer time; optional |
Slots
| ● Number of PCI slots |
2; Optional |
| ● Number of compact flash slots |
1; CFast |
Interfaces
| Number of industrial Ethernet interfaces |
3; Ethernet (2x RJ45, optional 3x RJ45) |
| serial interface |
Without / 2x COM (RS 232 / 485 / 422; switchable) |
Video interfaces
| ● Graphics interface |
2x DisplayPort |
● Industrial Ethernet interface
| — 100 Mbps |
Yes |
| — 1000 Mbps |
Yes |
Interrupts/diagnostics/status information
| LED status display |
1x power, 3x user |
| Bus diagnostics |
Yes |
Monitoring functions
| ● Temperature monitoring |
Yes |
| ● Fan |
No |
| ● Monitoring function via network |
Optional |
Degree and class of protection
| IP degree of protection |
IP20 |
Standards, approvals, certificates
| CE mark |
Yes |
| UL approval |
Yes |
| ● UL 508 |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
| EAC (formerly Gost-R) |
Yes |
| FCC |
Yes |
Use in hazardous areas
| ● ATEX Zone 2 |
Yes; for inscription on device rating plate |
| ● ATEX Zone 22 |
No |
| ● IECEx Zone 2 |
Yes; for inscription on device rating plate |
| ● IECEx Zone 22 |
No |
| ● CCC Ex |
Yes; for inscription on device rating plate |
| ● cULus Class I Zone 1 |
No |
| ● cULus Class I Zone 2, Division 2 |
Yes; for inscription on device rating plate |
| ● cULus Class II Division 2 |
No |
| ● FM Class I Division 2 |
No |
| ● FM Class II Division 2 |
No |
Marine approval
| ● Germanischer Lloyd (GL) |
Yes |
| ● American Bureau of Shipping (ABS) |
Yes |
| ● Bureau Veritas (BV) |
Yes |
| ● Det Norske Veritas (DNV) |
Yes |
| ● Korean Register of Shipping (KRS) |
Yes |
| ● Lloyds Register of Shipping (LRS) |
Yes |
| ● Nippon Kaiji Kyokai (Class NK) |
Yes |
Ambient temperature during operation
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
70 °C |
Vibrations
| ● Vibration resistance during operation acc. to IEC 60068-2-6 |
tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system |
Windows 7 Ultimate (Multi-Language) 64-bit, Windows Embedded Standard 7 E/P 32-bit / 64-bit, Windows 10 |
| without operating system |
Yes; Optional |
pre-installed operating system
| ● Windows 7 |
Yes; Ultimate 32 bit or 64 bit |
| ● Windows 10 Enterprise |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Software
| Pre-installed software |
Edge SW (Simatic, Sinumerik), optional |
Dimensions
| Width |
262 mm |
| Height |
139.69999 mm |
| Depth |
55.5 mm; without PCIe |
Classifications
| Version |
Classification |
| eClass |
16 |
| eClass |
14 |
| eClass |
12 |
| eClass |
9.1 |
| eClass |
9 |
| eClass |
8 |
| eClass |
7.1 |
| eClass |
6 |
| ETIM |
10 |
| ETIM |
9 |
| ETIM |
8 |
| ETIM |
7 |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| BIS CRS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
For use in hazardous locations
| UL |
Yes |
| ATEX |
Yes |
| IECEx |
Yes |
| Miscellaneous |
Yes |
| CCC-Ex |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Dangerous goods
| Dangerous goods information |
Yes |
| Test Summary Report UN 38.3 |
Yes |
| Dangerous goods information |
Yes |
| Test Summary Report UN 38.3 |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
| last modified: |
6/10/2026 |
