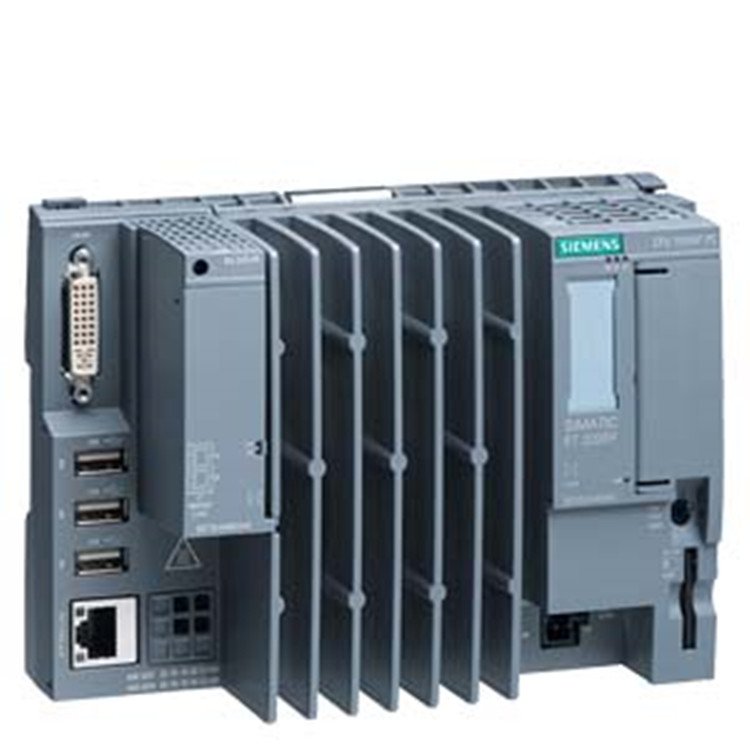

*** no longer available *** SIMATIC IPC427D (Microbox PC), HD graphic onboard, 2x10/100/1000 Mbit/s Ethernet RJ45, 4xUSB V3.0 (high current), PCIe (optional), 24 V DC power supply Core i7-3517UE; 2x Gbit Ethernet (IE/PN); DIN rail mounting; 8 GB; 1x RS-232; without PCIE; without operating system; Replaceable without drive; SSD 240 GB Standard (MLC); without SIMATIC software
Product Type: Industrial Automation Component
General
| Article number |
6AG4140-6BD00-0PA0 |
General information
| Product type designation |
IPC427D |
Installation type/mounting
| Mounting |
DIN rail, wall mounting, portrait mounting |
| Design |
Box PC, built-in unit |
Supply voltage
| Type of supply voltage |
24 V DC |
Processor
| Processor type |
Celeron 827E (1C/1T, 1.40 GHz, 1.5 MB Cache); Core i3-3217UE (2C/4T, 1.60 GHz, 3 MB Cache); Core i7-3517UE (2C/4T, 1.70 (2.80) GHz, 4 MB Cache, iAMT) |
Graphic
| Graphics controller |
Intel HD Graphics, Intel HD Graphics 4000 |
Drives
| Hard disk |
2.5" SATA ≥ 320 GB |
| SSD |
Yes; 1x 240 GB SSD, 1x 480 GB SSD |
Storage
| Type of memory |
DDR3 SO-DIMM |
| Main memory |
2 / 4 / 8 GB; ECC optional |
| Capacity of main memory, max. |
8 Gbyte |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. |
512 kbyte; 128 KB can be stored in the buffer time; optional |
Slots
| ● Number of PCI slots |
2; Optional |
| ● Number of compact flash slots |
2; CFast |
Interfaces
| Number of industrial Ethernet interfaces |
2 |
| Number of PROFINET interfaces |
1; 3 ports (incl. switch) |
| serial interface |
COM1: 1x RS 232, COM2 (optional): 1x RS 232 |
Video interfaces
| ● Graphics interface |
1x DisplayPort and 1x DVI-I; 1x VGA via adapter cable (optional) |
● Industrial Ethernet interface
| — 100 Mbps |
Yes |
| — 1000 Mbps |
Yes |
Interrupts/diagnostics/status information
| LED status display |
Yes |
| Bus diagnostics |
Yes |
Monitoring functions
| ● Temperature monitoring |
Yes |
| ● Fan |
No |
| ● Monitoring function via network |
Optional |
Degree and class of protection
| IP (at the front) |
IP20 |
| IP (rear) |
IP20 |
Standards, approvals, certificates
| CE mark |
Yes; CE marking / EC Declaration of Conformity |
| UL approval |
Yes |
| ● UL 508 |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
| FCC |
Yes |
Use in hazardous areas
| ● ATEX Zone 2 |
Yes; Optional |
| ● IECEx Zone 2 |
Yes; Optional |
| ● cULus Class I Zone 2, Division 2 |
Yes; Optional |
| ● FM Class I Division 2 |
Yes |
Marine approval
| ● Germanischer Lloyd (GL) |
Yes |
| ● American Bureau of Shipping (ABS) |
Yes |
| ● Bureau Veritas (BV) |
Yes |
| ● Det Norske Veritas (DNV) |
Yes |
| ● Korean Register of Shipping (KRS) |
Yes |
| ● Lloyds Register of Shipping (LRS) |
Yes |
| ● Nippon Kaiji Kyokai (Class NK) |
Yes |
Ambient temperature during operation
Ambient temperature during storage/transportation
| ● min. |
-40 °C |
| ● max. |
70 °C |
Vibrations
| ● Vibration resistance during operation acc. to IEC 60068-2-6 |
tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system |
Windows 7 Ultimate (Multi-Language) 32-bit / 64-bit, Windows Embedded Standard 7 E/P 32-bit / 64-bit |
| without operating system |
Yes; Optional |
pre-installed operating system
| ● Windows 7 |
Yes; Ultimate 32 bit or 64 bit |
Dimensions
| Width |
262 mm |
| Height |
139.69999 mm |
| Depth |
50.5 mm |
General Product Approval
| Miscellaneous |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| BIS CRS |
Yes |
| EU declaration of conformity |
Yes |
| China RoHS |
Yes |
| UK Declaration of Conformity |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
Dangerous goods
| Dangerous goods information |
Yes |
| Test Summary Report UN 38.3 |
Yes |
| Dangerous goods information |
Yes |
| Test Summary Report UN 38.3 |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
