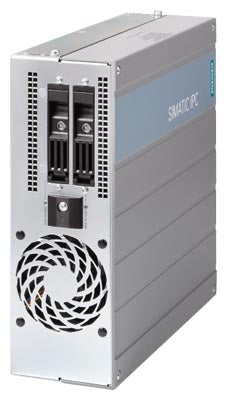

SIMATIC IPC627E (Box PC), UHD Graphics onboard; DP/DVI-D; 3x Gigbit Ethernet (IE/PN); 6x USB V3.1 Gen.2; 1x serial (COM 1); RAID controller onboard; Watchdog, temperature and fan monitoring; Core i7-8700 (6C/12T, 3.2(4.6) GHz, 12 MB cache, VT-d, AMT); SSD 2.5" SATA 960 GB internal; 32 GB DDR4-2666 (2x16); 24 V DC industrial power supply Without operating system; without expansion (software); without expansion (HW); 1x PCIe (x16), 1x PCI
Product Type: Industrial Automation Component
General
| Article number |
6AG4131-3GD30-8AA1 |
General information
| Product type designation |
IPC627E |
Installation type/mounting
| Mounting |
Wall mounting, portrait mounting |
| Design |
Box PC, built-in unit |
Supply voltage
| Type of supply voltage |
100/240 V AC (autorange); 24 V DC |
Line frequency
| ● Rated value 50 Hz |
Yes |
| ● Rated value 60 Hz |
Yes |
Mains buffering
| ● Mains/voltage failure stored energy time |
20 ms |
Processor
| Processor type |
Celeron G4900 (2C/2T, 3.1 GHz, 2 MB cache; VT-d); Core i3-8100 (4C/4T, 3.6 GHz, 6 MB cache, VT-d); Core i7-8700 (6C/12T, 3.2 (4.6) GHz, 12 MB cache, VT-d, AMT) |
| Chipset |
Intel C246 |
Graphic
| Graphics controller |
Intel UHD Graphics 630 (Core i); Intel UHD Graphics 610 (Celeron) |
Drives
| Hard disk |
2.5" SATA ≥ 320 GB |
| SSD |
Yes; SSD M.2 NVMe 512 GB; SSD 2.5" SATA 480 / 960 GB; RAID1 2x SSD 2.5" SATA 480 / 960 GB in removable drive bay |
Storage
| Type of memory |
DDR4-2666 DIMM |
| Main memory |
4 / 8 / 16 / 32 / 64 GB |
| Capacity of main memory, max. |
64 Gbyte |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. |
512 kbyte; 128 KB can be stored in the buffer time |
Slots
| ● Number of PCI slots |
3; Optional |
| ● Number of PCI slots |
5; Optional |
Interfaces
| Number of industrial Ethernet interfaces |
3; 3x Ethernet (RJ45) |
| serial interface |
1x COM |
Video interfaces
| ● Graphics interface |
2x DisplayPort; 1x DVI-D |
● Industrial Ethernet interface
| — 100 Mbps |
Yes |
| — 1000 Mbps |
Yes |
Interrupts/diagnostics/status information
| LED status display |
1x power, 3x user |
Monitoring functions
| ● Temperature monitoring |
Yes |
| ● Fan |
Yes |
| ● Monitoring function via network |
Optional |
Degree and class of protection
| IP degree of protection |
IP20 |
Standards, approvals, certificates
| CE mark |
Yes |
| UL approval |
Yes |
| cULus |
Yes; UL 61010-2-201 Second Edition; CAN/CSA-C22.2 No. 61010-2-201 Second Edition |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
| EAC (formerly Gost-R) |
Yes |
| FCC |
Yes |
| BSMI |
Yes |
Use in hazardous areas
| ● cULus Class I Zone 2, Division 2 |
Yes; Optional |
Marine approval
| ● American Bureau of Shipping (ABS) |
Yes; Only with SSD |
| ● Bureau Veritas (BV) |
Yes; Only with SSD |
| ● Det Norske Veritas (DNV) |
Yes; Only with SSD |
| ● Korean Register of Shipping (KRS) |
Yes; Only with SSD |
| ● Lloyds Register of Shipping (LRS) |
Yes; Only with SSD |
| ● Nippon Kaiji Kyokai (Class NK) |
Yes; Only with SSD |
| ● Chinese Classification Society (CCS) |
Yes; Only with SSD |
Ambient temperature during operation
Ambient temperature during storage/transportation
| ● min. |
-20 °C |
| ● max. |
60 °C |
Vibrations
| ● Vibration resistance during operation acc. to IEC 60068-2-6 |
tested according to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm; 58 Hz to 500 Hz 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system |
Windows 10 Enterprise 2016 LTSB or 2019 LTSC or 2021 LTSC 64 bit, MUI |
| without operating system |
Yes; Optional |
pre-installed operating system
| ● Windows 10 Enterprise |
Yes; Windows 10 Enterprise 2016 LTSB or 2019 LTSC or 2021 LTSC 64 bit, MUI |
Dimensions
| Width |
314 mm |
| Height |
93 mm; For variant 5x PCI(e): 155 mm |
| Depth |
301 mm; incl. mounting rail |
General Product Approval
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| Manufacturer Declaration |
Yes |
| UL |
Yes |
| KC |
Yes |
| inspection certificate |
Yes |
| RCM |
Yes |
| EAC |
Yes |
| BIS CRS |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| NK / Nippon Kaiji Kyokai |
Yes |
| CCS (China Classification Society) |
Yes |
| KR (Korean Register of Shipping) |
Yes |
other
Dangerous goods
| Dangerous goods information |
Yes |
| Dangerous goods information |
Yes |
| Test Summary Report UN 38.3 |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
| last modified: |
6/18/2026 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
