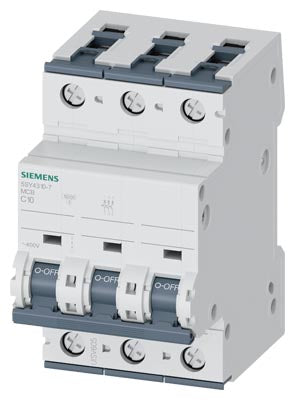

Miniature circuit breaker 400 V 10kA, 3-pole, C, 10A, D=70 mm
Product Type: Industrial Automation Component
General
Model
| product brand name |
SENTRON |
| product designation |
Miniature circuit breaker |
General technical data
| number of poles |
3 |
| design of pole |
3P |
| tripping characteristic class |
C |
| mechanical service life (operating cycles) typical |
10 000 |
| overvoltage category |
3 |
| degree of pollution |
3 |
Voltage
| type of voltage of the operating voltage |
AC |
insulation voltage (Ui)
| ● with single-phase operation at AC rated value |
440 V |
| ● with multi-phase operation at AC rated value |
440 V |
| supply voltage with single-phase operation at AC rated value |
230 V |
● operational current
| — at 40 °C rated value |
9.39 A |
| — at 50 °C rated value |
8.74 A |
| — at 55 °C rated value |
8.4 A |
| — at 60 °C rated value |
8.04 A |
| ● operational current at AC rated value |
10 A |
supply voltage
| ● at AC |
400 V |
| ● at DC rated value |
60 V |
| value range of the supply voltage frequency |
50/60 Hz |
| operating voltage at DC rated value maximum |
72 V |
Protection class
| protection class IP |
IP20, with connected conductors |
switching capacity current
| ● at DC according to IEC 60947-2 rated value |
15 kA |
| ● according to EN 60898 rated value |
10 kA |
| ● according to IEC 60947-2 rated value |
20 kA |
| energy limitation class |
3 |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole |
1.1 W |
| suitability for operation |
Infrastructure / Industry |
Product details
| product feature touch protection |
Yes |
product component
| ● combined terminal top |
Yes |
| ● combined terminal bottom |
Yes |
| ● neutral conductor switching |
No |
| product feature properties for main switches in accordance with EN 60204-1 |
Yes |
| product feature halogen-free |
Yes |
| product feature sealable |
Yes |
| product feature silicon-free |
Yes |
| product extension installable supplementary devices |
Yes |
Product function
| set values setting current (Ii) for I-tripping |
8 |
| reference value setting current (Ii) for I-tripping |
x In |
short-circuit current breaking capacity (Icn)
| ● at AC according to UL 1077 and CSA C22.2 No.235 |
5 kA |
connectable conductor cross-section solid
| ● minimum |
0.75 mm² |
| ● maximum |
35 mm² |
connectable conductor cross-section stranded
| ● minimum |
0.75 mm² |
| ● maximum |
35 mm² |
connectable conductor cross-section finely stranded with core end processing
| ● minimum |
0.75 mm² |
| ● maximum |
25 mm² |
AWG number as coded connectable conductor cross section
tightening torque [lbf·in] with screw-type terminals
| ● minimum |
22 lbf·in |
| ● maximum |
31 lbf·in |
tightening torque with screw-type terminals
| ● minimum |
2.5 N·m |
| ● maximum |
3.5 N·m |
| position of power supply cord |
Any |
Mechanical Design
| height |
90 mm |
| width |
54 mm |
| depth |
76 mm |
| installation depth |
70 mm |
| number of modular width units |
3 |
| fastening method |
DIN rail |
| mounting position |
any |
| Net Weight |
452 g |
Environmental conditions
| influence of the surrounding temperature |
max. 95% RH up to 55°C, max. 55% RH up to 70°C, max. 35% RH up to 75°C |
| standard |
IEC / EN 60898-1, IEC / EN 60947-2 / UL1077 |
| vibration resistance according to IEC 60068-2-6 |
±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
ambient temperature during operation
| ● minimum |
-40 °C |
| ● maximum |
70 °C |
ambient temperature during storage
| ● minimum |
-40 °C |
| ● maximum |
75 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 |
6 |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
| EPD Typ II/III (with life cylce assessment) |
Yes |
General Product Approval
| CCC |
Yes |
| IMQ |
Yes |
| cURus |
Yes |
| VDE |
Yes |
| Miscellaneous |
Yes |
| KC |
Yes |
| EAC |
Yes |
| S Mark |
Yes |
| Confirmation |
Yes |
| UK Declaration of Conformity |
Yes |
| EU declaration of conformity |
Yes |
| RCM |
Yes |
Test Certificates
| Miscellaneous |
Yes |
| Special Test Certificate |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
other
| Chinese Quality Checkmark |
Yes |
| Confirmation |
Yes |
Railway
| Confirmation |
Yes |
| Special Test Certificate |
Yes |
Characteristic curves
https://curves.simaris.siemens.com/curves/
| last modified: |
8/6/2025 |
| Date8/1/2026 |
