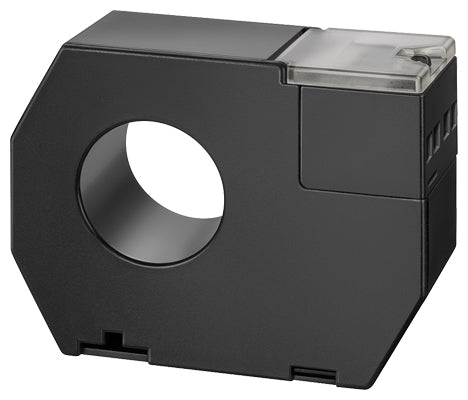

Summation current transformer 35 mm
Product Type: Industrial Automation Component
General
| Article number |
5SV8702-0KK |
Model
| product brand name |
SENTRON |
| product designation |
summation current transformer |
| design of the product |
type A |
| residual current (Idn) minimum |
30 mA |
| internal diameter of summation current transformer |
35 mm |
| wire length maximum |
10 m |
| protection class IP at connection all terminals |
IP20 |
| type of voltage of the operating voltage for actuation |
AC |
| surge voltage resistance rated value |
4 kV |
operating voltage rated value
operating frequency rated value
| ● minimum |
50 Hz |
| ● maximum |
60 Hz |
| operational current rated value |
80 A |
control supply voltage
| ● at AC at 50 Hz rated value maximum |
720 V |
| ● at AC at 60 Hz rated value maximum |
720 V |
Suitability
| suitability for use |
for AC power system |
Product function
| product function error memory |
No |
Connections
| type of connectable conductor cross-sections |
0.13 mm² 2.1 mm² |
| type of electrical connection |
screw terminal |
Mechanical Design
| height |
33 mm |
| width |
100 mm |
| depth |
79 mm |
| Net Weight |
170 g |
Environmental conditions
| influence of the surrounding temperature |
Max. 95% humidity |
ambient temperature during operation
| ● minimum |
-10 °C |
| ● maximum |
50 °C |
ambient temperature during storage
| ● minimum |
-20 °C |
| ● maximum |
70 °C |
Certificates
| reference code according to IEC 81346-2 |
T |
Environment
| Environmental Confirmations |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| Environmental Confirmations |
Yes |
General Product Approval
| cURus |
Yes |
| EAC |
Yes |
| Confirmation |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
other
| Chinese Quality Checkmark |
Yes |
| Confirmation |
Yes |
Characteristic curves
https://curves.simaris.siemens.com/curves/
| last modified: |
3/18/2026 |
| Date8/1/2026 |
Subject to change without notice© Copyright Siemens 2026 |
