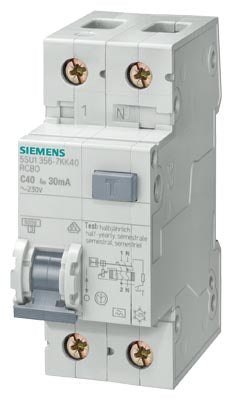

RCBO, 6 kA, 1P+N, type A, 30 mA, C-Char, In: 10 A, Un AC: 230 V
Product Type: Industrial Automation Component
General
| Article number |
5SU1356-7KK10 |
Model
| product brand name |
SENTRON |
| product designation |
RCBO |
| design of the product |
Instantaneous |
General technical data
| number of poles |
2 |
| number of poles with protection |
1 |
| design of pole |
1P+N |
| tripping characteristic class |
C |
| mechanical service life (operating cycles) typical |
10 000 |
| overvoltage category |
3 |
| degree of pollution |
2 |
Voltage
| type of voltage of the operating voltage |
AC |
| insulation voltage (Ui) rated value |
264 V |
| surge voltage resistance rated value |
4 000 V |
| surge current resistance at (8/20) µs |
1 kA |
| tripping fault current rated value |
30 mA |
● operational current
| — at 30 °C rated value |
10 A |
| — at 40 °C rated value |
9.5 A |
| — at 45 °C rated value |
9.3 A |
| — at 50 °C rated value |
9 A |
| — at 55 °C rated value |
8.7 A |
| — at 60 °C rated value |
8.5 A |
| — at 65 °C rated value |
8.2 A |
| — at 70 °C rated value |
8 A |
| ● operational current at AC rated value |
10 A |
| residual current type |
A |
supply voltage
| ● at AC rated value |
230/240 V |
| ● for testing equipment minimum |
195 V |
| operating frequency |
50 Hz |
| supply voltage frequency rated value |
50 Hz |
Protection class
| protection class IP |
IP20, if the distribution board is installed, with connected conductors |
switching capacity current
| ● according to EN 60898 rated value |
6 kA |
| ● according to IEC 60947-2 rated value |
15 kA |
| short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value |
6 kA |
| rated residual switching capacity (IΔm) according to IEC 61009-1 |
6 kA |
| energy limitation class |
3 |
power loss [W]
Product details
| product feature touch protection |
Yes |
| product component neutral conductor switching |
Yes |
| product feature halogen-free |
Yes |
| product feature silicon-free |
Yes |
connectable conductor cross-section solid
| ● minimum |
0.75 mm² |
| ● maximum |
35 mm² |
connectable conductor cross-section stranded
| ● minimum |
0.75 mm² |
| ● maximum |
35 mm² |
connectable conductor cross-section finely stranded with core end processing
| ● minimum |
0.75 mm² |
| ● maximum |
25 mm² |
tightening torque with screw-type terminals
| ● minimum |
2.5 N·m |
| ● maximum |
3 N·m |
| position of power supply cord |
Either top or bottom |
Mechanical Design
| height |
90 mm |
| width |
36 mm |
| depth |
77 mm |
| installation depth |
70 mm |
| number of modular width units |
2 |
| mounting position |
any |
| Net Weight |
268 g |
Environmental conditions
| influence of the surrounding temperature |
Max. 95% humidity |
ambient temperature during operation
| ● minimum |
-25 °C |
| ● maximum |
55 °C |
ambient temperature during storage
| ● minimum |
-40 °C |
| ● maximum |
75 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 |
28 |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
General Product Approval
| CCC |
Yes |
| IMQ |
Yes |
| VDE |
Yes |
| Miscellaneous |
Yes |
| EAC |
Yes |
| Confirmation |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| RCM |
Yes |
Test Certificates
| Miscellaneous |
Yes |
| Special Test Certificate |
Yes |
Maritime application
| DNV (Det Norske Veritas) |
Yes |
other
| Miscellaneous |
Yes |
| Chinese Quality Checkmark |
Yes |
| Confirmation |
Yes |
| Miscellaneous |
Yes |
Railway
| Special Test Certificate |
Yes |
| Confirmation |
Yes |
Dangerous goods
| Transport Information |
Yes |
Characteristic curves
https://curves.simaris.siemens.com/curves/
| last modified: |
7/22/2025 |
