Category: Accessories > CompactFlash cards

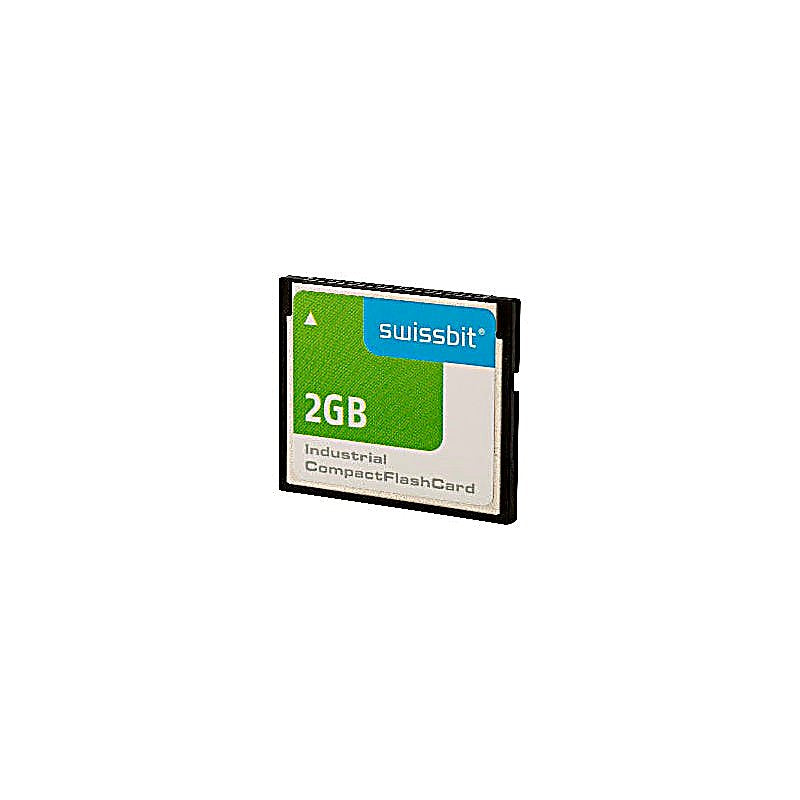

2 GB SLC flash CompactFlash card.

Technical Specifications

General information

  • Continuous reading
  • Typical = 59 MB/s
  • Maximum = 65 MB/s
  • Continuous writing
  • Typical = 31 MB/s
  • Maximum = 35 MB/s
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • UL = cULus E115267 Industrial control equipment
  • DNV = Temperature: A (0 to 45°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck)
  • Capacity = 2 GB
  • Data retention = 10 years
  • Data reliability = <1 unrecoverable error per 10 14 bits read
  • Lifetime monitoring = Yes
  • MTBF = >3,000,000 hours (at 25°C)
  • Servicing = None
  • Supported operating modes = PIO mode 0-6, Multiword DMA mode 0-4, Ultra DMA Mode 0-4

Endurance

  • Guaranteed data volume
  • Guaranteed = 200 TB
  • Results for 5 years = 109.59 GB/day
  • Erase/Write cycles
  • Guaranteed = 100,000
  • SLC flash memory = Yes
  • Wear leveling = Static
  • Error-correcting code (ECC) = Yes
  • S.M.A.R.T. support = Yes
  • Storage health data support = Yes

Support

  • Operating systems
  • Windows 7 32-bit = No
  • Windows 7 64-bit = No
  • Windows Embedded Standard 7 32-bit = No
  • Windows Embedded Standard 7 64-bit = No
  • Windows XP Professional = No
  • Windows XP Embedded = Yes
  • Windows Embedded Standard 2009 = Yes
  • Windows CE 6.0 = Yes
  • Windows CE 5.0 = No
  • Software
  • PVI Transfer = ≥V3.2.3.8 (part of the PVI Development installer ≥ V2.06.00.3011)
  • B&R Embedded OS Installer = ≥V3.10
  • Hardware = PP300/400, PP500, PPC300, PPC700, PPC725, PPC800, APC620, APC810, APC820

Ambient conditions

  • Temperature
  • Operation = 0 to 70°C
  • Storage = -50 to 100°C
  • Transport = -50 to 100°C
  • Relative humidity
  • Operation = Max. 85% at 85°C
  • Storage = Max. 85% at 85°C
  • Transport = Max. 85% at 85°C
  • Vibration
  • Operation = 20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103) 5.35 g RMS, 15 min. per level (IEC 68-2-6)
  • Storage = 20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103) 5.35 g RMS, 15 min. per level (IEC 68-2-6)
  • Transport = 20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103) 5.35 g RMS, 15 min. per level (IEC 68-2-6)
  • Shock
  • Operation = 1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) 30 g, 11 ms 1 time (IEC 68-2-27)
  • Storage = 1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) 30 g, 11 ms 1 time (IEC 68-2-27)
  • Transport = 1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) 30 g, 11 ms 1 time (IEC 68-2-27)
  • Elevation
  • Operation = Max. 4,572 m

Mechanical properties

  • Dimensions
  • Width = 42.8 ±0.10 mm
  • Length = 36.4 ±0.15 mm
  • Height = 3.3 ±0.10 mm
  • Weight = 10 g
