PSEN ma1.4p-50/PSEN ma1.4-10mm/ 1unit
| Approval | CE UKCA cULus Listed EAC (Eurasian) TÜV |
| Sensor principle | magnetic |
| Coding level to ISO 14119 | Low |
| Classification to EN 60947-5-3 | PDDB |
| Suitable for series connection | no |
| unit type | Unit |
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Switching voltage | 24 V |
| Ambient temperature | -10 °C |
| Max. ambient temp. at 2000 m | +55 °C |
| Climatic suitability standard | IEC 60068-2-30 |

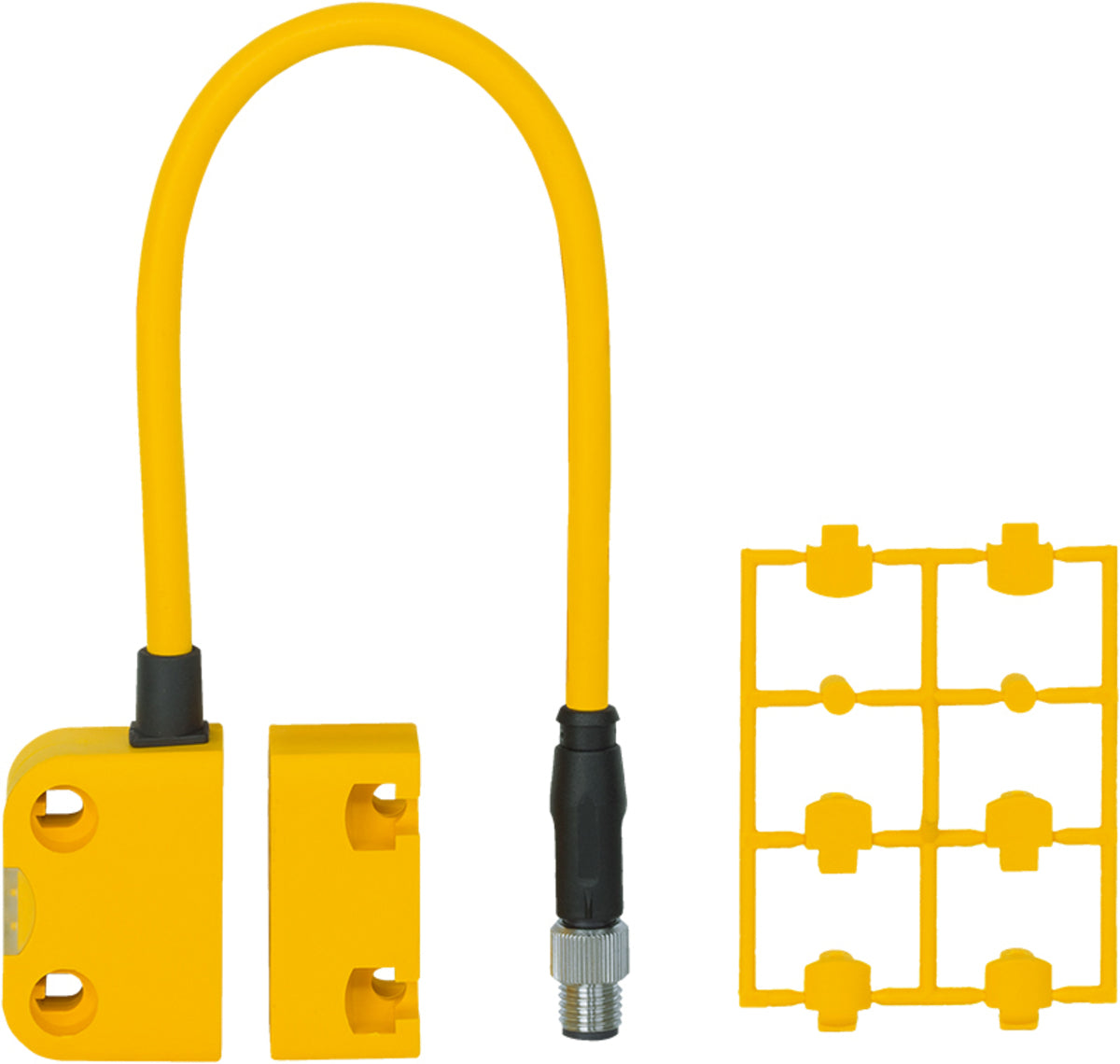

Magnetic safety switch 2 n/o, 4-pin M8 male connector, square design, IP67, switching distance 10 mm, height design 18 mm, PU = 1 sensor with actuator.
