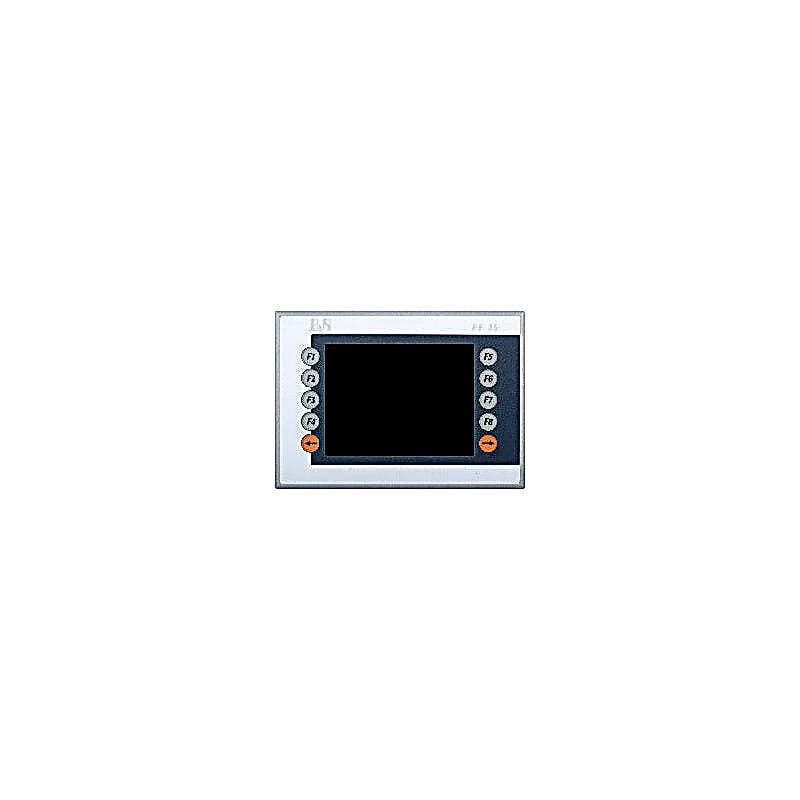

B&R 4PP045-0571-042 | Industrial Automation Component

SKU: 4PP045-0571-042
(4)
$8,315.30
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: HMI > Power Panel 45

Power Panel PP45 5.7" QVGA monochrome LC display with touch screen (resistive), 10 touch-keys, 64 MB DRAM, 48 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x X2X Link, 2x USB, IP65 protection (from front), order program memory separately, order TB103 and TB704 terminal blocks separately.

Technical Specifications

General information

  • Battery
  • Type = Renata 950 mAh
  • Service life = 2½ years
  • Removable = Yes, accessible from the outside
  • Variant = Lithium Ion
  • Certifications
  • CE
  • UL
  • KC = Yes

24 VDC power supply

  • Input voltage = 24 VDC ±25%

Controller

  • Real-time clock
  • Battery-backed = Yes
  • SRAM
  • Size = 48 kB
  • Mode/Node switches = 2, 16 digits each
  • Power failure logic = System management controller, 10 ms buffer time
  • Processor = ELAN SC520 100 MHz, Intel compatible
  • Watchdog = Internal system management controller
  • Main memory = 64 MB DRAM
  • PP45 Compact IF slot = 1

Display

  • Viewing angles
  • Horizontal = Direction R / Direction L = 40°
  • Vertical = Direction U = 40°/ direction D = 50°
  • Backlight
  • Brightness = 140 cd/m²
  • Half-brightness time = 55,000 h
  • Touch screen
  • Technology = Analog, resistive
  • Type = Monochrome LCD
  • Diagonal = 5.7" (144 mm)
  • Colors = 8 shades of gray
  • Resolution = QVGA, 320 x 240 pixels

Interfaces

  • CompactFlash slot 1
  • Type = Type I
  • USB
  • Quantity = 2
  • Type = USB 2.0
  • Variant = Type A
  • Transfer rate = Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s)
  • Current-carrying capacity = Max. 500mA per connection
  • Ethernet
  • Quantity = 1
  • Transfer rate = 10/100 Mbit/s
  • Max. baud rate = 100 Mbit/s
  • X2X
  • Variant = 4-pin plug
  • Status LED = Yes

Keys

  • Function keys = 10

Operating conditions

  • Degree of protection per EN 60529 = IP65 (front side) / IP20 (back side)

Ambient conditions

  • Temperature
  • Operation = 0 to 50°C
  • Storage = -20 to 70°C
  • Transport = -20 to 70°C
  • Relative humidity
  • Operation = 10 to 90%
  • Storage = T ≤ 40°C: 5 to 90%, non-condensing T > 40°C: < 90%

Mechanical properties

  • Dimensions
  • Width = 203 mm
  • Height = 145 mm
  • Depth = 55 mm
  • Weight = 0.5 kg
