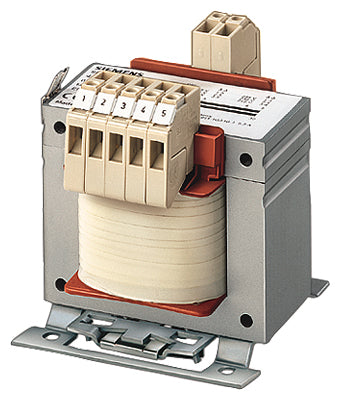

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 1.6 /7.3; Upri(V): 500+/-5%; Usec(V): 110; Isec(A): 14.5; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: screw/flat-type connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized< >control transformer< >isolation transformer<
Product Type: Industrial Automation Component
General
| Article number |
4AM6142-5FJ10-0FA0 |
General technical data
| product designation |
transformer SITAS |
| product brand name |
SIDAC |
| operating apparent power rated value |
VA |
| efficiency |
0.96 |
| connection method for transformers |
Ii0 |
| certificate of suitability |
CE / cRUus |
product function
| ● temperature monitoring |
No |
| ● insulation monitoring |
No |
| ● short-circuit and overload proof |
No |
| number of shielding windings |
0 |
| short-term vector power |
VA |
| relative short-circuit voltage |
% |
Inputs
| phase number of the inputs |
1 |
input voltage
| ● _1 rated value |
V |
| ● _2 rated value |
V |
| ● _3 rated value |
V |
electrical input frequency
| ● minimum |
Hz |
| ● maximum |
Hz |
Outputs
| phase number of the outputs |
1 |
output voltage
electrical output frequency
| ● maximum |
Hz |
| ● minimum |
Hz |
Ambient conditions
| thermal class according to IEC 60085 |
B |
| ambient temperature rated value |
°C |
| protection class IP |
IP00 |
type of electrical connection
| ● at output for main current circuit |
screw-type terminals / tab terminals |
| ● at input for main current circuit |
screw-type terminals / tab terminals |
| fastening method |
screws |
| construction form of the iron core |
EI 174/82 |
| width |
m |
| height |
m |
| depth |
m |
General Product Approval
| EAC |
Yes |
| EU declaration of conformity |
Yes |
other
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Environment
| Environmental Confirmations |
Yes |
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
https://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=4AM6142-5FJ10-0FA0&lang=en
| last modified: |
4/2/2025 |
| Date7/28/2026 |
Subject to change without notice© Copyright Siemens 2026 |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
