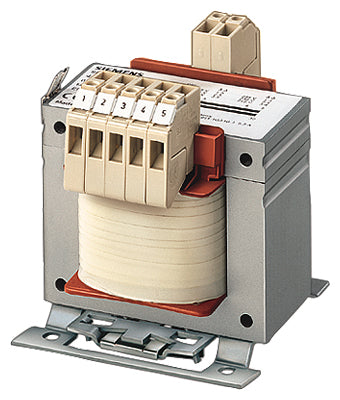

transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.063 /0.19; Upri(V): 230+/-5%; Usec(V): 24; Isec(A): 2.63; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: screw/flat-type connection; mounting: screws / DIN rail; EN 61558-2-2, -2-6 >UL/CSA-recognized< >control transformer< >safety transformer<
Product Type: Industrial Automation Component
General
| Article number |
4AM3242-4TN00-0EA0 |
General technical data
| product designation |
transformer SITAS |
| product brand name |
SIDAC |
| operating apparent power rated value |
VA |
| efficiency |
0.85 |
| connection method for transformers |
Ii0 |
| certificate of suitability |
CE / cRUus |
product function
| ● temperature monitoring |
No |
| ● insulation monitoring |
No |
| ● short-circuit and overload proof |
No |
| number of shielding windings |
0 |
| short-term vector power |
VA |
| relative short-circuit voltage |
% |
Inputs
| phase number of the inputs |
1 |
input voltage
| ● _1 rated value |
V |
| ● _2 rated value |
V |
| ● _3 rated value |
V |
electrical input frequency
| ● minimum |
Hz |
| ● maximum |
Hz |
Outputs
| phase number of the outputs |
1 |
output voltage
electrical output frequency
| ● maximum |
Hz |
| ● minimum |
Hz |
Ambient conditions
| thermal class according to IEC 60085 |
B |
| ambient temperature rated value |
°C |
| protection class IP |
IP00 |
type of electrical connection
| ● at output for main current circuit |
screw-type terminals / tab terminals |
| ● at input for main current circuit |
screw-type terminals / tab terminals |
| fastening method |
screws / DIN rail |
| construction form of the iron core |
EI 84/28 |
| width |
m |
| height |
m |
| depth |
m |
General Product Approval
| EAC |
Yes |
| EU declaration of conformity |
Yes |
other
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Environment
| Environmental Confirmations |
Yes |
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
https://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=4AM3242-4TN00-0EA0&lang=en
| last modified: |
4/2/2025 |
| Date7/28/2026 |
Subject to change without notice© Copyright Siemens 2026 |
