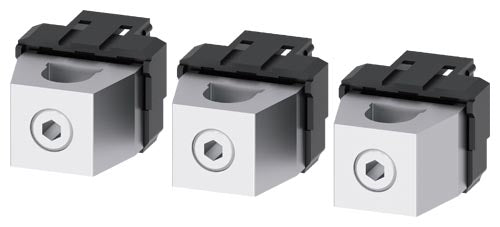

wire connector TC1.3 14 AWG...1/0 Cu 3 units accessory for: 3VA61/62
Product Type: Industrial Automation Component
General
| Article number |
3VA9143-0JD11 |
Model
| product brand name |
SENTRON |
| product designation |
circular conductor terminal |
| design of the product |
Connection method |
| accessories |
Wire connector |
General technical data
| designation / of the terminal |
TC1.3 |
| type of electrical connection / with control wire tap |
No |
Mechanical Design
Connections according IEC
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B |
90 °C |
| stripped length |
0.7 in |
connectable conductor cross-section
| ● for copper cable / solid / minimum |
14 AWG |
| ● for copper cable / solid / maximum |
10 AWG |
| ● for copper cable / stranded / minimum |
14 AWG |
| ● for copper cable / stranded / maximum |
1/0 AWG |
tightening torque / when using copper cables
| ● solid |
14-10 AWG: 55 lb-in |
| ● stranded |
14 - 8 AWG: 55.0 lb-in; 6 - 2 AWG: 75 lb-in; 1 - 1/0 AWG: 120 lb-in |
General Product Approval
| cULus |
Yes |
| Miscellaneous |
Yes |
| EAC |
Yes |
| Confirmation |
Yes |
| UK Declaration of Conformity |
Yes |
| EU declaration of conformity |
Yes |
| RCM |
Yes |
Maritime application
other
| Miscellaneous |
Yes |
| Confirmation |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
Tender specifications
https://www.siemens.com/specifications
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
