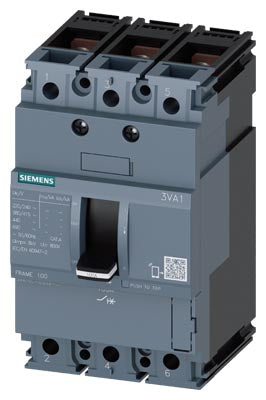

circuit breaker 3VA1 IEC Frame 100 breaking capacity class N Icu=25 kA @ 415 V 3-pole, line protection TM210, FTFM, In=63 A overload protection Ir=63 A permanently set short-circuit protection Ii=10 x In nut keeper kit
Product Type: Industrial Automation Component
General
| Article number |
3VA1063-3ED32-0AA0 |
Model
| product brand name |
SENTRON |
| product designation |
Molded case circuit breaker |
| design of the product |
Line protection |
| design of the overcurrent release |
TM210 |
| protection function of the overcurrent release |
LI |
| number of poles |
3 |
General technical data
| insulation voltage / rated value |
800 V |
| operating voltage / at DC / rated value |
500 V |
| operating voltage / at AC / rated value |
690 V |
| power loss [W] / maximum |
17.3 W |
| mechanical service life (operating cycles) / typical |
20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V |
9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V |
6 300 |
| ground-fault monitoring version |
Without |
product function
| ● communication function |
No |
| ● other measurement function |
No |
| Net Weight |
920 g |
operational current
| ● at 40 °C |
63 A |
| ● at 45 °C |
63 A |
| ● at 50 °C |
63 A |
| ● at 55 °C |
62 A |
| ● at 60 °C |
61 A |
| ● at 65 °C |
60 A |
| ● at 70 °C |
58 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker |
N |
maximum short-circuit current breaking capacity (Icu)
| ● at 240 V |
36 kA |
| ● at 415 V |
25 kA |
| ● at 440 V |
16 kA |
| ● at 500 V |
5 kA |
| ● at 690 V |
5 kA |
operating short-circuit current breaking capacity (Ics)
| ● at 240 V |
36 kA |
| ● at 415 V |
25 kA |
| ● at 440 V |
16 kA |
| ● at 500 V |
5 kA |
| ● at 690 V |
5 kA |
short-circuit current making capacity (Icm)
| ● at 240 V |
75.5 kA |
| ● at 415 V |
52.5 kA |
| ● at 440 V |
32 kA |
| ● at 500 V |
7.5 kA |
| ● at 690 V |
7.5 kA |
| design of short-circuit protection |
For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
Adjustable parameters
| product feature / for L-tripping / can be switched on/off |
No |
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic
| ● minimum |
63 A |
| ● maximum |
63 A |
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic
| ● minimum |
1 s |
| ● maximum |
1 s |
adjustable response value setting current (Ii) / for I-tripping
| ● minimum |
630 A |
| ● maximum |
630 A |
adjustable setting current (InN) / for N-tripping
| ● minimum |
0 A |
| ● maximum |
0 A |
| product function / grounding protection |
No |
product component
| ● undervoltage release |
No |
| ● voltage trigger |
No |
| ● trip indicator |
No |
| height [in] |
5.12 in |
| height |
130 mm |
| width [in] |
3 in |
| width |
76.2 mm |
| depth [in] |
2.76 in |
| depth |
70 mm |
Connections
| arrangement of electrical connectors / for main current circuit |
Front terminal |
| type of electrical connection / for main current circuit |
nut keeper kit on both ends |
| type of connectable conductor cross-sections / for flat-bar terminal connection / minimum |
12 x 1 mm |
| type of connectable conductor cross-sections / for flat-bar terminal connection / maximum |
17 x 6,5 mm |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) |
Silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) |
Tin |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts |
0 |
Accessories
| product extension / optional / motor drive |
No |
Environmental conditions
| protection class IP / on the front |
IP40 |
ambient temperature
| ● during operation / minimum |
-25 °C |
| ● during operation / maximum |
70 °C |
| ● during storage / minimum |
-40 °C |
| ● during storage / maximum |
80 °C |
Environmental footprint
| Environmental Product Declaration(EPD) |
Yes |
| global warming potential [CO2 eq] / total |
190 kg |
| global warming potential [CO2 eq] / during manufacturing |
4.67 kg |
| global warming potential [CO2 eq] / during operation |
186 kg |
| global warming potential [CO2 eq] / after end of life |
-0.826 kg |
| reference code / according to IEC 81346-2 |
Q |
General Product Approval
| CCC |
Yes |
| VDE |
Yes |
| Miscellaneous |
Yes |
| EAC |
Yes |
| EEQCO Scheme-X |
Yes |
| Confirmation |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
| RCM |
Yes |
Test Certificates
| Type Test Certificates/Test Report |
Yes |
| Special Test Certificate |
Yes |
| Miscellaneous |
Yes |
Maritime application
| ABS (American Bureau of Shipping) |
Yes |
| BV (Bureau Veritas) |
Yes |
| DNV (Det Norske Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| RMRS (Russian Maritime Register) |
Yes |
| CCS (China Classification Society) |
Yes |
other
| Miscellaneous |
Yes |
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Environment
| Environmental Confirmations |
Yes |
| EPD Typ II |
Yes |
| EPD Typ II/III (with life cylce assessment) |
Yes |
| Environmental Confirmations |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
Characteristic curves
https://curves.simaris.siemens.com/curves/
| last modified: |
4/18/2026 |
| Date8/1/2026 |
Subject to change without notice© Copyright Siemens 2026 |
