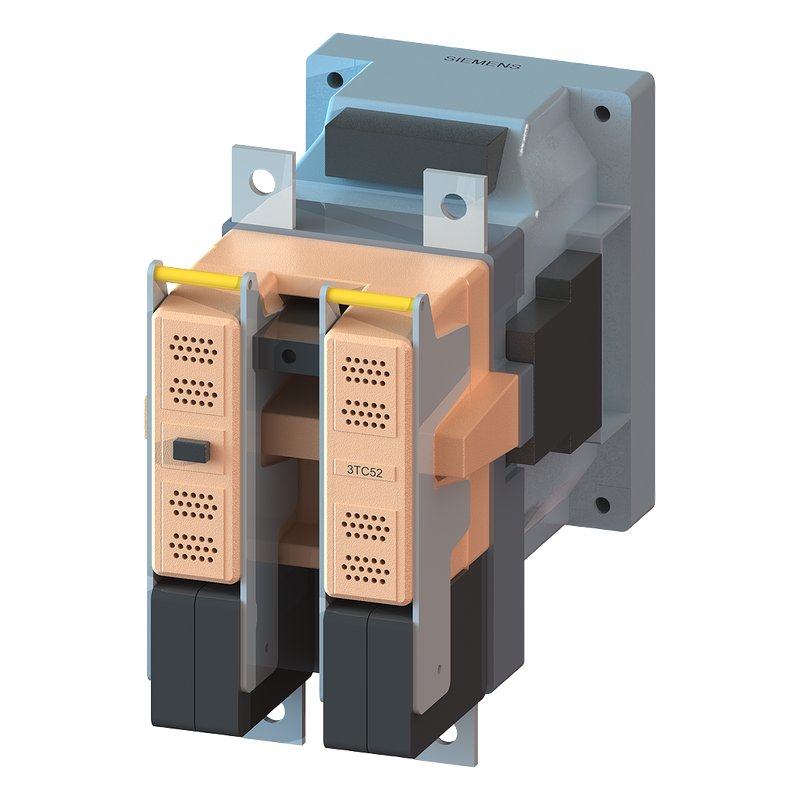

contactor, DC-3/DC-5, 220 A, 2-pole, 110 V DC, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 8
Product Type: Industrial Automation Component
General
| Article number |
3TC5217-0AF4 |
| product designation |
Contactor |
| product type designation |
3TC |
General technical data
product extension
| ● function module for communication |
No |
| ● auxiliary switch |
Yes |
| insulation voltage rated value |
1 000 V |
shock resistance at rectangular impulse
| ● at DC |
12 g / 5 ms, 5,5 g / 10 ms |
mechanical service life (operating cycles)
| ● of contactor typical |
10 000 000 |
| ● of the contactor with added auxiliary switch block typical |
10 000 000 |
| reference code according to IEC 81346-2 |
Q |
| Substance Prohibitance (day/month/year) |
03/01/2017 |
| SVHC substance name |
Lead CAS-No. 7439-92-1 |
| Net Weight |
9.734 kg |
ambient temperature
| ● during operation |
-25 ... +55 °C |
| ● during storage |
-50 ... +80 °C |
| relative humidity minimum |
10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum |
95 % |
Main circuit
| number of poles |
2 |
| number of poles for main current circuit |
2 |
| number of NO contacts for main contacts |
2 |
| number of NC contacts for main contacts |
0 |
| type of voltage |
DC |
● at 1 current path at DC-1
| — at 24 V rated value |
220 A |
| — at 110 V rated value |
220 A |
| — at 220 V rated value |
220 A |
● with 2 current paths in series at DC-1
| — at 24 V rated value |
220 A |
| — at 110 V rated value |
220 A |
| — at 220 V rated value |
220 A |
| — at 440 V rated value |
220 A |
| — at 600 V rated value |
220 A |
| — at 750 V rated value |
220 A |
● at DC-3 at DC-5
| — at 220 V rated value |
220 A |
| — at 600 V rated value |
220 A |
| — at 750 V rated value |
170 A |
| — at 110 V rated value |
20 kW |
| — at 220 V rated value |
41 kW |
| — at 440 V rated value |
82 kW |
| — at 600 V rated value |
110 kW |
| — at 750 V rated value |
110 kW |
● at 1 current path at DC-3 at DC-5
| — at 24 V rated value |
220 A |
| — at 110 V rated value |
220 A |
| — at 220 V rated value |
220 A |
● with 2 current paths in series at DC-3 at DC-5
| — at 24 V rated value |
220 A |
| — at 110 V rated value |
220 A |
| — at 220 V rated value |
220 A |
| — at 440 V rated value |
220 A |
| — at 600 V rated value |
220 A |
| — at 750 V rated value |
170 A |
● at DC-1
| — at 110 V rated value |
24 kW |
| — at 220 V rated value |
48 kW |
| — at 440 V rated value |
97 kW |
| — at 750 V rated value |
165 kW |
operating frequency
| ● at DC-1 maximum |
1 000 1/h |
| ● at DC-3 maximum |
600 1/h |
| ● at DC-5 maximum |
600 1/h |
Control circuit/ Control
| type of voltage of the control supply voltage |
DC |
| control supply voltage at DC rated value |
110 V |
| closing power of magnet coil at DC |
30 W |
| holding power of magnet coil at DC |
30 W |
| closing delay at DC |
120 ... 400 ms |
| opening delay at DC |
22 ... 35 ms |
| arcing time |
20 ... 30 ms |
Auxiliary circuit
| number of NC contacts for auxiliary contacts |
2 |
| ● instantaneous contact |
2 |
| number of NO contacts for auxiliary contacts |
2 |
| ● instantaneous contact |
2 |
| number of CO contacts for auxiliary contacts |
0 |
| identification number and letter for switching elements |
22 |
| operational current at AC-12 maximum |
10 A |
operational current at AC-15
| ● at 230 V rated value |
5.6 A |
| ● at 400 V rated value |
3.6 A |
| ● at 500 V rated value |
2.5 A |
operational current at DC-12
| ● at 24 V rated value |
10 A |
| ● at 48 V rated value |
10 A |
| ● at 60 V rated value |
10 A |
| ● at 110 V rated value |
8 A |
| ● at 125 V rated value |
6 A |
| ● at 220 V rated value |
2 A |
| ● at 600 V rated value |
0.4 A |
operational current at DC-13
| ● at 24 V rated value |
10 A |
| ● at 48 V rated value |
5 A |
| ● at 60 V rated value |
5 A |
| ● at 110 V rated value |
2.4 A |
| ● at 125 V rated value |
2.1 A |
| ● at 220 V rated value |
1.1 A |
| ● at 600 V rated value |
0.21 A |
UL/CSA ratings
| contact rating of auxiliary contacts according to UL |
A600 / P600 |
● for short-circuit protection of the main circuit
| — with type of coordination 1 required |
3NE1332-4D (400 A) (750 V, 6 kA) |
| — with type of coordination 2 required |
3NE1332-4D (400 A) (750 V, 6 kA) |
| ● for short-circuit protection of the auxiliary switch required |
gG: 16 A (500 V, 1 kA) |
Installation/ mounting/ dimensions
| mounting position |
+/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method side-by-side mounting |
Yes |
| fastening method |
screw fixing |
| height |
240 mm |
| width |
135 mm |
| depth |
236 mm |
● with side-by-side mounting
| — forwards |
20 mm |
| — backwards |
0 mm |
| — upwards |
10 mm |
| — downwards |
10 mm |
| — at the side |
10 mm |
● for grounded parts
| — forwards |
70 mm |
| — backwards |
0 mm |
| — upwards |
10 mm |
| — at the side |
10 mm |
| — downwards |
10 mm |
● for live parts
| — forwards |
70 mm |
| — backwards |
0 mm |
| — upwards |
10 mm |
| — downwards |
10 mm |
| — at the side |
10 mm |
Connections/ Terminals
| type of electrical connection |
screw terminal |
| ● for main current circuit |
screw-type terminals |
| ● for auxiliary and control circuit |
screw-type terminals |
● for auxiliary contacts
| — solid or stranded |
2x (1 ... 2.5 mm²) |
| — finely stranded with core end processing |
2x (0.75 ... 1.5 mm²) |
Safety related data
| product function mirror contact according to IEC 60947-4-1 |
Yes |
Electrical Safety
| protection class IP on the front according to IEC 60529 |
IP00; IP20 with box terminal/cover |
| touch protection on the front according to IEC 60529 |
finger-safe, for vertical contact from the front with cover |
Environment
| Environmental Confirmations |
Yes |
General Product Approval
| CCC |
Yes |
| cULus |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
Functional Saftey
| Type Examination Certificate |
Yes |
Test Certificates
| Miscellaneous |
Yes |
| Special Test Certificate |
Yes |
| Type Test Certificates/Test Report |
Yes |
other
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Railway
Dangerous goods
| Transport Information |
Yes |
Characteristic curves
https://curves.simaris.siemens.com/curves/
| last modified: |
4/4/2026 |
| Date7/20/2026 |
Subject to change without notice© Copyright Siemens 2026 |
