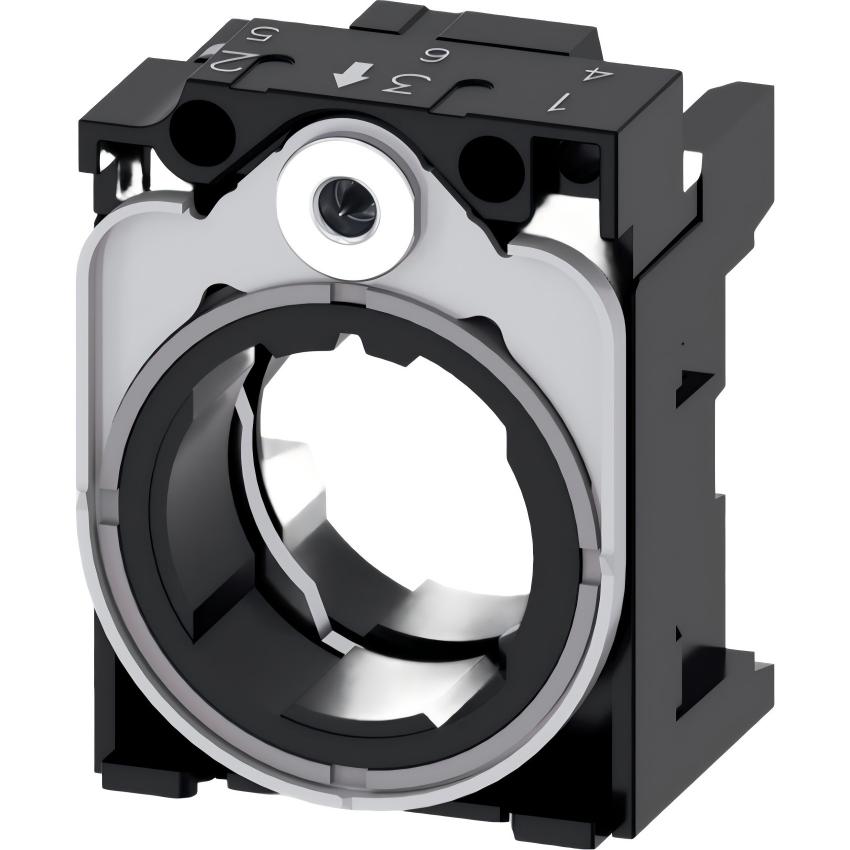

holder, universal, 3-fold, plastic/metal, minimum order quantity 5 or a multiple thereof
Product Type: Industrial Automation Component
General
| Article number |
3SU1550-0AA10-0AA0 |
| product brand name |
SIRIUS ACT |
| product designation |
Holders |
| design of the product |
holder, universal for plastic/metal |
| product type designation |
3SU1 |
Actuator
| design of the actuating element |
3-way without module |
| number of modules attachable |
6 |
| number of contact modules |
0 |
Holder
| material of the holder |
Plastic |
Display
General technical data
| product function positive opening |
No |
product component
| ● diode |
No |
| ● lamp transformer |
No |
| ● light source |
No |
| ● series resistor |
No |
| insulation voltage rated value |
500 V |
| degree of pollution |
3 |
| surge voltage resistance rated value |
6 kV |
shock resistance
| ● according to IEC 60068-2-27 |
sinusoidal half-wave 15 g / 11 ms |
| ● for railway applications according to EN 61373 |
Category 1, Class B |
vibration resistance
| ● according to IEC 60068-2-6 |
10 ... 500 Hz: 5 g |
| ● for railway applications according to EN 61373 |
Category 1, Class B |
| reference code according to IEC 81346-2 |
U |
| Substance Prohibitance (day/month/year) |
10/01/2014 |
| Net Weight |
21.6 g |
Auxiliary circuit
| number of NC contacts for auxiliary contacts |
0 |
| number of NO contacts for auxiliary contacts |
0 |
Connections/ Terminals
| tightening torque of the screws in the bracket |
1 ... 1.2 N·m |
tightening torque
| ● for grounding |
0.8 ... 1 N·m |
ambient temperature
| ● during operation |
-25 ... +70 °C |
| ● during storage |
-40 ... +80 °C |
| environmental category during operation according to IEC 60721 |
3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |
Installation/ mounting/ dimensions
| fastening method |
without |
| ● of modules and accessories |
Front plate mounting |
| height |
40 mm |
| width |
30 mm |
| shape of the installation opening |
round |
| mounting diameter |
22.5 mm |
| installation width |
30 mm |
| installation depth |
30.1 mm |
| thickness of the front plate usable |
1 ... 6 mm |
Environmental footprint
| Environmental Product Declaration(EPD) |
Yes |
| global warming potential [CO2 eq] total |
0.593 kg |
| global warming potential [CO2 eq] during manufacturing |
0.625 kg |
| global warming potential [CO2 eq] during operation |
0.235 kg |
| global warming potential [CO2 eq] after end of life |
-0.267 kg |
| Siemens eco profile (SEP) |
Siemens EcoTech |
Environmental Product Declaration
| ● global warming potential [CO2 eq] / during manufacturing |
0.625 kg |
| ● global warming potential [CO2 eq] / during operation |
0.235 kg |
| ● global warming potential [CO2 eq] / after end of life |
-0.267 kg |
| ● global warming potential [CO2 eq] / total |
0.593 kg |
Environment
| Environmental Confirmations |
Yes |
| Siemens EcoTech Profile (SEP) |
Yes |
| EPD Typ II/III (with life cylce assessment) |
Yes |
General Product Approval
| cULus |
Yes |
| EAC |
Yes |
| EU declaration of conformity |
Yes |
| UK Declaration of Conformity |
Yes |
Test Certificates
| Type Test Certificates/Test Report |
Yes |
Maritime application
| BV (Bureau Veritas) |
Yes |
| LR (Lloyds Register) |
Yes |
| PRS (Polski Register of Shipping) |
Yes |
| RINA (Registro Italiano Navale) |
Yes |
other
| Confirmation |
Yes |
| Chinese Quality Checkmark |
Yes |
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
https://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SU1550-0AA10-0AA0&lang=en
| last modified: |
7/4/2026 |
| Date7/14/2026 |
Subject to change without notice© Copyright Siemens 2026 |
