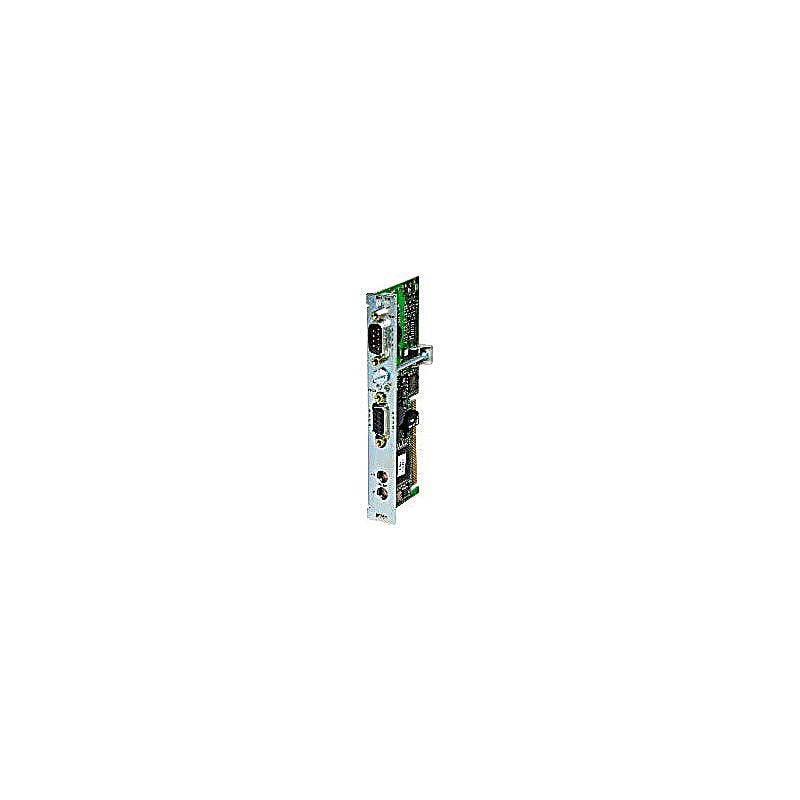

B&R 3IF761-9 | Industrial Automation Component

SKU: 3IF761-9
(3)
$1,203.05
-37% $1,916.91 $1,203.05
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: To Confirm

Profibus DP slave connection RS232 can be configured as an online interface aPCI interface module, 1 PROFIBUS DP interface, electrically isolated and network-capable, 1 RS232 interface.

Technical Specifications

Short description

  • Communication module = 1x RS232, 1x PROFIBUS DP V0 slave

General information

  • Diagnostics
  • Data transfer = Yes, using LED status indicators
  • Power consumption
  • 3.3 VDC = 0.15 W
  • 5 VDC = 1.2 W
  • Total = 1.35 W
  • Electrical isolation
  • IF1 - IF2 = Yes
  • PLC - IF1 = No
  • PLC - IF2 = Yes
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • HazLoc = cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD
  • KC = Yes
  • Status indicators = Transmit/Receive data per interface

Interfaces

  • Interface IF1
  • Signal = RS232
  • Execution = 9-pin male DSUB connector
  • Max. distance = 900 m
  • Transfer rate = Max. 115.2 kbit/s
  • Interface IF2
  • Fieldbus = PROFIBUS DP V0 slave
  • Execution = 9-pin female DSUB connector
  • Max. distance = 1200 m
  • Transfer rate = Max. 12 Mbit/s

Operating conditions

  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation = 0 to 60°C
  • Storage = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing

Mechanical properties

  • Slot = Slot, e.g. in the CP360
