B&R 3AM051-6 | Industrial Automation Component

SKU: 3AM051-6
(5)
$1,736.40
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: To Confirm

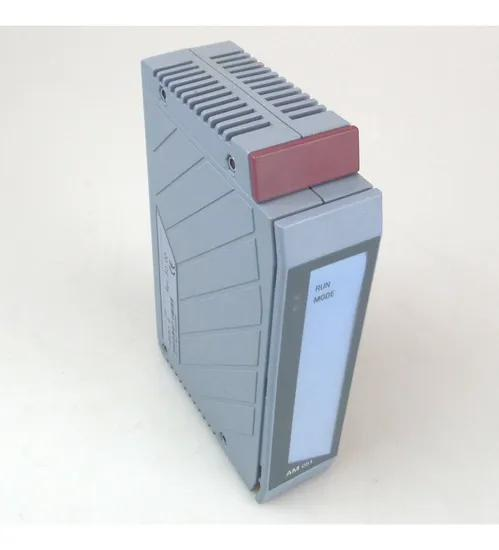

2005 analog mixed module, 4 inputs, 0 to 20 mA, 12-bit, 4 outputs, 0 to 20 mA, 12-bit, order 1x terminal block TB170 separately!.

Technical Specifications

Short description

  • I/O module = 4 analog inputs, 4 analog outputs

General information

  • Diagnostics
  • Module status = Yes, using software
  • Converter = Yes, using LED status indicator
  • Power consumption
  • 24 VDC = 5.0 W
  • 5 VDC = 1.5 W
  • Total = 6.5 W
  • Electrical isolation
  • Channel - Channel = No
  • Channel - PLC = Yes
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • UL = cULus E115267 Industrial control equipment
  • Status indicators = Converter function, start pulse for software timing

Analog inputs

  • Input = 0 to 20 mA
  • Input type = Differential input
  • Digital converter resolution = 12-bit
  • Conversion time = <1 ms for inputs and outputs <1.5 ms with enabled averaging
  • Output format = INT
  • Load = 50 Ω
  • Operating modes = Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms)
  • Basic accuracy = ±0.1% at 25°C

Analog outputs

  • Output = 0 to 20 mA
  • Digital converter resolution = 12-bit
  • Conversion time = <1 ms for inputs and outputs <1.5 ms with enabled averaging
  • Switch on/off behavior = Internal enable relay for startup and errors
  • Output protection = Short-circuit proof
  • Operating modes = Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms)
  • Basic accuracy = Max. ±0.15% at 25°C

Operating conditions

  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation = 0 to 60°C
  • Storage = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 95%

Mechanical properties

  • Dimensions
  • Width = System 2005 single-width
  • Can be installed on
  • Base unit = Yes
  • Expansion unit = Yes
  • Note = Order 1x terminal block TB170 separately.
