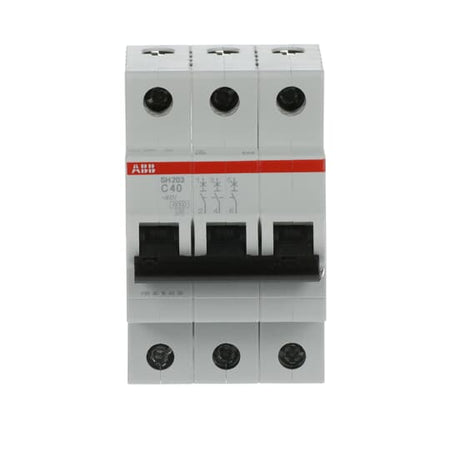

ABB SH203-C40 Miniature Circuit Breaker - Industrial Automation Part
ABB SH203-C40 Miniature Circuit Breaker - Industrial Automation Part

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB SH203-B40 | 3-Pole MCB 40A Type B

SKU: 2CDS213001R0404
(0)
$46.00
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB SH200

ABB SH30-B40

Miniature Circuit Breaker | 3-Pole | 40A | Type B | 6 kA

SKU: 2CDS213001R0404

Key Ratings at a Glance

Rated Current
40 A
Poles
3P (3-Pole)
Tripping Char.
Type B
Breaking Capacity
6 kA
Rated Voltage
400 V AC
Frequency
50 / 60 Hz
Mounting
DIN Rail
Standard
IEC/EN 60898-1

The ABB SH30-B40 is a 3-pole miniature circuit breaker from the System pro M compact SH200 range. It features Type B tripping characteristic (trips at 3-5× In — suitable for resistive loads and generator protection). With a rated current of 40A and breaking capacity of 6 kA, this MCB provides reliable overload and short-circuit protection for residential, commercial, and industrial electrical installations. The current-limiting design ensures fast breaking time (2.3–2.5 ms) and Class 3 energy limitation for maximum safety.

Technical Specifications

Product Code 2CDS213001R0404
Model SH30-B40
Product Range SH200
Number of Poles 3P
Tripping Characteristic Type B (trips at 3-5× In — suitable for resistive loads and generator protection)
Rated Current (In) 40 A
Rated Operational Voltage 400 V AC
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Short-Circuit Capacity 6 kA at 230/400 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 20 kA @ 230V, 10 kA @ 400V
Rated Frequency 50 / 60 Hz
Energy Limiting Class 3
Electrical Endurance 20,000 AC cycles
Mechanical Endurance 20,000 cycles
Terminal Type Screw / Failsafe Bi-directional Cylinder-lift
Connecting Capacity - Rigid 0.75 – 35 mm²
Connecting Capacity - Flexible 0.75 – 25 mm²
Connecting Capacity - Busbar 10 / 10 mm²
Tightening Torque 2.8 N·m
Width 52.5 mm (3 × 17.5 mm)
Height 88 mm
Depth 69 mm
Mounting DIN Rail TH35-7.5 / TH35-15 (IEC 60715)
Degree of Protection IP20 (IP40 with cover)
Ambient Temperature (Operation) -25°C to +55°C
Ambient Temperature (Storage) -40°C to +70°C
Pollution Degree 2
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

Applications & Features

⚡ Applications

  • Residential electrical distribution
  • Commercial building power systems
  • Industrial control panels & machinery
  • Electrical infrastructure protection
  • DIN-rail modular installations
  • Overload & short-circuit protection

✓ Key Features

  • Current-limiting design (Class 3)
  • Dual tripping: thermal + electromechanical
  • Fast breaking time (2.3–2.5 ms)
  • Finger-safe terminals (IP20/IP40)
  • Bottom-mount auxiliary contacts (50% space saving)
  • Red ON / Green OFF contact indication

Compliance & Approvals

Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
RoHS: Compliant with EU Directive 2011/65/EU and Amendment 2015/863
REACH: Compliant
CE Marking: Yes
UL Listed: Yes (Supplemental Protector, UL File #E76126)
CSA Certified: Yes (CSA C22.2 #235)
Degree of Protection: IP20 (IP40 with enclosure cover)

Original ABB product • Supplied with manufacturer warranty • SHLY-PLC Authorized Distributor

Frequently Asked Questions

Q: What is the warranty for ABB SH203-B40?

A: This miniature circuit breaker comes with manufacturer warranty. Contact us for specific warranty terms.

Q: How fast can you ship SH203-B40?

A: Orders placed before 14:00 ship same day. Standard delivery: 5-8 business days worldwide. Express available.

Q: Is SH203-B40 compatible with ABB systems?

A: Yes, SH203-B40 is designed for full compatibility with ABB ecosystem. Contact our technical team for integration support.

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Economy shipping takes 5–8 business days, while express delivery arrives in 5–8 business days, both subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
★★★★★
