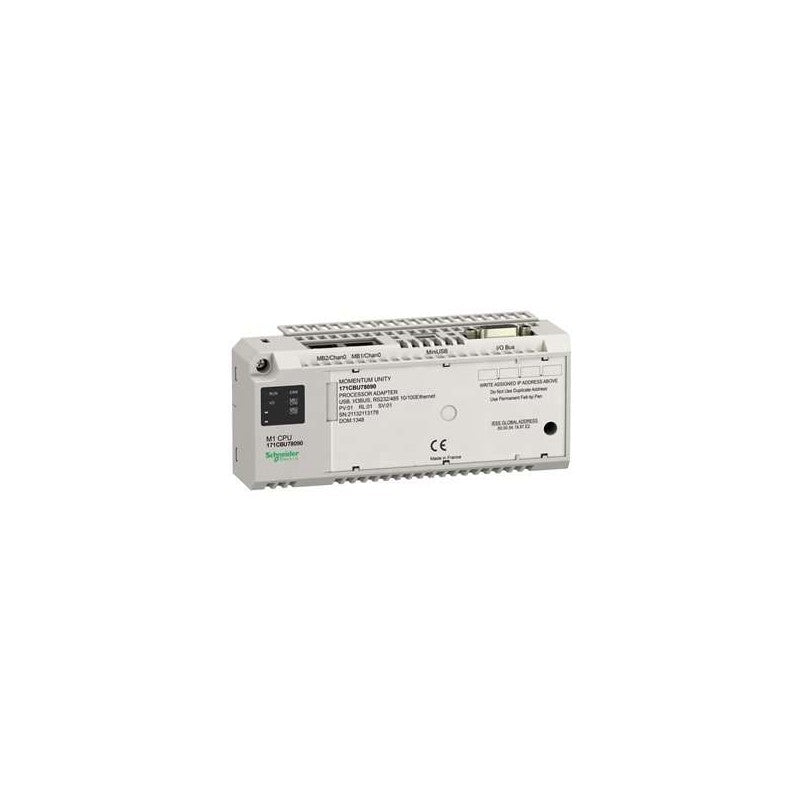

Schneider Electric 171CBU78090 | Controller & CPU Module

171CBU78090 Schneider Electric - Unity M1 Processor. Modicon Momentum Unity M1 processor with RS232/RS485 and USB ports, designed for distributed control architecture in industrial automation.

• Brand: Schneider Electric
• Category: PLC Processor
• Series: Modicon Momentum
• Product Type: Unity M1 Processor
• Communication: Modbus RS485/RS232 (RJ45), USB
• Communication Speed: 19,200 bps (Modbus)
• Method of Access: Master/slave
• Program Memory (IEC): 3,584 kB
• Program Memory (LL984): 3,584 kB
• Register Words: 26,048
• I/O Capacity: 2,048 inputs / 2,048 outputs
• Instruction Time: 83 ns per 1K instruction
• Supply Voltage: 5 V DC (4.75-5.25 V)
• Current Consumption: 500 mA at 5V DC
• Mounting: DIN Rail (35 mm)
• Dimensions: 144 x 53.47 x 60.6 mm
• Weight: 0.159 kg
• Operating Temperature: 0 to 60 C
• IP Rating: IP20
• Certifications: CE, FM, C-Tick, UL 508, CSA, IEC 61131-2
• Web Services: CPU status, home pages, properties

Ideal for distributed I/O control in infrastructure, energy, material handling, and simple machine control applications.
