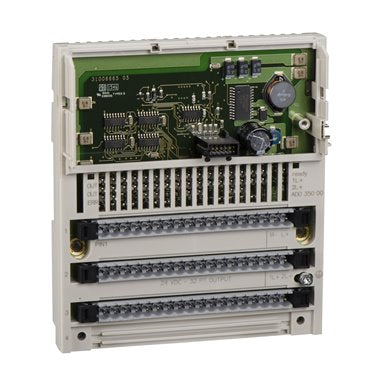

170ADO34000 Schneider - industrial automation part - image 1
170ADO34000 Schneider - industrial automation part - image 1

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric 170ADO34000 | Industrial Automation Component

SKU: 170ADO34000
(2)
$125.00
-13% $143.75 $125.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

170ADO34000 Schneider Electric - Schneider Electric 170ADO34000 Discrete Output Module. The Schneider Electric 170ADO34000 is a discrete output base module for the Modicon Momentum automation platform. It provides 16 solid-state outputs organized in 2 groups of 8, with a rated output voltage of 24V DC and a maximum current of 0.5A per channel. Outputs are electronically protected against short circuits. The module features 16 LEDs for channel status indication and 500V AC isolation between channels and the bus.

  • Brand: Schneider Electric
  • Category: I/O Modules
  • Product Type: Discrete Output Base DC
  • Series: Modicon Momentum
  • Discrete Outputs: 16 solid state
  • Group of Channels: 2 groups of 8 outputs
  • Output Voltage: 24V DC
  • Current Per Channel: 0.5A max
  • Current Per Group: 4A
  • Current Per Module: 8A
  • Leakage Current: < 1mA at 24V DC
  • Surge Current: 5A for 1ms
  • Voltage Drop: < 0.5V at 0.5A
  • Short Circuit Protection: Outputs electronically protected
  • Response Time: 0.1ms state 0 to 1, 0.1ms state 1 to 0
  • Isolation: 500V AC between channels and bus
  • Power Dissipation: 3.5W typical, 4.5W maximum
  • Current Consumption: 250mA at 24V DC
  • Channel Status Indication: 16 LEDs
  • Marking: CE
  • Operating Temperature: 0 to 60 degrees C
  • Dimensions: 125 x 141.5 x 47.5 mm
  • Weight: 0.21kg
  • Compliance: RoHS Compliant
  • Warranty: 18 months

Used in Modicon Momentum automation systems for driving discrete loads such as solenoid valves, contactors, and indicators in industrial control applications.
