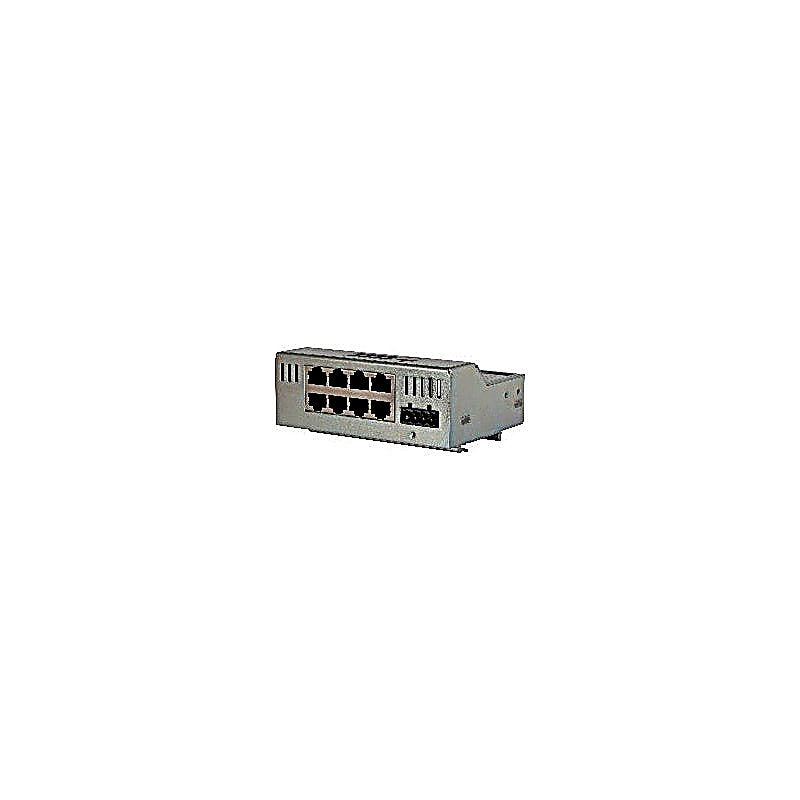

B&R 0AC808-9-1 | Industrial Automation Component

SKU: 0AC808-9-1
(1)
$1,194.34
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Accessories > Infrastructure components

8-port industrial hub (layer 2), 24 VDC, 10/100 Mbit/s with autonegotiation, automatic MDIX, order terminal block TB704 separately!.

Technical Specifications

General information

  • Diagnostics
  • Bus function = Yes, using LED status indicator
  • Hub power supply = Yes, using LED status indicator
  • LED name
  • Network activity = RX (orange)
  • Link/Collision = L/C (Link = Green, Collision = Red)
  • Supply voltage = OK (orange)
  • Certifications
  • CE = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • UL = cULus E115267 Industrial control equipment
  • LR = ENV1
  • Status indicators = Network activity for each channel, link/collision for each channel, supply voltage
  • Type = 8-port industrial hub (layer 2)

Interfaces

  • Transfer
  • Physical layer = 10BASE-T/100BASE-TX
  • Half-duplex = Yes
  • Full-duplex = No
  • Autonegotiation = Yes
  • Auto-MDI/MDIX = Yes
  • Signal = Ethernet
  • Variant = Shielded RJ45
  • Line length = Max. 100 m between 2 stations (segment length)
  • Transfer rate = 10/100 Mbit/s
  • Hub propagation delay = 0.64 to 0.68 µs

Power supply unit

  • Input voltage range = 18 to 30 VDC
  • Current consumption = Max. 150 mA
  • Power consumption = Max. 3 W
  • Variant = Switched-mode power supply with reverse polarity protection diode, no overvoltage protection

Electrical properties

  • Electrical isolation = Ports isolated from each other, ground and power supply. Power supply and ground isolated.

Operating conditions

  • Mounting orientation
  • Face-up = Yes
  • Vertical = Yes
  • Installation elevation above sea level = Max. 2000 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Face-up = -25 to 60°C
  • Vertical = -25 to 60°C
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Dimensions
  • Width = 115 mm
  • Height = 43 mm (51 mm with top-hat rail)
  • Depth = 86 mm
  • Note = Order 1x terminal block TB704 separately.
  • Installation = Top-hat rail installation, top-hat rail adapter is included in delivery.
