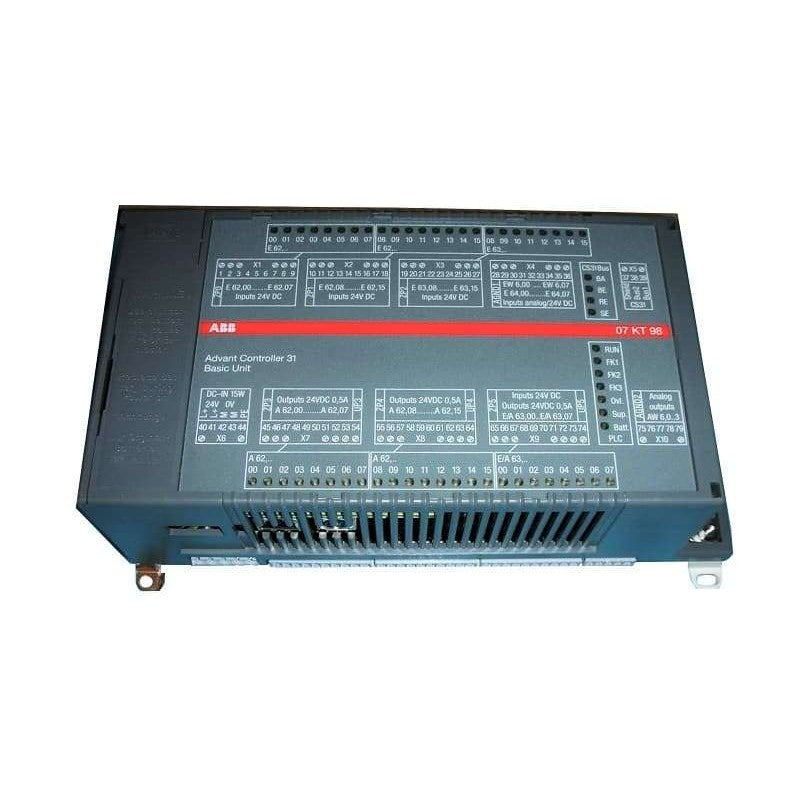

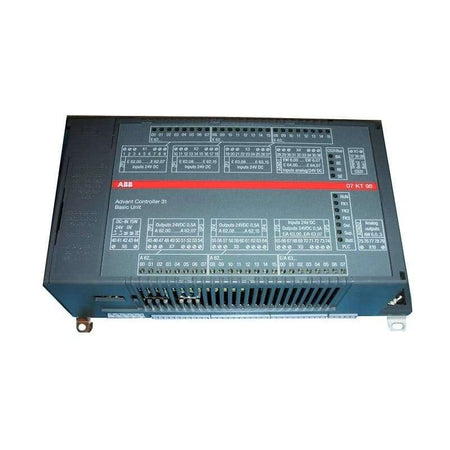

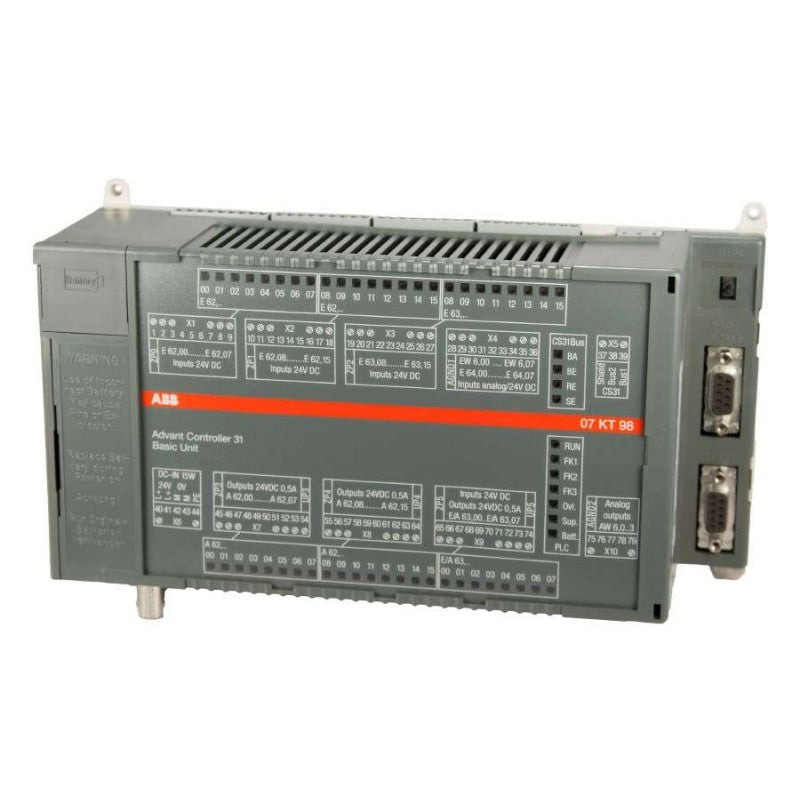

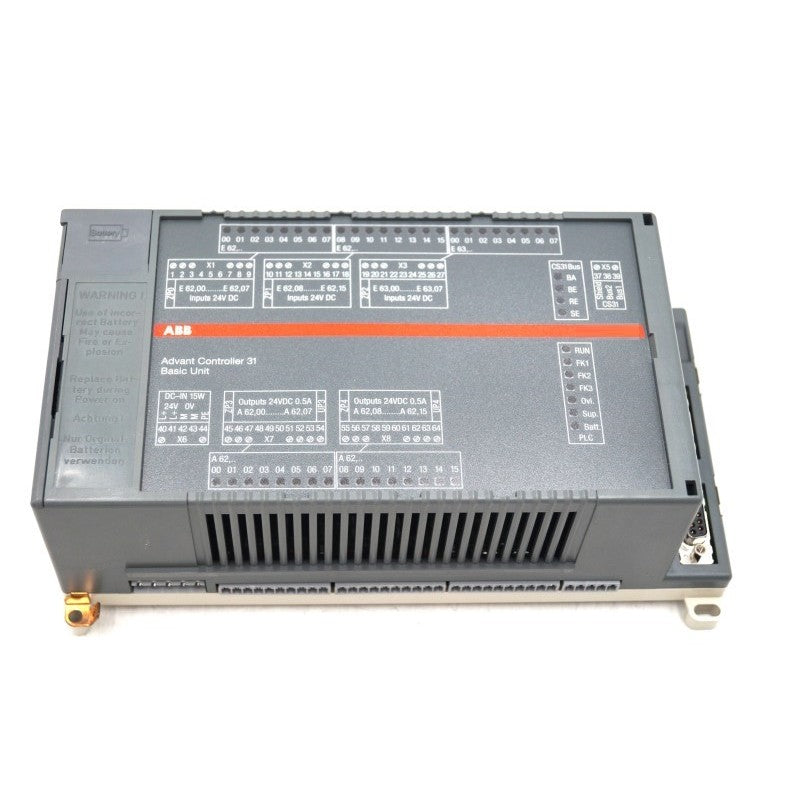

ABB 07KT98 AC31 series PLC basic module. Features 24 digital inputs, 16 digital outputs, 8 analog inputs, 4 analog outputs, 2 high-speed counters, and CS31 system bus interface. Programmable via Automation Builder software.
| Brand | ABB |
| SKU | 07KT98 |
| Product Category | PLC & DCS Module |
| Manufacturer | ABB |
| Product Type | PLC Module |
| Series | AC31 / Advant Controller 31 |
| Type Designation | 07KT98 |
| Digital Inputs | 24 (24V DC) |
| Digital Outputs | 16 (transistor, 24V DC) |
| Digital I/O Configurable | 8 |
| Analog Inputs | 8 (0-10V, ±10V, 0-20mA, 4-20mA, Pt100) |
| Analog Outputs | 4 (±10V, 0-20mA, 4-20mA) |
| Hardware Counters | 2 (up to 50 kHz) |
| Serial Interfaces | 2 (RS232, Modbus) |
| CS31 Bus Interface | 1 |
| Supply Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A |
| Memory | Flash EPROM 1MB program + 128KB data |
| Processing Speed | 0.07 ms / 1000 instructions |
| Programming Software | AC1131 / Automation Builder |
| Real-time Clock | Yes |
| Terminal Type | Screw terminals, pluggable |
| Operating Temperature | 0°C ... +55°C |
| Weight | 1.62 kg |
